Part Number # 14W47
SKU # 2232032
14W47

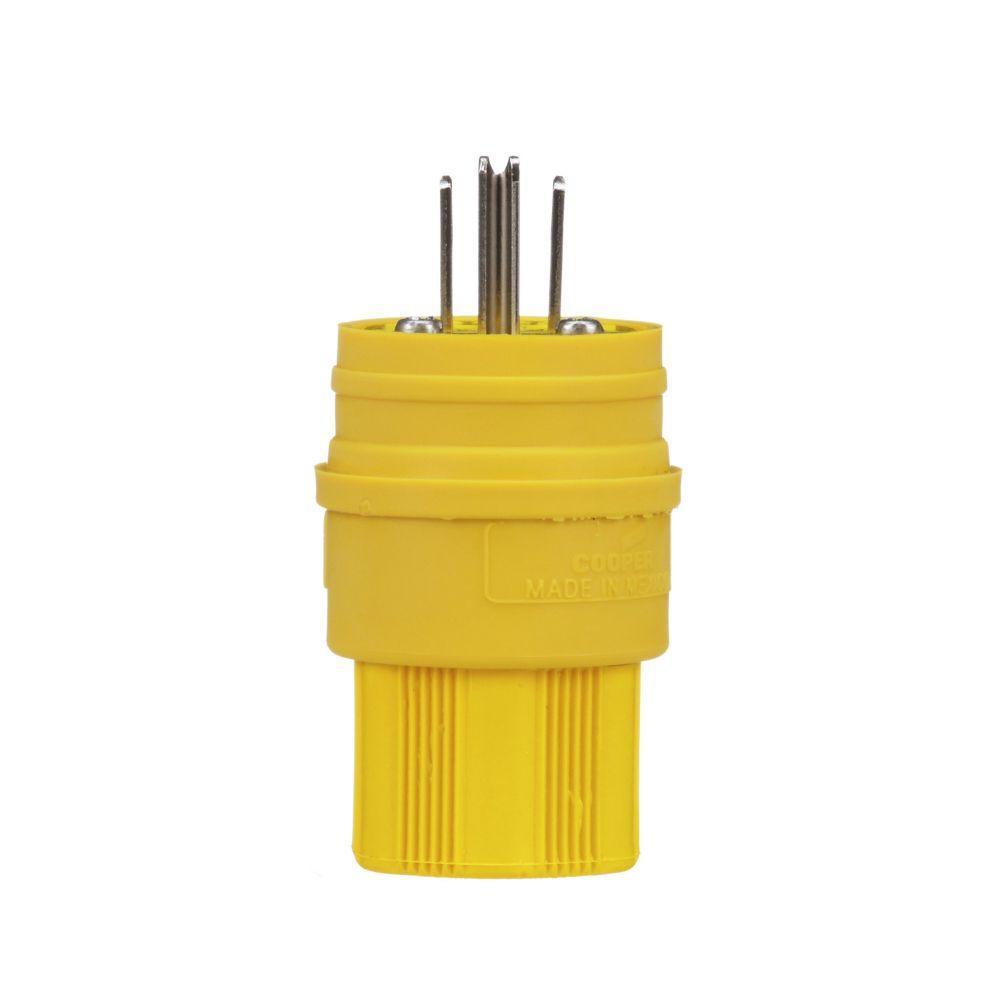

Arrowhart 14W47 Devices Straight Blade Plug
Part Number # 14W47
SKU # 2232032
Arrowhart 14W47 Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 14W47 |
| SKU #: | 2232032 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.3 to 0.65, 0.3 to 0.65 in |
| Dimensions: | 1.81 in Dia x 3.44 in H |
| NEMA Rating: | NEMA 5-15P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Threaded |
| Type: | Grounding Watertight |
| Country of origin: | MX |
| Material: | Santoprene TPE/Thermoplastic, Santoprene™ TPE, Santoprene™ TPE/Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00040893630953 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart 14W47 Devices Straight Blade Plug
Brand: Arrowhart
Part Number: 14W47
EATON Arrow Hart Straight Blade Plug, Grounding Watertight, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial Grade, 0.3 to 0.65 in Diameter Cord, -40 to 75 deg C, Threaded Terminal, Santoprene TPE/Thermoplastic, Yellow, 1.81 in Dia x 3.44 in H Dimensions
Additional Description: AHWD-14W47 Plug WT 15A 125V 2P3W Str YL
Catalog Description: Eaton Arrow Hart watertight straight blade plug,#18-10 AWG,15A,Industrial,125V,Back wire,Yellow,Nickel-plated brass,IP67,Santoprene thermoplastic elastomer,5-15P,Two-pole,three-wire,grounding,Screw,0.30-0.65" in diameter,Thermoplastic,Bulk
14W47 Application
Elastomeric Devices, Industrial Facilities and Factories Facility Applications14W47 Item Features
- Santoprene elastomeric exterior provides superior performance in complex environments
- Nickel plated blades, contacts and terminal screws provide corrosion-resistance
- Glass reinforced nylon interior provides strength and durability
- Integrated connector closure cap provides watertight protection when not in use
- Clear terminal cover allows for easy inspection of conductors and terminations
- Neoprene grommet ensures watertight seal at cord entrance
- Neoprene gasket seals around cord for added terminal protection from external elements
- Rugged high-strength construction
- Unique internal clamp design secures cord during assembly, reducing installation time
- 18 to 10 AWG wire
- https://www.youtube.com/watch?v=excGsJitwBc
14W47 Standards
cULus ListedSKU #2232032Part Number #14W47UNSPSC39121402UPC00040893630953
Image provided may only be a representation of final product and may include optional equipment
