Brand: Arrowhart
270B

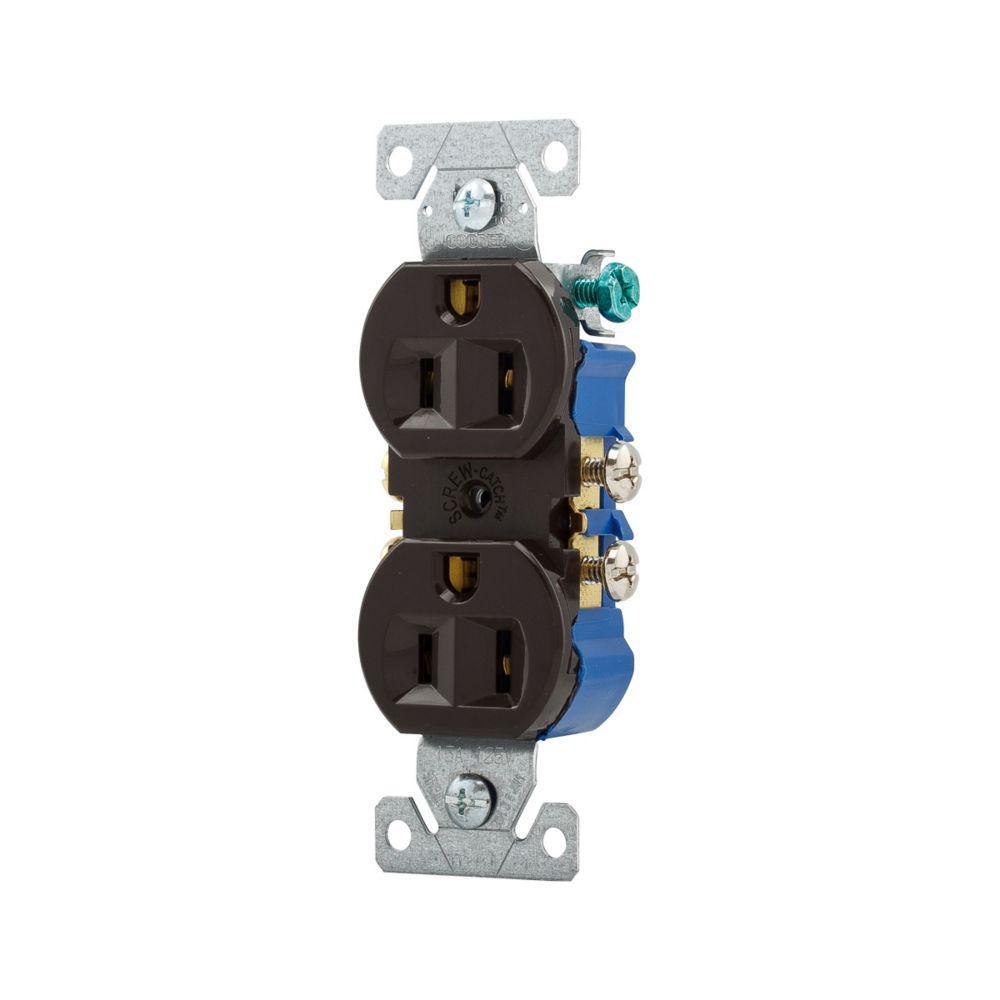

Arrowhart 270B Straight Blade Receptacle
Part Number # 270B
SKU # 966782
$220.00 / 100Each
Arrowhart 270B Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 270B |
| SKU #: | 966782 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 4.19 in H x 1.31 in W x 0.69 in D |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -20 to 60, -20 to 60 deg C |
| Terminal Type: | Push Wired/Side/Screw, Push-In/Screw, Side and Push-In Wired |
| Type: | Duplex |
| Color: | Brown |
| Country of origin: | US |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664190803 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$220.00 / 100Each
Quantity:
- EATON Wiring Devices Straight Blade Receptacle, Duplex, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential/Standard Grade, -20 to 60 deg C, Push-In/Screw Terminal, Thermoplastic, Brown, 4.19 in H x 1.31 in W x 0.69 in D Dimensions
270B Application
Residential Applications270B Item Features
- Tamper-resistant receptacles provide compliance with 2014 NEC Article 406.11 that states that all receptacles installed in dwelling units must be tamper-resistant
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Longer, wider bridged strap provides 40% more contact area with wallboard, virtually eliminating floating installations
- Patented built-in wire stripper for 14 and 12 AWG wire to speed installation
- Push-in terminals accept #14 AWG solid wire for quick installation
- Patented built-in wire looper for pre-looping
- High impact-resistant thermoplastic face and back body eliminates breakage
- Double wipe ground contacts ensure long term ground retention
- Easy access split circuit break-off tab
- Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
- Side wire terminals accept up to 10 AWG solid wire
- Flush mounting
- https://www.youtube.com/watch?v=wVyZtLMLREA
270B Standards
UL,NOM,Federal Specification Classification 6233 01,NAFTA,RoHS CompliantSKU #966782Part Number #270BUNSPSC39121406UPC00032664190803
