271W-BOX

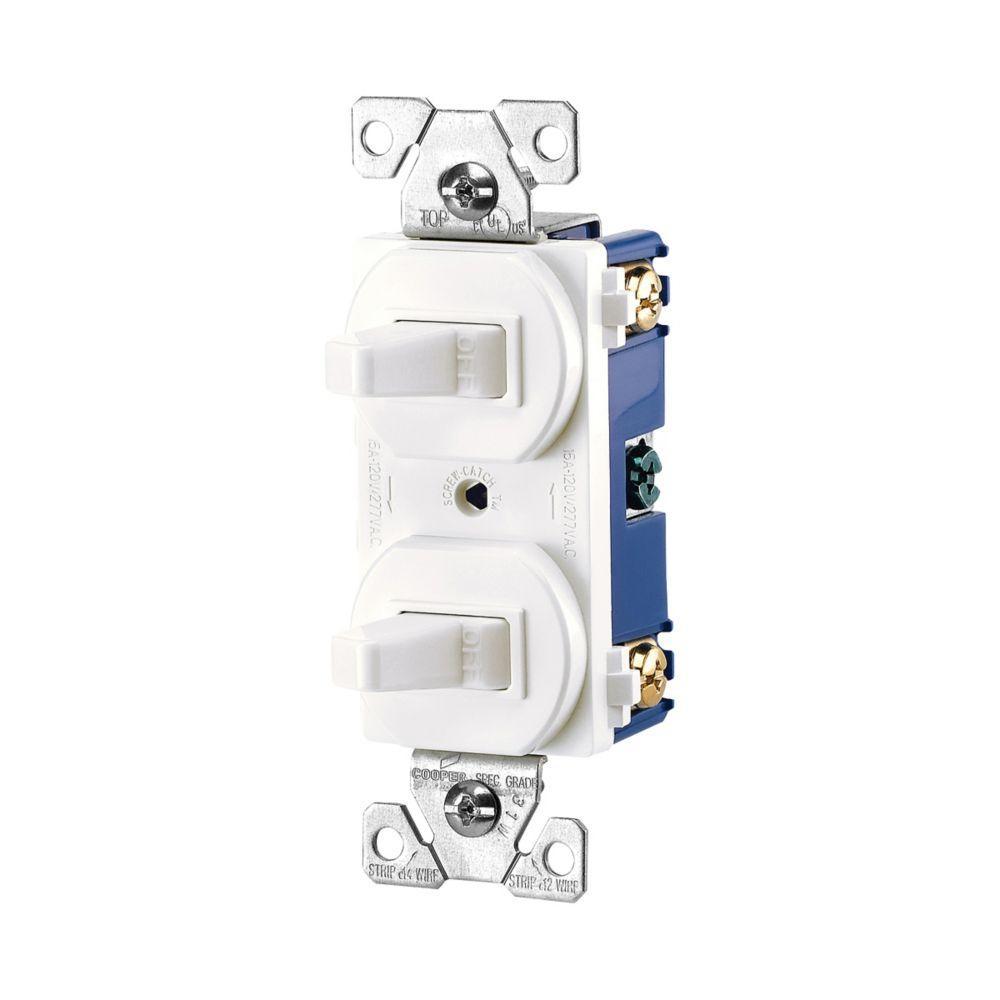

Arrowhart 271W-BOX Devices AC Toggle Combination Switch
Part Number # 271W-BOX
SKU # 2306007
Arrowhart 271W-BOX Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 271W-BOX |
| SKU #: | 2306007 |
| Electrical Ratings: | 15 A at 120 VAC |
| Environmental Conditions: | -20 to 60 deg C Operating Temperature, -20 to 60 deg C Operating Temperature, UL94 V-2 Flammability |
| Mounting: | Surface |
| Number of Poles: | 1 |
| Operating Cycles: | 30000 |
| Size: | 4.19 in H x 1.3 in W x 1.08 in D, 4.19 in H x 1.37 in W x 0.88 in D |
| Type: | Duplex |
| Color: | White |
| Country of origin: | CN |
| Material: | Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122232 |
| UPC: | 00032664750311 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart 271W-BOX Devices AC Toggle Combination Switch
Brand: Arrowhart
Part Number: 271W-BOX
EATON Arrow Hart Eaton Wiring Devices AC Toggle Combination Switch, Duplex, 15 A at 120 VAC Electrical Rating, 1 Pole, Surface Mounting, 4.19 in H x 1.37 in W x 0.88 in D Size, 30000 Operating Cycles, Environmental Conditions: -20 to 60 deg C Operating Temperature, Thermoplastic, White
Additional Description: AHWD-271W-BOX Switch Duplex Comb SP/SP 15A 120V WH
Catalog Description: Eaton commercial grade combination switch, Stand, #14 - #12 AWG, 15A, Commer, 120/277V, bk and sd wiring, togg, Maint closure, Screw, Brass, wht, -20-60?C, (2) 1-pole, dplx, thermoplas
271W-BOX Application
Commercial and Non-Residential Applications271W-BOX Item Features
- Back and Side wire connection
- Grounding terminal screw standard
- Receptacles have triple wire line contacts and double wipe ground contacts to insure long term plug retention
- THK steel mounting strap zinc plated for corrosion-resistance
- Break-off provision for wiring both devices on same circuit or on separate circuits
- Terminal screws are backed out and ready for wiring to enhance ease of installation
- Side wire terminals accept up to 10 AWG solid or stranded wire
- Pilot light may be wired to indicate power On or power Off
- Combination slot Phillips head mounting and terminal screws ease installation
- Screw connection
- Heavy duty brass contact
- Toggle actuator
- Switch action
- Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
- Mounting straps are zinc plated to for added corrosion-resistance
271W-BOX Standards
UL 20|UL File No. E18704|cULus Listed|CSA C22.2 File No. 10016|CSA File No. 6241-05|CSA File No. 111|CSA File No. 42|NOM 426 CertifiedSKU #2306007Part Number #271W-BOXUNSPSC39122232UPC00032664750311
