Part Number # 4731N
SKU # 2284863
4731N

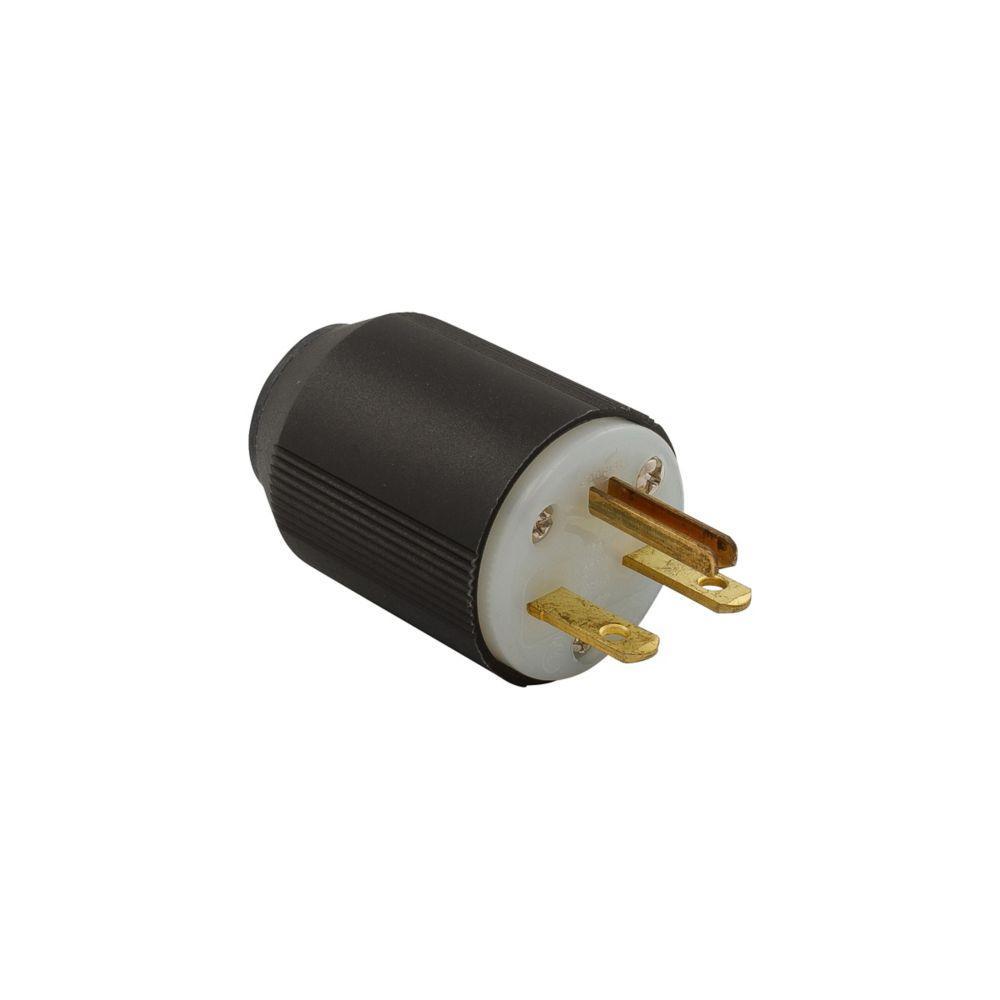

Arrowhart 4731N Devices Locking Connector
Part Number # 4731N
SKU # 2284863
Arrowhart 4731N Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 4731N |
| SKU #: | 2284863 |
| Cord Diameter: | 0.25 to 0.656, 0.25 to 0.656 in |
| Dimensions: | 1.52 in Dia |
| NEMA Rating: | NEMA L5-15 |
| Terminal Type: | Side Wired/Screw |
| Type: | Grounding Straight |
| UNSPSC: | 39121403 |
| UPC: | 00040893679204 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart 4731N Devices Locking Connector
Brand: Arrowhart
Part Number: 4731N
EATON Arrow Hart Hart-Lock AutoGrip Eaton Wiring Devices Locking Connector, Grounding Straight, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15 NEMA Rating, Industrial/Specification Grade, 0.25 to 0.656 in Diameter Cord, -40 to 75 deg C, Side Wire/Screw Terminal, Phenolic, Black/White, 1.52 in Dia Dimensions
Additional Description: AHWD-4731N Conn 15A 125V 2P3W H/L AutoGrip BW
Catalog Description: Eaton auto grip locking connector, #16-12 AWG, 15A, Industrial, 125V, Back wiring, Black, white, Auto grip, L5-15, Two-pole, Three-wire, Nylon, 0.33 to 0.66 in
4731N Application
For locking device applications4731N Item Features
- Nylon dead front construction
- Back-wire dead front design
- Neoprene gasket seals cord hole from dust and debris
- Automatic cord grip assembly saves wiring time
- Back-wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Phenolic outer shell/interior body, polycarbonate terminal retainer
- Auto grip straight body
- 16 to 12 AWG wire
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
4731N Standards
CSA certified,cULus Listed,NOM,RoHS Compliant,Federal Specifications Classification W-C375SKU #2284863Part Number #4731NUNSPSC39121403UPC00040893679204
Image provided may only be a representation of final product and may include optional equipment
