Part Number # 5262V
SKU # 2219144
Image provided may only be a representation of
final product and may include optional equipment
5262V

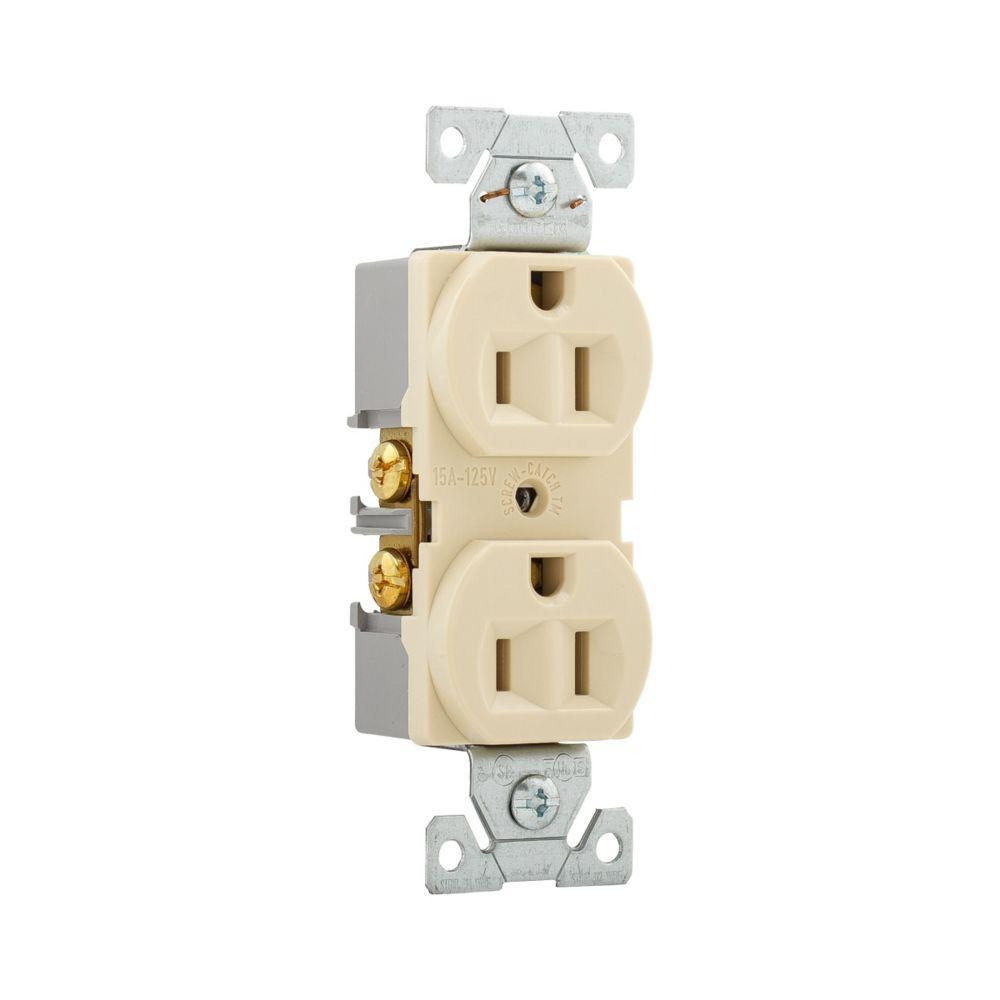

Arrowhart 5262V Devices Straight Blade Receptacle
Part Number # 5262V
SKU # 2219144
Arrowhart 5262V Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 5262V |
| SKU #: | 2219144 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 4.19 in H x 1.3 in W x 0.87 in D |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -4 to 158, -4 to 158 deg F |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | Duplex Tamper/Weather-Resistant |
| Country of origin: | US |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664704338 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart 5262V Devices Straight Blade Receptacle
Brand: Arrowhart
Part Number: 5262V
EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Duplex Tamper/Weather-Resistant, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Construction Grade, -4 to 158 deg F, Screw Terminal, Nylon, Ivory, 4.19 in H x 1.3 in W x 0.87 in D Dimensions
Additional Description: AHWD-5262V Recp Dup 15A125V 2P3W Const Grade B&S IV
Catalog Description: Eaton Arrow Hart heavy-duty industrial specification grade duplex receptacle, #14-10 AWG, 15A, Industrial, Flush, 125V, Back and side, Ivory, Brass, High-impact nylon face, 5-15R, Duplex, Screw, Glass-filled nylon
5262V Application
Non-Residential Applications5262V Item Features
- High impact-resistant thermoplastic mounting strap for long lasting durable installation
- Convenient built-in 10 and 12 AWG wire strippers
- All terminal and mounting screws Triple-combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Extra long/wide mounting strap maintains assembly security and helps reach oversize cut-outs
- Nylon insulation
- Wall mount
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
5262V Standards
NOM,Federal Specification Classification 6233 01,UL,RoHS Compliant,NAFTASKU #2219144Part Number #5262VUNSPSC39121406UPC00032664704338
