Part Number # 5266
SKU # 2310702
Image Disclaimers Message
Brand: Arrowhart
5266

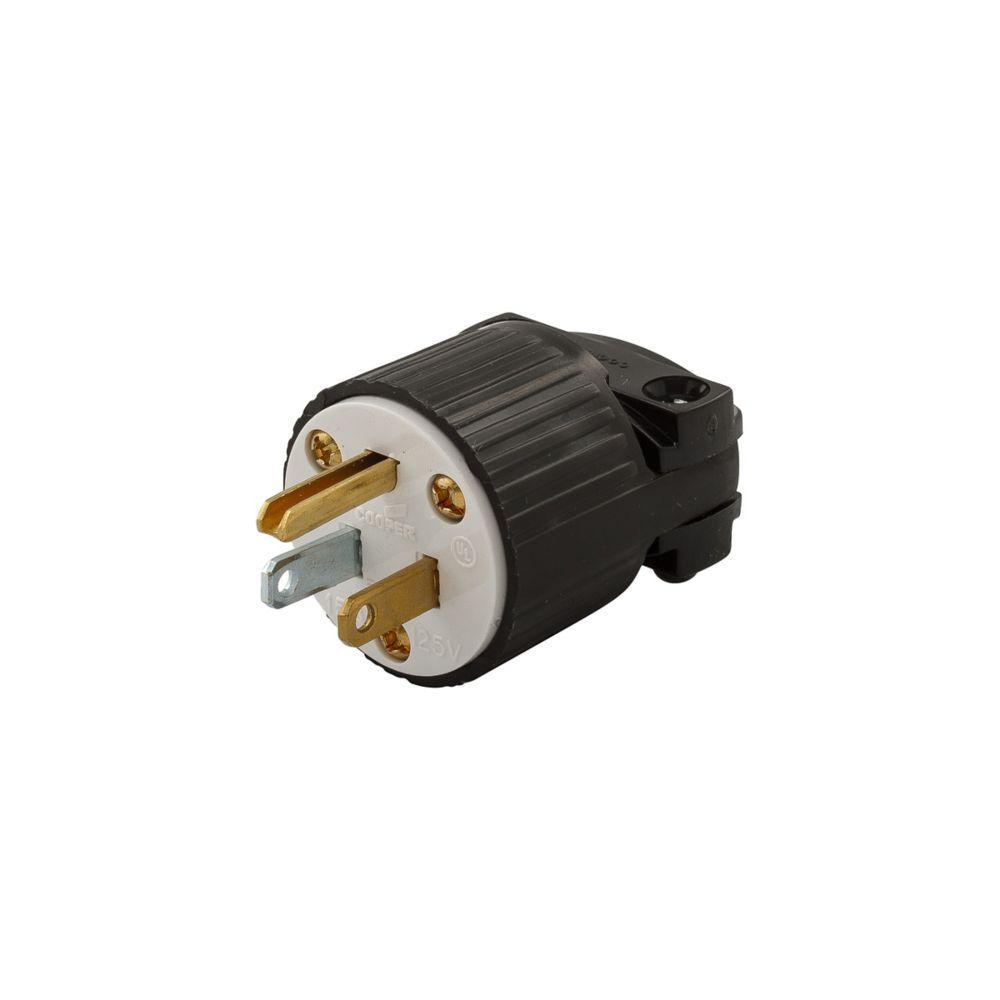

Arrowhart 5266 Wiring Devices Arrow Hartã¢Â⢠Straight Blade Plug
Part Number # 5266
SKU # 2310702
$410.40 / 15Each
Arrowhart 5266 Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 5266 |
| SKU #: | 2310702 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.25 to 0.69, 0.25 to 0.69 in |
| Dimensions: | 1.54 in Dia x 1.71 in L, 6.25 in H x 1.38 in W x 1.38 in D |
| NEMA Rating: | NEMA 5-15P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back Wired/Screw, Screw, Threaded |
| Type: | Grounding Ultra Grip |
| Color: | Black/White |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00032664393709 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$410.40 / 15Each
Quantity:
- EATON Wiring Devices Straight Blade Plug, Grounding Ultra Grip, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Commercial Grade, 0.25 to 0.69 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Polycarbonate, Black/White, 6.25 in H x 1.38 in W x 1.38 in D Dimensions
5266 Specifications
- High impact resistant thermoplastic housings with easy-grip grooves
- Assembly screws are speed-threaded and captive, reducing installation time
- Solid brass plug blades are firmly embedded in body
- See-through terminal cover allows inspection of connections
- Terminals in individual chambers to positively insulate conductors
- Clearly marked rating, Nema configuration and standard compliances (third-party listing) on face of device
- Terminal screws backed out - ready for wiring
- Angle plugs have eight possible positions for maximum convenience
- Combination slot/Phillips head mounting and terminal screws ease installation with power screwdrivers
5266 Item Features
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
5266 Standards
UL 498|UL File No. E3663|Federal Specification WC-596|CSA C22.2 File No. 42|CSA C22.2 File No. 2081|CSA C22.2 File No. 6221-02|NOM Certified|UL 94 V-2 Flammability RatingSKU #2310702Part Number #5266UNSPSC39121402UPC00032664393709
