Part Number # 5266AN
SKU # 2424745
5266AN

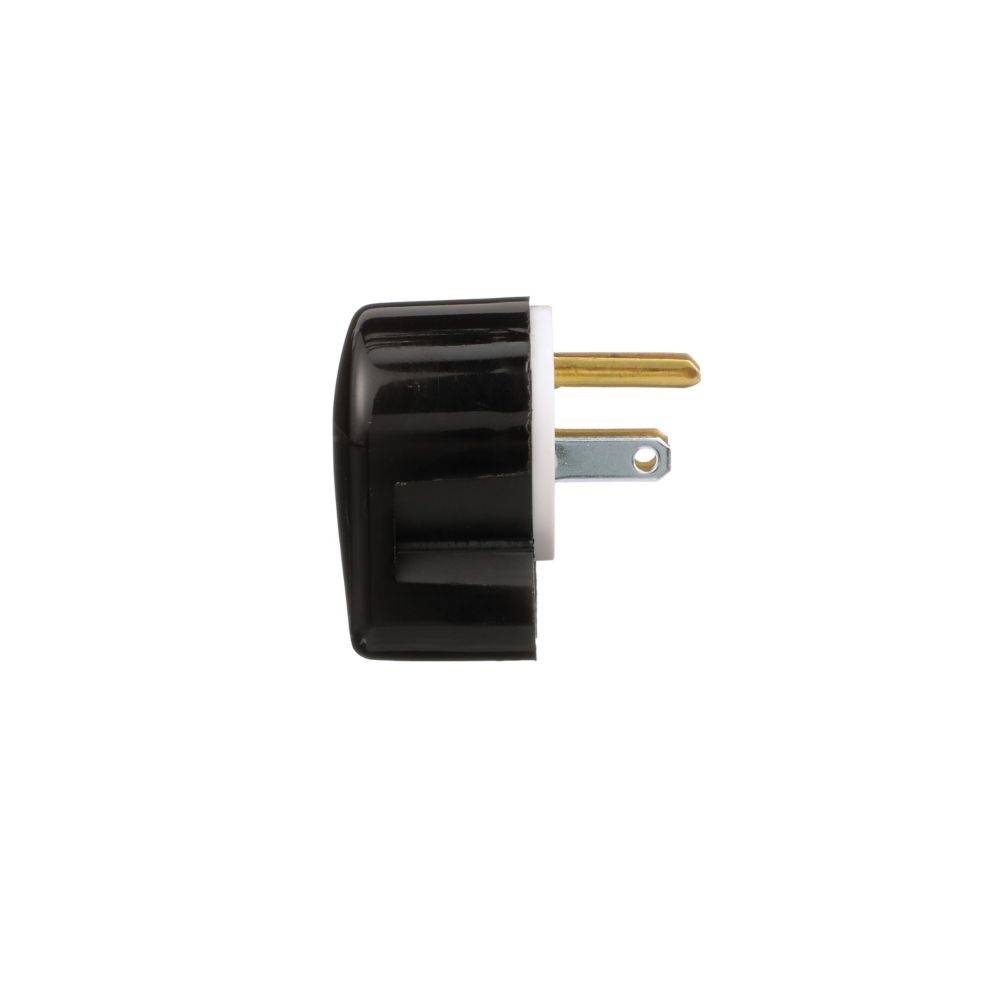

Arrowhart 5266AN Autogrip Wiring Devices Ultra Grip Straight Blade Plug
Part Number # 5266AN
SKU # 2424745
Arrowhart 5266AN Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 5266AN |
| SKU #: | 2424745 |
| Amperage Rating: | 15 A |
| Cord Diameter: | 0.25 to 0.69 in |
| Dimensions: | 1.42 in L x 1.25 in W x 1.95 in D |
| NEMA Rating: | NEMA 5-15P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Back Wire/Screw |
| Type: | Angled Grounding |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00032664519512 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart 5266AN Autogrip Wiring Devices Ultra Grip Straight Blade Plug
Brand: Arrowhart
Part Number: 5266AN
Eaton Wiring Devices Arrow Hart™ Straight Blade Plug, Angled, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15P, Industrial Grade, 0.25 to 0.69 in Cord Dia, -40 to 75 deg C, Threaded Terminal, Polycarbonate, Black/White, 1.42 in L x 1.25 in W x 1.95 in H
Additional Description: AHWD-5266AN Plug Angle 15A 125V 2P3W Str Poly BW
Catalog Description: Eaton Arrow Hart ultra grip straight blade angled plug, #18-12 AWG, 15A, Industrial, 125V, Back wire, Black and white, Brass, Nylon, 5-15P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
5266AN Item Features
- Quick drive stainless steel assembly screws provide corrosion-resistance and speed installation time
- Broad selection of flanged inlets accept 12 to 4 AWG conductors
- Angled plug versions have 4 possible positions for maximum convenience
- Neoprene gasket seals around cord for added terminal protection from external elements
- Rugged high strength construction
- Unique internal clamp design secures cord during assembly, reducing installation time
- 18 to 12 AWG wire
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
5266AN Standards
NOM,Federal Specification Classification 6221 02,ULSKU #2424745Part Number #5266ANUNSPSC39121402UPC00032664519512
Image provided may only be a representation of final product and may include optional equipment
