Part Number # 5361B
SKU # 2213975
Image Disclaimers Message
5361B

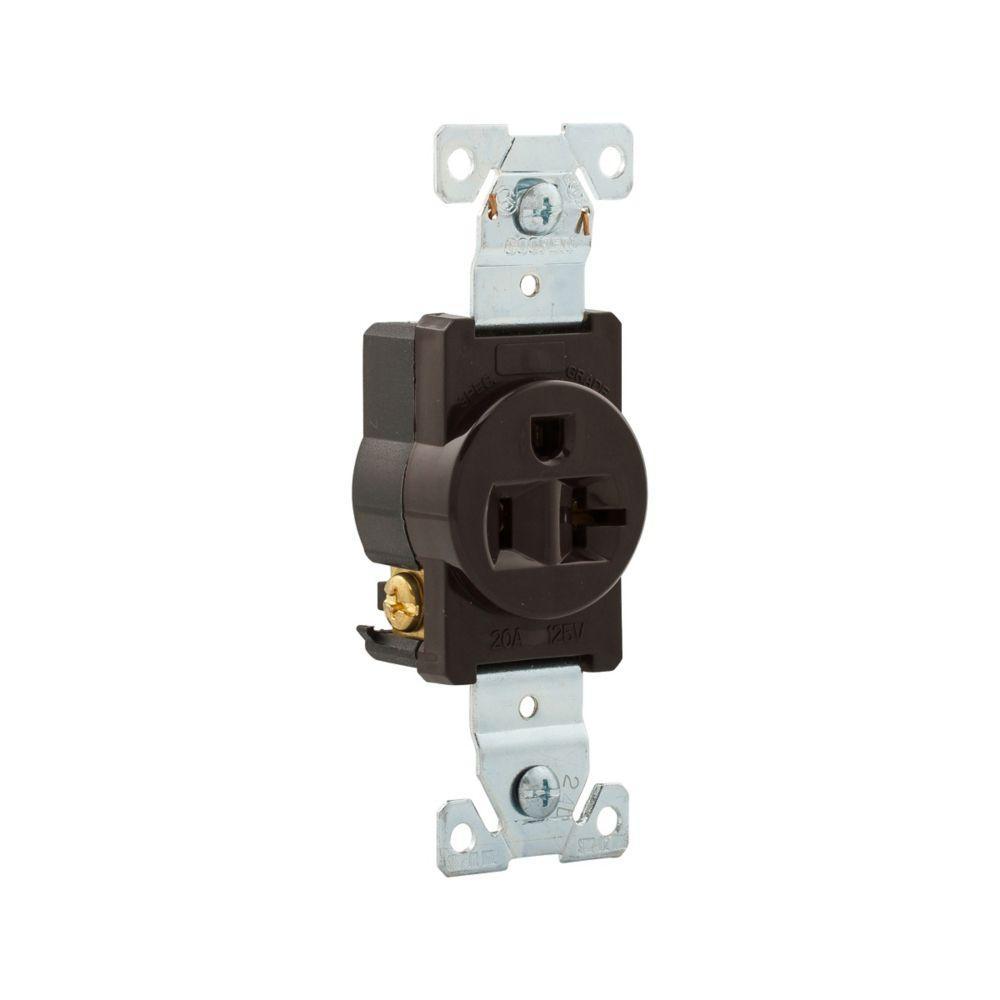

Arrowhart 5361B Devices Straight Blade Receptacle
Part Number # 5361B
SKU # 2213975
$1574.00 / 50Each
Arrowhart 5361B Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 5361B |
| SKU #: | 2213975 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 4.03 in H x 1.3 in W x 0.76 in D |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -4 to 158, -4 to 158 deg F |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | Premium Single |
| Color: | Brown |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664381904 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1574.00 / 50Each
Quantity:
- EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Premium Single, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, -4 to 158 deg F, Screw Terminal, Nylon, Brown, 4.03 in H x 1.3 in W x 0.76 in D Dimensions
5361B Application
Industrial Receptacle Applications5361B Item Features
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws Triple-combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Long, broad mounting strap helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- Impact-resistant thermoplastic insulation
- Flush mounting
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
5361B Standards
UL 498|UL File No. E15058|cULus Listed|Federal Specification W-C-596G|CSA C22.2 File No. 42|CSA File No. 6914|CSA File No. 6233 01|NOM 426 Certified|NAFTA Compliant|UL 94 V-2 Flammability RatedSKU #2213975Part Number #5361BUNSPSC39121406UPC00032664381904
