Brand: Arrowhart
5362GY

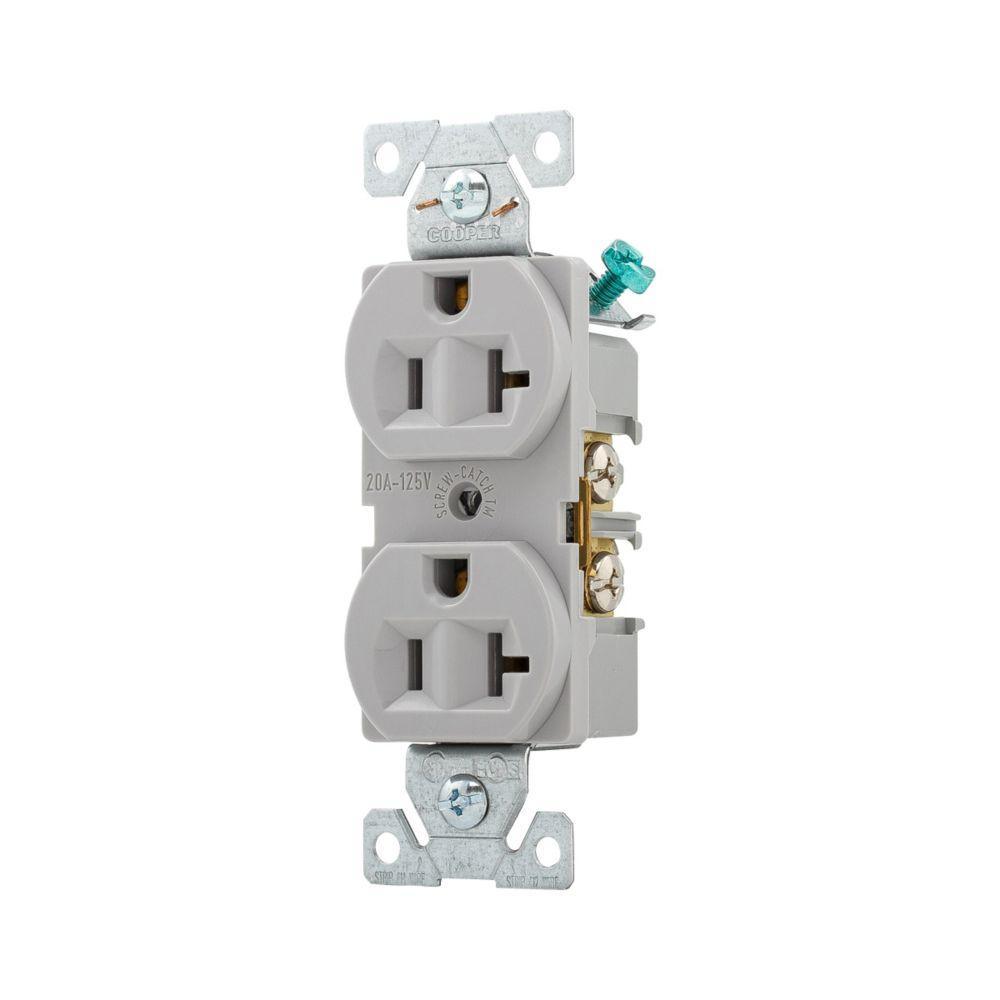

Arrowhart 5362GY Devices Straight Blade Receptacle
Part Number # 5362GY
SKU # 2348920
$545.50 / 50Each
Arrowhart 5362GY Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 5362GY |
| SKU #: | 2348920 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 4.19 in H x 1.32 in W x 0.88 in D |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -4 to 158, -4 to 158 deg F |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | Duplex |
| Color: | Gray |
| Country of origin: | US |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664704413 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$545.50 / 50Each
Quantity:
- EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Duplex, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Construction Grade, -4 to 158 deg F, Screw Terminal, Nylon, Gray, 4.19 in H x 1.32 in W x 0.88 in D Dimensions
5362GY Application
Non-Residential Applications5362GY Item Features
- High impact-resistant thermoplastic mounting strap for long lasting durable installation
- Convenient built-in 10 and 12 AWG wire strippers
- All terminal and mounting screws Triple-combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Extra long/wide mounting strap maintains assembly security and helps reach oversize cut-outs
- Nylon insulation
- Wall mount
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
5362GY Standards
UL 498|UL File No. E15058|cULus Listed|Federal Specification W-C-596G|CSA C22.2 File No. 42|CSA File No. 6914|CSA File No. 6233 01|NOM 426 Certified|NAFTA Compliant|UL 94 V-2 Flammability RatedSKU #2348920Part Number #5362GYUNSPSC39121406UPC00032664704413
