Part Number # 5366AN
SKU # 2284878
Image Disclaimers Message
Brand: Arrowhart
5366AN

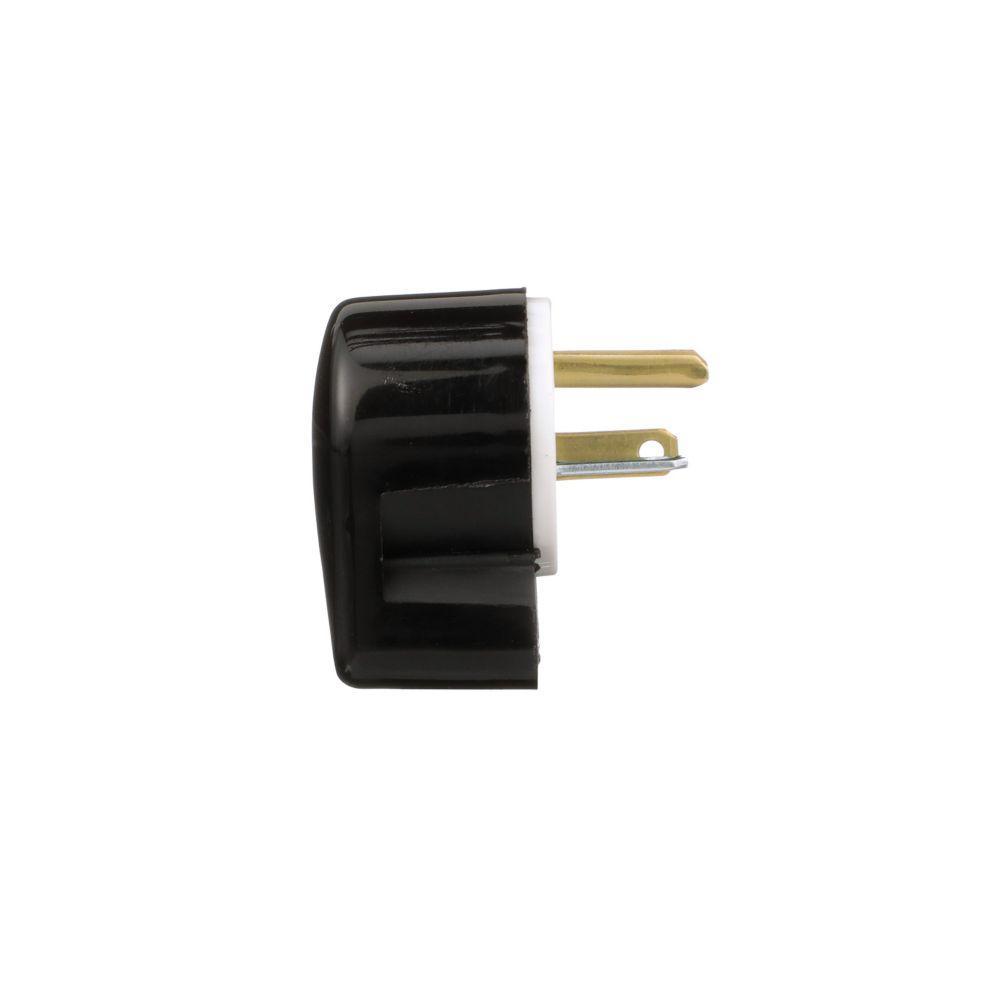

Arrowhart 5366AN Devices Straight Blade Plug
Part Number # 5366AN
SKU # 2284878
$938.20 / 20Each
Arrowhart 5366AN Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 5366AN |
| SKU #: | 2284878 |
| Amperage Rating: | 20, 20 A |
| Cord Diameter: | 0.25 to 0.69, 0.33 to 0.66 in |
| Dimensions: | 1.51 in Dia, 4.5 in W x 7.5 in D x 1.51 in H |
| NEMA Rating: | NEMA 5-20P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back Wire/Screw, Threaded |
| Type: | Angled Duplex Grounding, Angled Grounding |
| Color: | Black/White |
| Country of origin: | MX |
| Material: | Polycarbonate |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00032664519529 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$938.20 / 20Each
Quantity:
- EATON Arrow Hart AutoGrip Eaton Wiring Devices Ultra Grip Straight Blade Plug, Angled Grounding, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20P NEMA Rating, Extra Heavy Duty/Industrial/Specification Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Back Wire/Screw Terminal, Polycarbonate, Black/White, 4.5 in W x 7.5 in D x 1.51 in H Dimensions
5366AN Item Features
- Quick drive stainless steel assembly screws provide corrosion-resistance and speed installation time
- Broad selection of flanged inlets accept 12 to 4 AWG conductors
- Angled plug versions have 4 possible positions for maximum convenience
- Neoprene gasket seals around cord for added terminal protection from external elements
- Rugged high strength construction
- Unique internal clamp design secures cord during assembly, reducing installation time
- 18 to 12 AWG wire
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
5366AN Standards
Federal Specification Classification 6221 02,NOM,ULSKU #2284878Part Number #5366ANUNSPSC39121402UPC00032664519529
