Part Number # 5469N
SKU # 1611

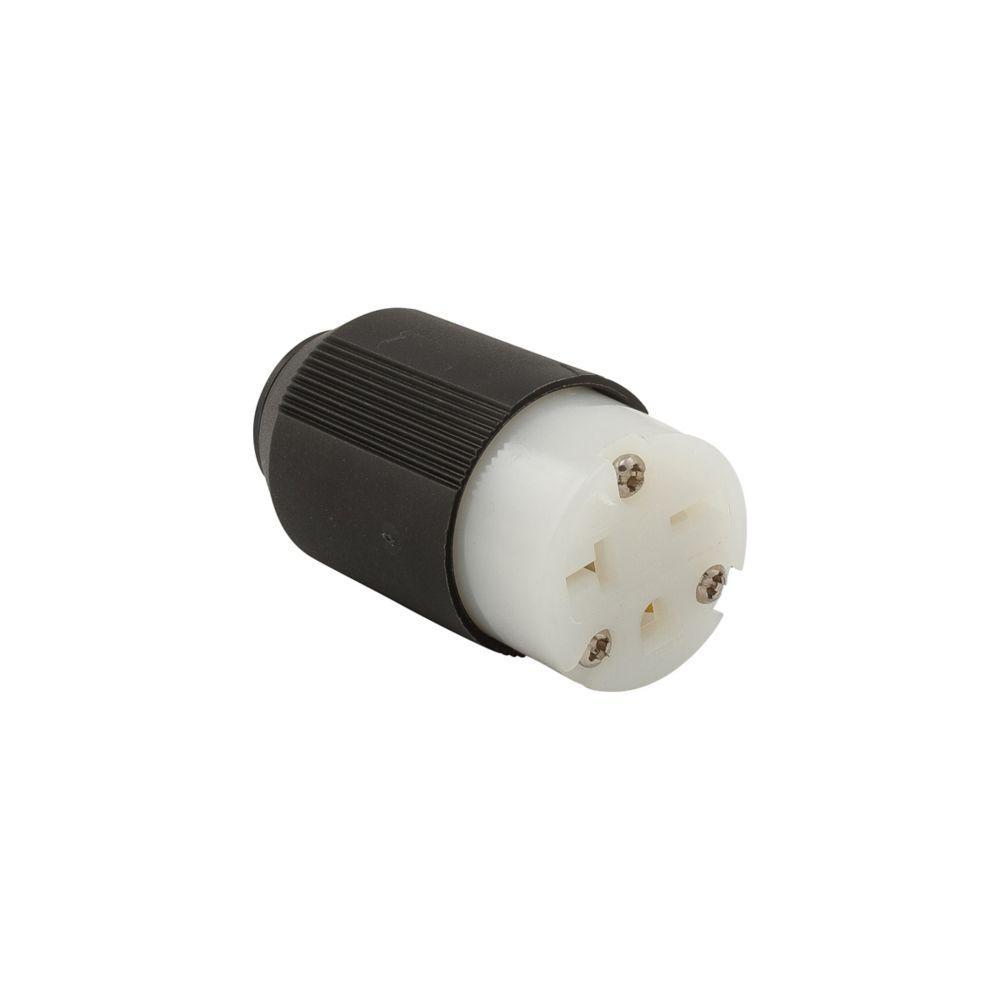

Image provided may only be a representation of
final product and may include optional equipment
5469N
Arrowhart 5469N Devices Straight Blade Connector
Part Number # 5469N
SKU # 1611
Arrowhart 5469N Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 5469N |
| SKU #: | 1611 |
| Amperage Rating: | 20, 20 A |
| Cord Diameter: | 0.25 to 0.69, 0.25 to 0.69 in |
| Dimensions: | 1.51 in Dia |
| NEMA Rating: | NEMA 6-20 |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back Wire/Screw, Back Wired/Screw |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00040893019109 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart 5469N Devices Straight Blade Connector
Brand: Arrowhart
Part Number: 5469N
EATON Arrow Hart AutoGrip Eaton Wiring Devices Straight Blade Connector, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA 6-20 NEMA Rating, Industrial Grade, 0.25 to 0.69 in Diameter Cord, -40 to 75 deg C, Back Wire/Screw Terminal, Nylon, Black/White, 1.51 in Dia Dimensions
Additional Description: AHWD-5469N Conn 20A 250V 2P3W Str AutoGrip BW
Catalog Description: Eaton Arrow Hart auto grip straight blade connector, #18-12 AWG, 20A, Industrial, 250V, Back wire, Black and white, Brass, Nylon, 6-20R, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
5469N Item Features
- AutoGrip clamp design secures cord during assembly, reducing installation time
- Rugged nylon body resists impact and exposure to chemicals
- Neoprene gasket seals around cord for added terminal protection from external elements
- Tapered, individual wire pockets guide stranded wire into contact area for ease of installation
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
5469N Standards
NOM,Federal Specification Classification 6221 02,ULSKU #1611Part Number #5469NUNSPSC39121402UPC00040893019109
