Part Number # 5746N
SKU # 47327

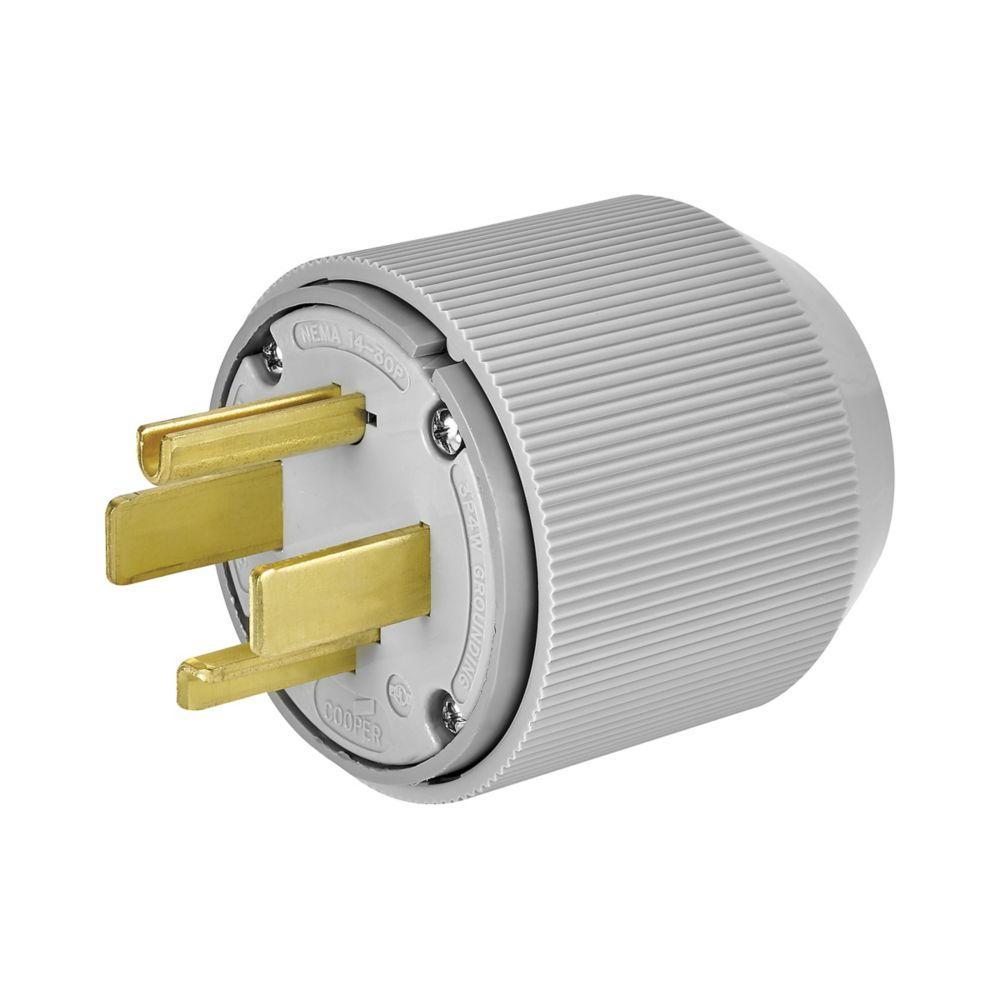

Image provided may only be a representation of
final product and may include optional equipment
5746N
Arrowhart 5746N Devices Straight Blade Plug
Part Number # 5746N
SKU # 47327
Arrowhart 5746N Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 5746N |
| SKU #: | 47327 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 0.425 to 1.31, 0.425 to 1.31 in |
| Dimensions: | 3.12 in Dia x 3.81 in L |
| NEMA Rating: | NEMA 14-30P |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back Wire/Threaded, Back Wired/Threaded |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00040893020433 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart 5746N Devices Straight Blade Plug
Brand: Arrowhart
Part Number: 5746N
EATON Arrow Hart Eaton Wiring Devices Straight Blade Plug, 125/250 VAC, 30 A, 3 Pole, 4 Wires, NEMA 14-30P NEMA Rating, Commercial/Industrial Grade, 0.425 to 1.31 in Diameter Cord, -40 to 75 deg C, Back Wire/Threaded Terminal, Nylon, Gray, 3.12 in Dia x 3.81 in L Dimensions
Additional Description: AHWD-5746N Plug 30A 125/250V 3P4W Str GY
Catalog Description: Eaton Arrow Hart extra heavy-duty auto grip plug , #12-4 AWG, 30A, Industrial, range and dryer, 125/250V, Back wire, Gray, Brass, Nylon, 14-30P, Three-pole, four-wire, grounding, Screw, Nylon, Core pack
5746N Item Features
- Quick-drive stainless steel assembly screws provide corrosion-resistance and speed installation time
- Broad selection of flanged inlets accept 12 to 4 AWG conductors
- Angled plug versions have 4 possible positions for maximum convenience
- Rugged high-strength construction
- Neoprene gasket seals around cord for added terminal protection from external elements
- Unique internal clamp design secures cord during assembly, reducing installation time
- 12 to 4 AWG wire
5746N Standards
NOM,Federal Specification Classification 6221 02,cULus ListedSKU #47327Part Number #5746NUNSPSC39121402UPC00040893020433
