7511W-BOX

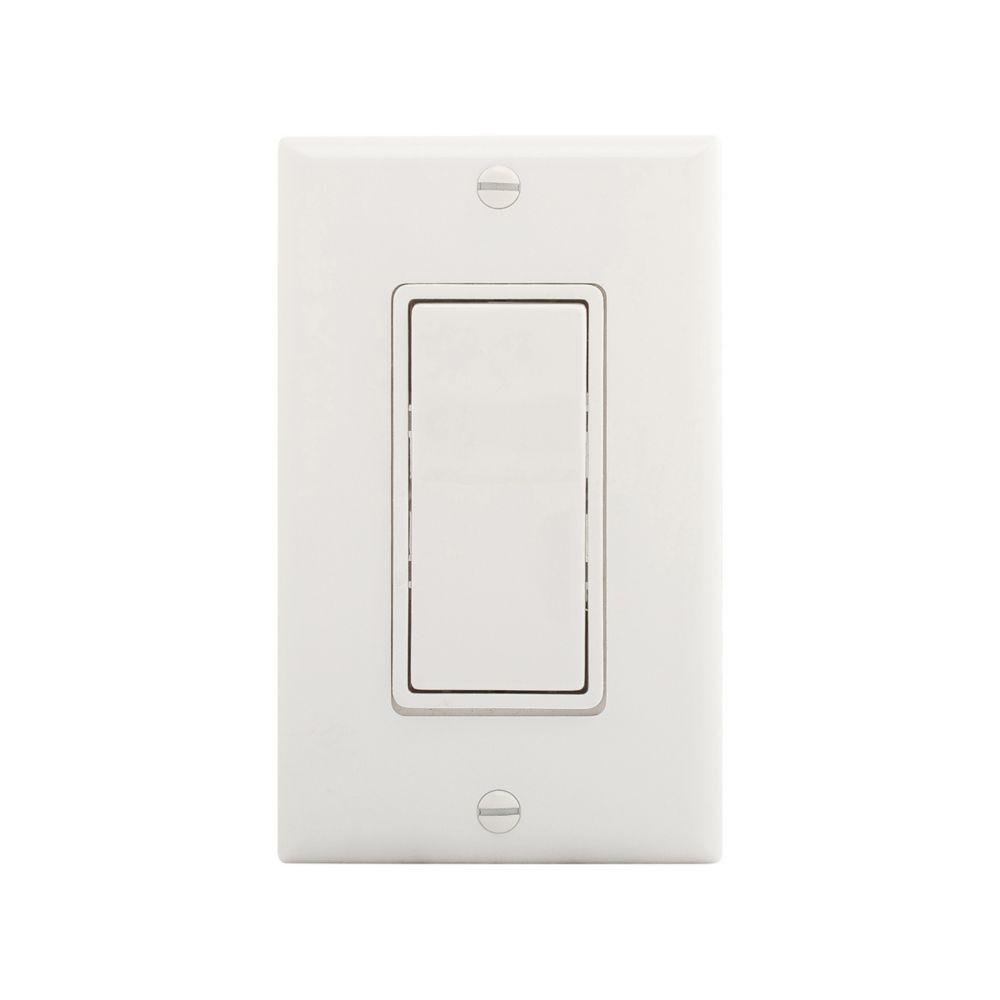

Arrowhart 7511W-BOX AC Decorator Switch
Part Number # 7511W-BOX
SKU # 2215757
$1060.00 / 50Each
Arrowhart 7511W-BOX Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 7511W-BOX |
| SKU #: | 2215757 |
| Action: | Maintained, Momentary |
| Actuator: | Paddle |
| Amperage Rating: | 15, 15 A |
| Contact Rating: | 15 A at 120/277 V AC, 15 A at 120/277 VAC |
| Dimensions: | 1.44 in L x 0.97 in W x 4.19 in H, 1.44 in W x 0.97 in D x 4.19 in H |
| Environmental Conditions: | -20 to 60 deg C Operating Temperature |
| Mounting: | Flush |
| Number of Poles: | 1 |
| Series: | 7500 |
| Terminal Type: | Back/Side Wire/Push-In/Screw, Back/Side Wired/Push Wired/Screw |
| Type: | Lighted Standard Grade |
| Color: | White |
| Country of origin: | CN |
| Material: | Polycarbonate/Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122226 |
| UPC: | 00032664628009 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1060.00 / 50Each
Quantity:
- EATON Arrow Hart AC Decorator Switch, Lighted Standard Grade, Series: 7500, 120/277 V AC, 15 A, 15 A at 120/277 V AC Contact, 1 Pole, Momentary Action, Paddle Actuator, Flush Mounting, Back/Side Wire/Push-In/Screw Terminal, Polycarbonate/Thermoplastic, White, Environmental Conditions: -20 to 60 deg C Operating Temperature, 1.44 in W x 0.97 in D x 4.19 in H Dimensions
7511W-BOX Application
For fluorescent lighting fixtures typical in commercial, industrial, residential buildings and facilities applications7511W-BOX Item Features
- Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance
- Ultrasonic welding and integrated construction of the strap and body provide superior integrity
- Tri-combo screws accept slotted, Phillips and Robertson head tools for installation flexibility
- Push-in terminals accept 14 AWG solid wire for quick installation
- Stippled ground screw terminal standard
- Long, broad mounting strap virtually eliminates floating installations
- Patented built-in wire stripper for 12 and 14 AWG wire to speed installation
- Back-wire clamps on side terminals provide for easy installation of 12 and 14 AWG wire
- Lighted switches glow in off position
- Redesigned paddle for easier actuation and quiet operation
7511W-BOX Standards
cULus Listed,RoHS Compliant,NAFTASKU #2215757Part Number #7511W-BOXUNSPSC39122226UPC00032664628009
