Part Number # 7546
SKU # 2391897
7546
Arrowhart 7546 Hart-Lock Locking Plug
Part Number # 7546
SKU # 2391897
Arrowhart 7546 Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 7546 |
| SKU #: | 2391897 |
| Amperage Rating: | 15 A |
| Cord Diameter: | 0.31 to 0.47 in |
| Dimensions: | 1.56 in Dia |
| NEMA Rating: | NEMA L1-15 |
| Number of Poles: | 2 |
| Number of Wires: | 2 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Screw |
| Type: | Straight |
| Material: | Phenolic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00040893677965 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart 7546 Hart-Lock Locking Plug
Brand: Arrowhart
Part Number: 7546
EATON Eaton Wiring Devices Arrow Hart Hart-Lock Locking Plug, Straight, 125 VAC, 15 A, 2 Pole, 2 Wires, NEMA L1-15 NEMA Rating, Industrial Grade, 0.31 to 0.47 in Diameter Cord, -40 to 75 deg C, Screw Terminal, Phenolic, Black, 1.56 in Dia Dimensions
Additional Description: AHWD-7546 Plug 15A 125V 2P2W H/L .312-.468" BK BK""
Catalog Description: Eaton safety grip locking plug, #14-8 AWG, 15A, Industrial, 125V, Back wiring, Black, Safety grip, L1-15, Two-pole, Two-wire, Phenolic, 0.31 to 0.47 in
7546 Application
For locking device applications7546 Item Features
- Back-wire dead front design
- External cable clamp provides firm strain-relief
- Back-wire terminal clamps for easy secure wiring
- 16 to 12 AWG wire
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
7546 Standards
cULus Listed,UL ListedSKU #2391897Part Number #7546UNSPSC39121406UPC00040893677965

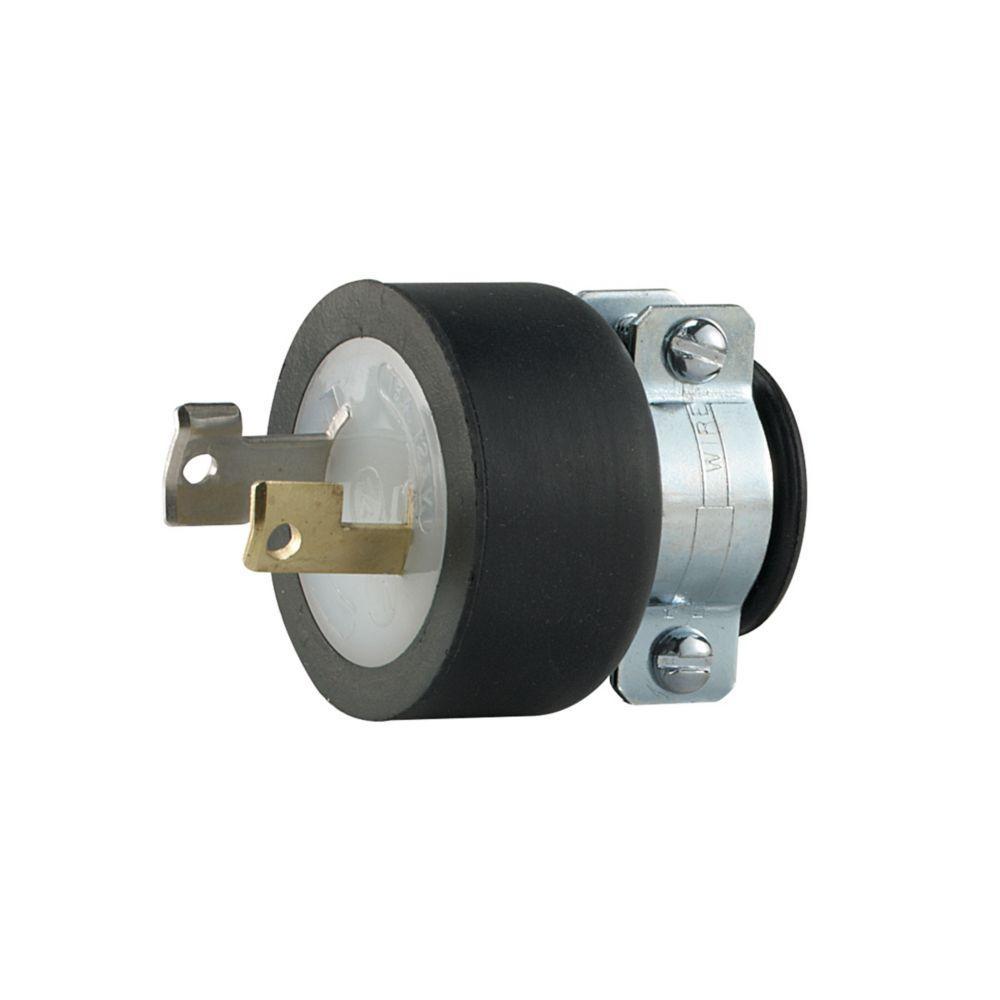

Image provided may only be a representation of final product and may include optional equipment
