Brand: Arrowhart

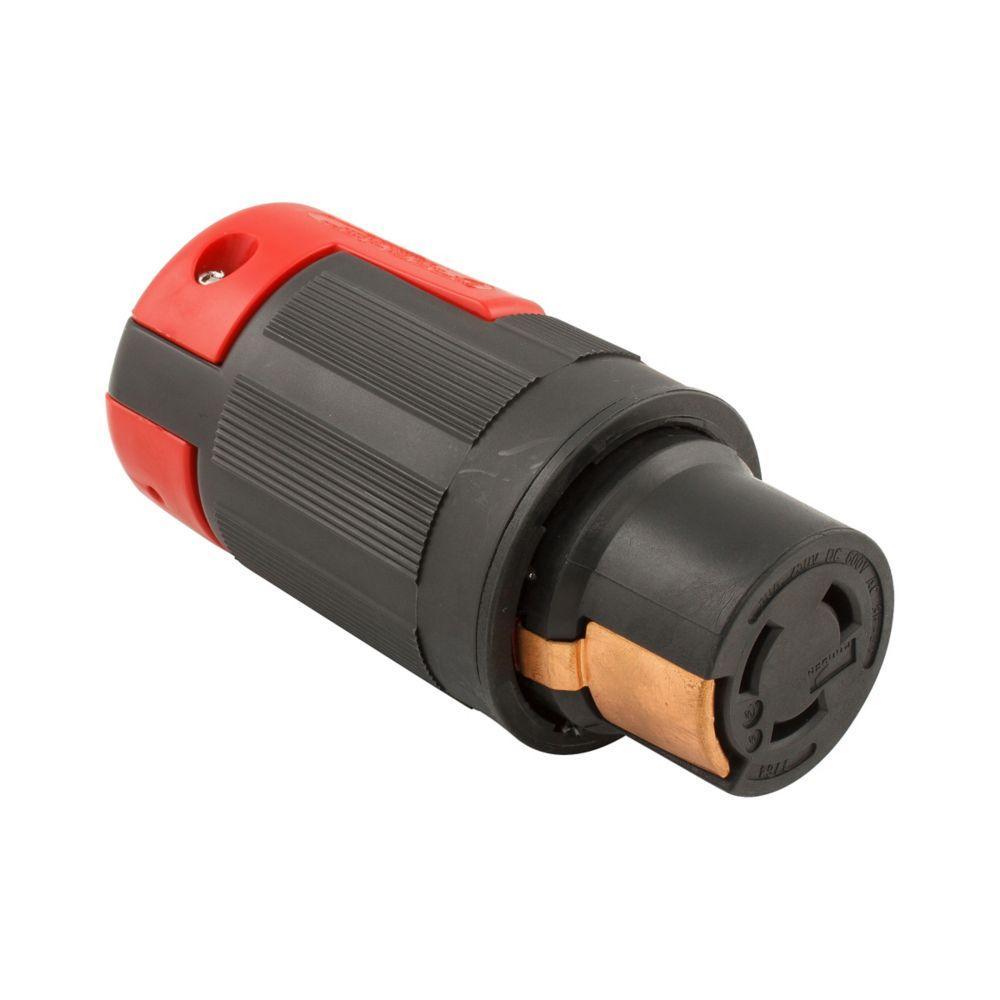

Arrowhart 7764EX Devices Locking Connector
Part Number # 7764EX
SKU # 2219195
$164.55 / Each
Arrowhart 7764EX Key Features
Brand: Arrowhart
Part Number # 7764EX
SKU #2219195
Amperage Rating: 50, 50 A
Cord Diameter: 0.44 to 1.06, 0.44 to 1.06 in
Dimensions: 2.55 in Dia x 5.52 in L
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 105, -40 to 105 deg C
Terminal Type: Back/Side Wire, Back/Side Wired
Type: Grounding
Voltage Rating: 600 VAC/250 VDC
Color: Black
Material: Nylon
Manufacturer Name: Eaton
UNSPSC: 39121403
UPC: 00032664663833
$164.55 / Each
- EATON Arrow Hart Hart-Lock Eaton Wiring Devices Locking Connector, Grounding, 600 VAC/250 VDC, 50 A, 3 Pole, 4 Wires, Industrial Grade, 0.44 to 1.06 in Diameter Cord, -40 to 105 deg C, Back/Side Wire Terminal, Nylon, Black, 2.55 in Dia x 5.52 in L Dimensions
7764EX Application
For locking device applications7764EX Item Features
- Internal plug body construction consists of rugged glass filled nylon
- Back wired for quick and dependable conductor termination
- Rugged metal shell and housing are made of durable stainless steel
- Nickel plated contacts, blades and terminal screws provide exceptional corrosion-resistance
- Neoprene gland protects cord entry from contamination
- High impact-resistant nylon housing withstands even the toughest application
- Pro-grip nylon
- 2000 VAC dielectric strength
- Non-NEMA configuration
- 10 to 6 AWG wire
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
7764EX Standards
CSA C22.2 File No. 42|cULus Listed|NOM Certified|UL 498|UL File No. E3663|UL 94 V-0 Flammability RatedSKU #2219195Part Number #7764EXUNSPSC39121403UPC00032664663833
