Brand: Arrowhart
815B-BOX

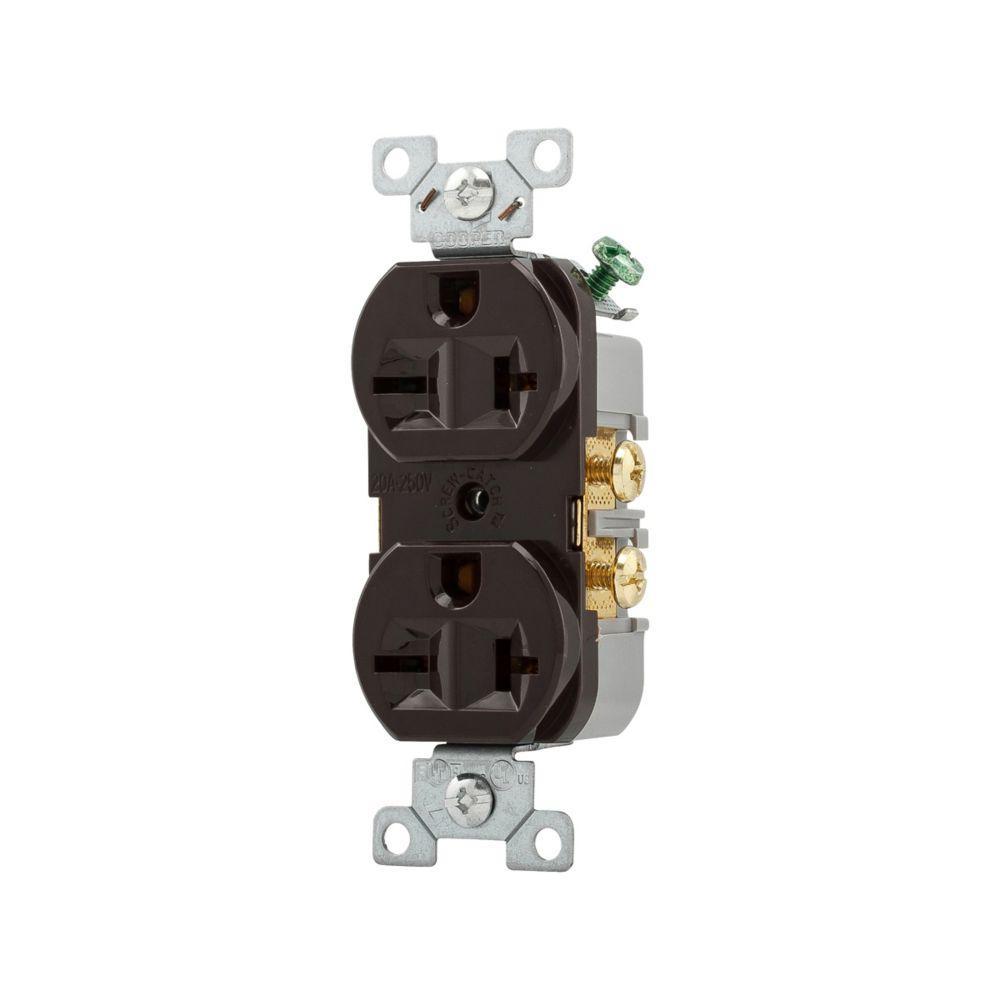

Arrowhart 815B-BOX Wiring Devices Straight Blade Receptacle
Part Number # 815B-BOX
SKU # 2346756
$1859.00 / 100Each
Arrowhart 815B-BOX Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 815B-BOX |
| SKU #: | 2346756 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.3 in L x 0.82 in W x 4.19 in H |
| NEMA Rating: | NEMA 6-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -4 to 158 deg F |
| Terminal Type: | Side Wire/Screw |
| Type: | Duplex Non-Grounding Tamper-Resistant |
| Color: | Brown |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664181900 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1859.00 / 100Each
Quantity:
- EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Duplex Non-Grounding Tamper-Resistant, 250 V AC, 20 A, 2 Pole, 3 Wires, NEMA 6-20R NEMA Rating, Commercial Grade, -4 to 158 deg F, Side Wire/Screw Terminal, Nylon, Brown, 1.3 in L x 0.82 in W x 4.19 in H Dimensions
815B-BOX Application
Non-Residential Applications815B-BOX Item Features
- Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- Tamper-resistant receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 VAC receptacles installed in dwelling units must be tamper-resistant
- PC bottom housing
- 2000 VAC dielectric strength
- Chemical and impact-resistant
- Nylon insulation
- Flush mounting
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
815B-BOX Standards
NOM,cULus Listed,Federal Specification Classification 6233 01,RoHS CompliantSKU #2346756Part Number #815B-BOXUNSPSC39121406UPC00032664181900
