Part Number # 8210GY
SKU # 2258182
Image Disclaimers Message
8210GY

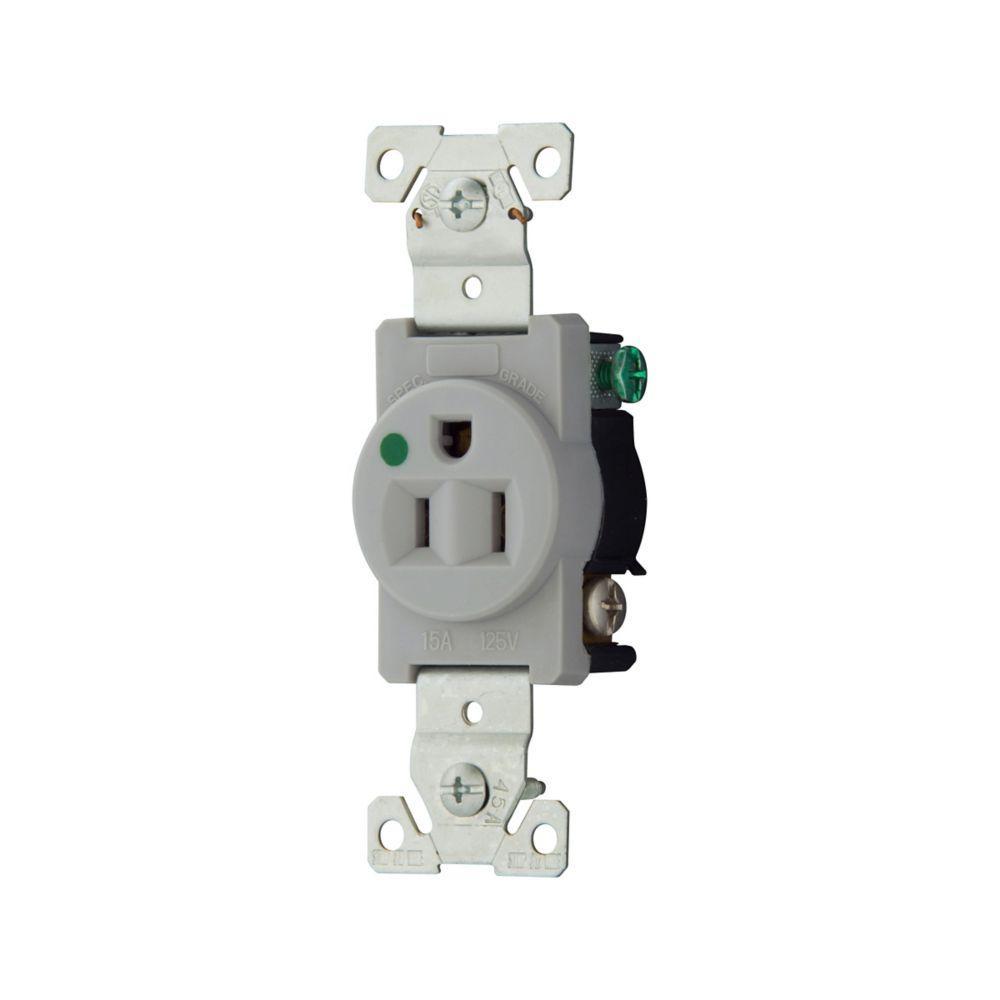

Arrowhart 8210GY Devices Straight Blade Receptacle
Part Number # 8210GY
SKU # 2258182
$1736.50 / 50Each
Arrowhart 8210GY Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 8210GY |
| SKU #: | 2258182 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 4.19 in H x 1.3 in W x 0.87 in D |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -4 to 194, -4 to 194 deg F |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | Premium Single |
| Color: | Gray |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664394904 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1736.50 / 50Each
Quantity:
- EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Premium Single, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Hospital Grade, -4 to 194 deg F, Screw Terminal, Nylon, Gray, 4.19 in H x 1.3 in W x 0.87 in D Dimensions
8210GY Application
Industrial Receptacle Applications8210GY Item Features
- High impact and chemical-resistant nylon face
- Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws are plated, Triple-combination (slot/Phillips/Robertson) head for superior corrosion-resistance and maximum flexibility
- Long, broad mounting strap helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
8210GY Standards
Federal Specification Classification 6233 01,UL,NOMSKU #2258182Part Number #8210GYUNSPSC39121406UPC00032664394904
