Part Number # 8300GY
SKU # 2257939
8300GY
Arrowhart 8300GY Devices Straight Blade Receptacle
Part Number # 8300GY
SKU # 2257939
Arrowhart 8300GY Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 8300GY |
| SKU #: | 2257939 |
| Dimensions: | 4.19 in H x 1.3 in W x 0.88 in D |
| Temperature Rating (Degrees F): | -20 to 90, -20 to 90 deg C |
| UNSPSC: | 39121406 |
| UPC: | 00032664705533 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

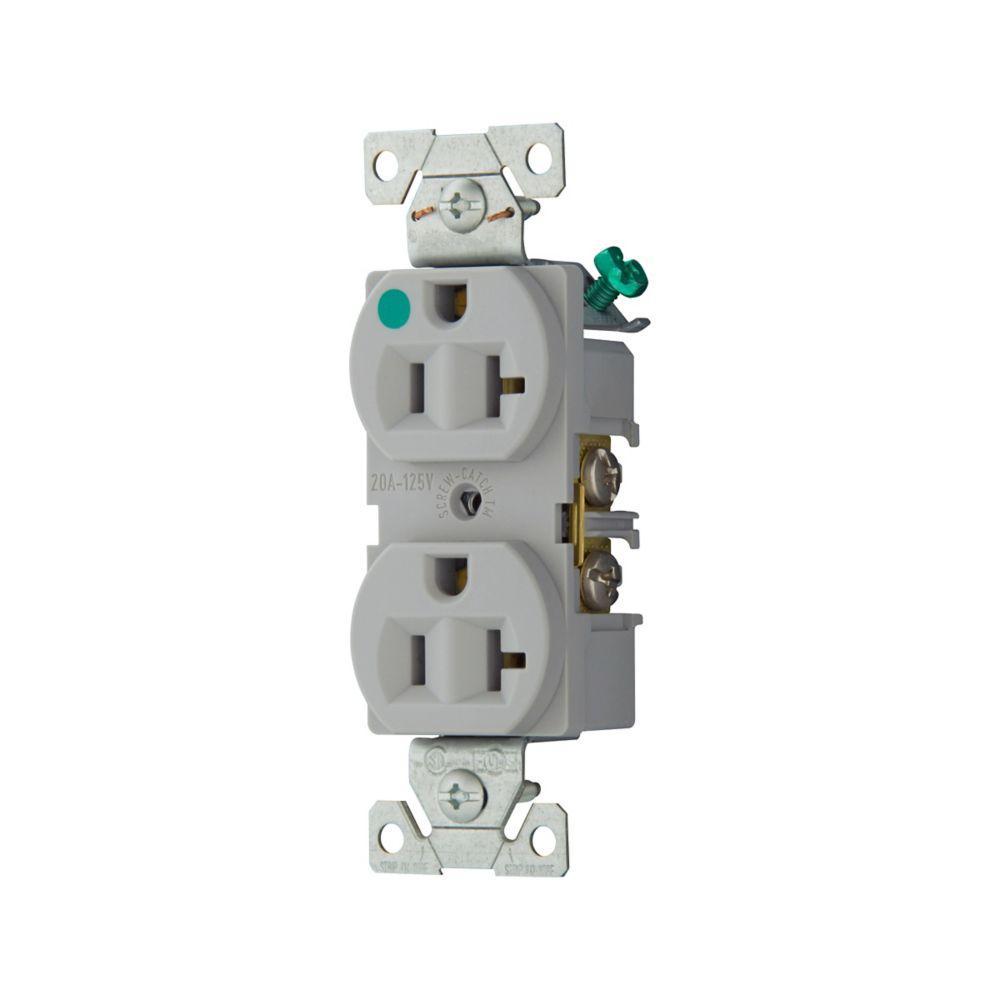

Arrowhart 8300GY Devices Straight Blade Receptacle
Brand: Arrowhart
Part Number: 8300GY
EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Single, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial/Hospital Grade, -20 to 90 deg C, Screw Terminal, Nylon, Gray, 4.19 in H x 1.3 in W x 0.88 in D Dimensions
Additional Description: AHWD-8300GY Recp HG Dup 20A125V 2P3W Str Comp B&S GY
Catalog Description: Eaton Arrow Hart heavy-duty hospital grade duplex receptacle, #14-10 AWG, 20A, Healthcare, Flush, 125V, Back and side, Gray, Brass, High-impact nylon face, PVC base, 5-20R, Duplex, Screw, Nylon, PVC
8300GY Application
Industrial Receptacle Applications8300GY Item Features
- Tapered back wiring lead-in slots assist in gathering stranded wires for faster, more secure connections
- Long, broad mounting strap helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- All terminal and mounting screws Triple-combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Screw catch feature on duplex devices speeds mounting of wallplates
- Nylon insulation
- Wall mount
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
8300GY Standards
NOM,UL,Federal Specification Classification 6233 01SKU #2257939Part Number #8300GYUNSPSC39121406UPC00032664705533
Image provided may only be a representation of final product and may include optional equipment
