Part Number # 9460N
SKU # 2438316
9460N

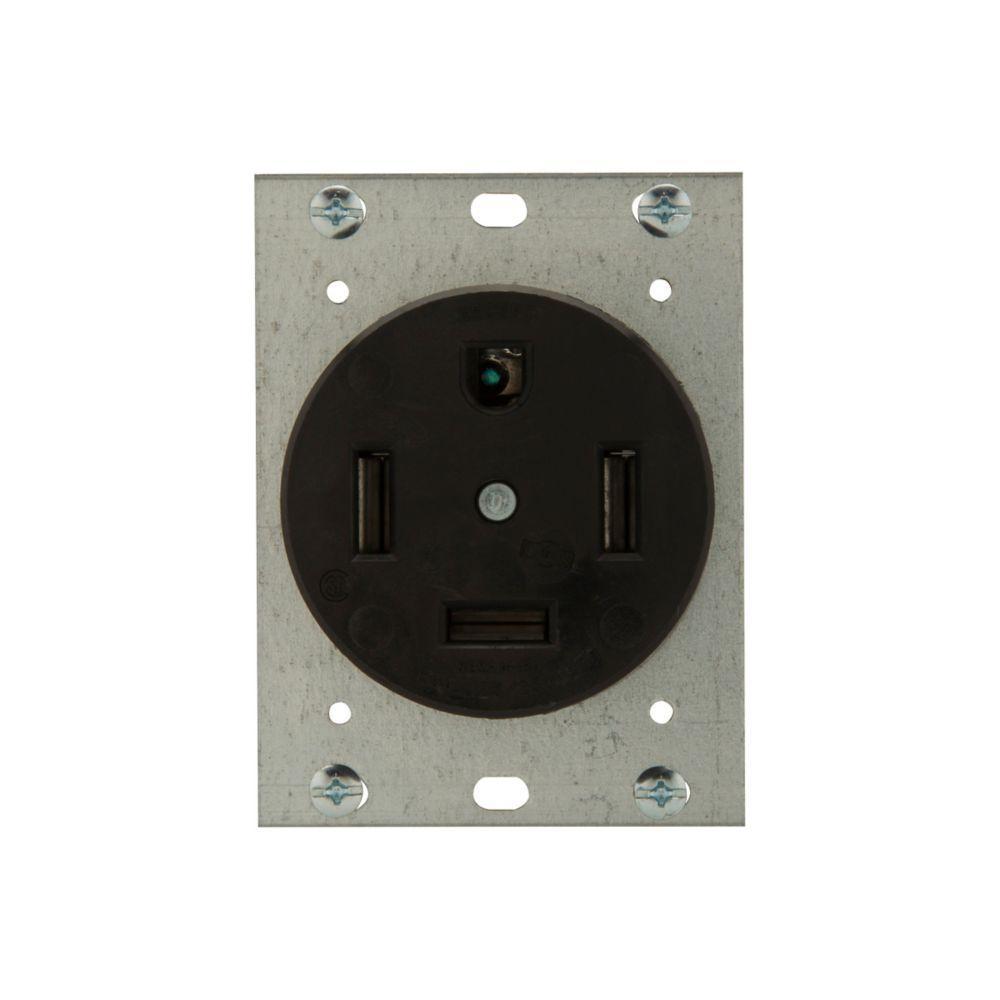

Arrowhart 9460N Wiring Devices Straight Blade Receptacle
Part Number # 9460N
SKU # 2438316
Arrowhart 9460N Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | 9460N |
| SKU #: | 2438316 |
| Amperage Rating: | 60 A |
| Dimensions: | 4.19 in H |
| NEMA Rating: | NEMA 14-60R |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | -4 to 158 deg F |
| Terminal Type: | Screw |
| Type: | Premium Single |
| Country of origin: | US |
| Material: | Glass Reinforced Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00040893018874 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart 9460N Wiring Devices Straight Blade Receptacle
Brand: Arrowhart
Part Number: 9460N
Eaton Wiring Devices Arrow Hart™ Straight Blade Single Receptacle, 125/250 VAC, 60 A, 3 Poles, 4 Wires, NEMA 14-60R, Commercial Grade, -20 to 70 deg C, Back and Side Wired Terminal, Nylon, Black, 4.19 in H
Additional Description: AHWD-9460N Recp Single 60A 125/250V 3P4W Str BK
Catalog Description: Eaton power device receptacle, #12 - 4 AWG, 60A, Flush, 125/250V, Back, Black, NEMA 14-60R, Three-pole, Four-wire, Three-pole, four-wire, grounding, Screw, Glass-filled nylon, Power
9460N Application
Non-Residential Applications9460N Item Features
- Heavy duty design and construction make Arrow HART power devices ideal for any high amperage industrial or commercial power connectivity application
- Nylon insulation
- Flush mounting
- 14 to 10 AWG wire terminal
9460N Standards
cULus Listed,CSA Certified,Federal Specification Classification 6233 01SKU #2438316Part Number #9460NUNSPSC39121406UPC00040893018874
Image provided may only be a representation of final product and may include optional equipment
