AH1201W

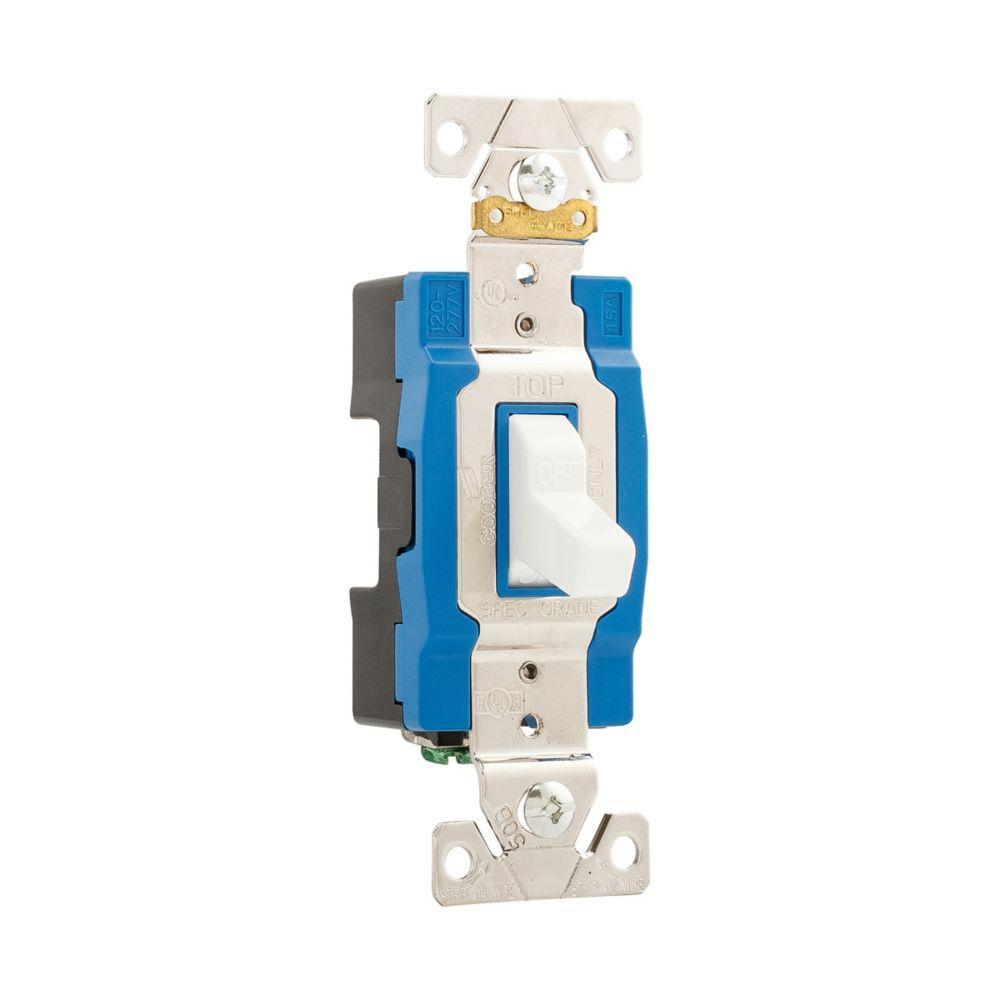

Arrowhart AH1201W Toggle Switch
Part Number # AH1201W
SKU # 2291358
Arrowhart AH1201W Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH1201W |
| SKU #: | 2291358 |
| Actuator: | Toggle |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 1.31 in W x 1.05 in D x 3.28 in H, 3.28 in H x 1.31 in W x 1.05 in D |
| Environmental Conditions: | -4 to 140 deg F Operating Temperature |
| Mounting: | Wall |
| Number of Poles: | 1 |
| Operating Cycles: | 30000, 30000 Cycles |
| Series: | AH1200 |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | Automatic Grounding Premium Specification Grade |
| Color: | White |
| Material: | Polycarbonate |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122211 |
| UPC: | 00032664734373 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart AH1201W Toggle Switch
Brand: Arrowhart
Part Number: AH1201W
EATON Arrow Hart Toggle Switch, Automatic Grounding Premium Specification Grade, 120/277 V, 15 A, 1/2 hp Power, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 30000 Cycles Operating Cycles, Polycarbonate, White, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in W x 1.05 in D x 3.28 in H Dimensions
Additional Description: AHWD-AH1201W SW Toggle SP 15A 120/277V AutoGrd B&S WH
Catalog Description: Eaton Arrow Hart industrial grade toggle switch, #14-10 AWG, 15A, Industrial, Flush mount, 120/277V, Back and side, Screw, White, Single-Pole, Single-Pole, Brass, Polycarbonate
AH1201W Application
Industrial, Commercial, Non-Residential, Industrial Facilities and Factories Facility ApplicationsAH1201W Item Features
- 14 to 10 AWG terminal accommodation
- 2.4 in L screw to screw
- 1/2 hp at 120 VAC, 2 hp at 240 VAC
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
AH1201W Standards
CSA C22.2 No. 111/10016/6241-05|cULus Listed|Federal Specification W-S-896-E|FULs Listed|NAFTA Compliant|NOM 426|UL 20 File No. E18704|UL 94 V-2 Flammability RatedSKU #2291358Part Number #AH1201WUNSPSC39122211UPC00032664734373
