AH1221W

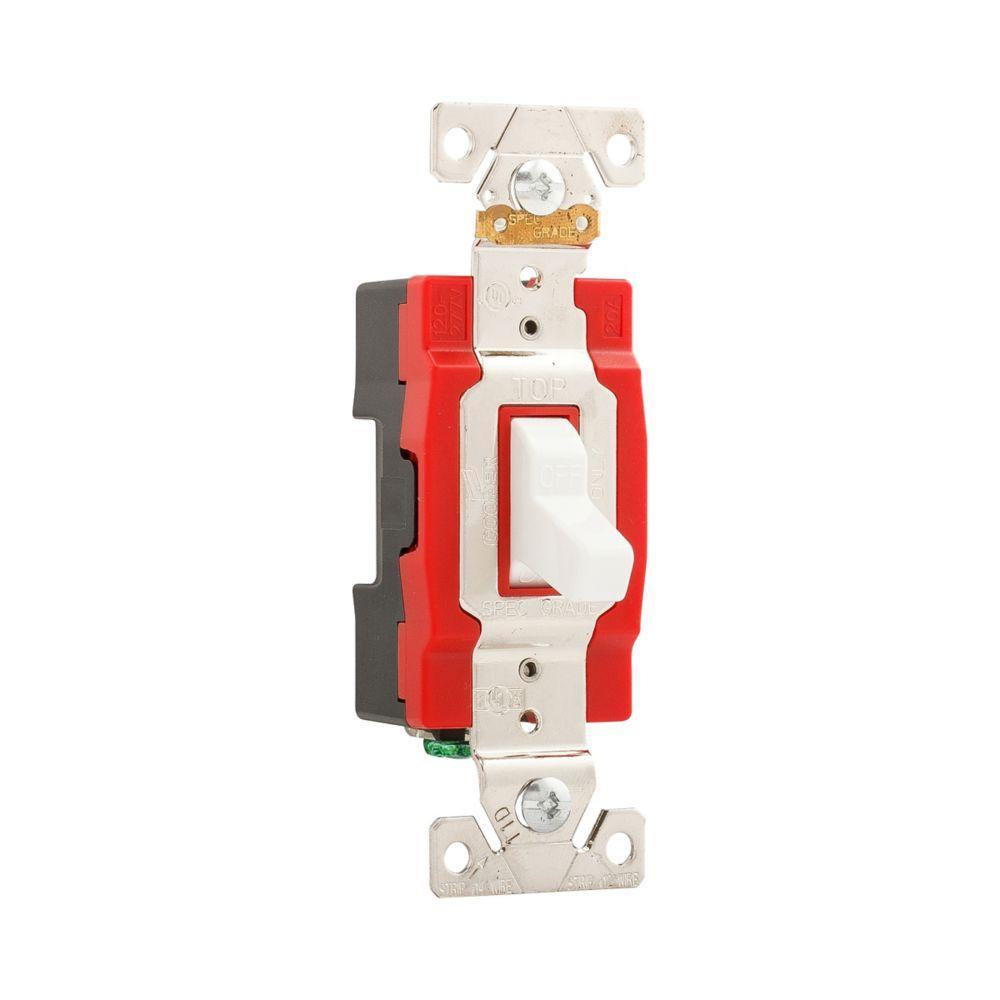

Arrowhart AH1221W Toggle Switch
Part Number # AH1221W
SKU # 2179634
Arrowhart AH1221W Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH1221W |
| SKU #: | 2179634 |
| Actuator: | Toggle |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 1.31 in W x 1.05 in D x 3.28 in H, 3.28 in H x 1.31 in W x 1.05 in D |
| Environmental Conditions: | -4 to 140 deg F Operating Temperature |
| Mounting: | Wall |
| Number of Poles: | 1 |
| Operating Cycles: | 30000, 30000 Cycles |
| Series: | AH1220 |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | Automatic Grounding Premium Specification Grade |
| Color: | White |
| Material: | Polycarbonate |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122211 |
| UPC: | 00032664734694 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart AH1221W Toggle Switch
Brand: Arrowhart
Part Number: AH1221W
EATON Arrow Hart Toggle Switch, Automatic Grounding Premium Specification Grade, 120/277 V, 20 A, 1 hp Power, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 30000 Cycles Operating Cycles, Polycarbonate, White, Environmental Conditions: -4 to 140 deg F Operating Temperature, 1.31 in W x 1.05 in D x 3.28 in H Dimensions
Additional Description: AHWD-AH1221W SW Toggle SP 20A 120/277V AutoGrd B&S WH
Catalog Description: Eaton Arrow Hart industrial grade toggle switch, #14-10 AWG, 20A, Industrial, Flush, 120/277V, Back and side, Screw, White, Single-Pole, Single-Pole, Brass, Polycarbonate
AH1221W Application
Industrial, Commercial, Non-Residential, Industrial Facilities and Factories Facility ApplicationsAH1221W Item Features
- Color-coded faces identify amperage
- 14 to 10 AWG terminal accommodation
- 1 hp at 120 VAC, 2 hp at 240 VAC
- 2.4 in L screw to screw
- Nylon toggle
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
AH1221W Standards
CSA C22.2 No. 111/10016/6241-05|cULus Listed|Federal Specification W-S-896-E|FULs Listed|NAFTA Compliant|NOM 426|UL 20 File No. E18704|UL 94 V-2 Flammability RatedSKU #2179634Part Number #AH1221WUNSPSC39122211UPC00032664734694
