Part Number # AH4100P7W
SKU # 2413066
AH4100P7W
Arrowhart AH4100P7W EATON Arrow Hart Eaton Wiring Devices Arrow Hart Pin and Sleeve Plug
Part Number # AH4100P7W
SKU # 2413066
Arrowhart AH4100P7W Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH4100P7W |
| SKU #: | 2413066 |
| Amperage Rating: | 100 A |
| Dimensions: | 13-3/8 x 5-1/2 x 5-5/8 in, 5.17 in Dia x 11.16 in L |
| Enclosure: | IP67/IP69K |
| Horsepower: | 20 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | 86 deg F |
| Terminal Type: | Screw |
| Type: | 3-Phase Watertight |
| Country of origin: | CN |
| Material: | Nylon PA66, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00040893620848 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart AH4100P7W EATON Arrow Hart Eaton Wiring Devices Arrow Hart Pin and Sleeve Plug
Brand: Arrowhart
Part Number: AH4100P7W
Crouse-Hinds Arrow Hart® Pin and Sleeve Plug, 3-Phase Watertight, 480 VAC, 100 A, 20 hp, 3 Poles, 4 Wires, IP67/IP69K Enclosure, 86 deg F, Screw Terminal, Nylon PA66, Blue/Gray, 13-3/8 x 5-1/2 x 5-5/8 in
Additional Description: AHWD-AH4100P7W (N) Plug Pin&Sleeve 100A 480V 3PH 3P4W WT RD NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Arrow Hart pin and sleeve plug, IP69K Rated, #4 -1/0 AWG, #12 - #16 AWG (pilot), 100A, 3Ø 480V, Back wire, Red, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, 0.97-1.94in (2.46-5.00cm), Male, 20 HP, Nylon, 3PH
AH4100P7W Application
Industrial ApplicationsAH4100P7W Item Features
- Nickel plated pins and contacts offer long-life corrosion protection
- Plugs have a lockout hole for added safety
- Individual silicone sealing grommets with cord diameter indication provide for faster and easier assembly
- Tri-combo hardware for convenience
- Threaded NPT cable entry provides an efficient means of attaching flexible conduit or wire mesh grips
- Inlet and receptacle mounting footprint and blind holes provide interchangeability with major brands
- Impact-resistant thermoplastic insulation
- Cable mounting
- 3000 vac dielectric voltage
- Maximum 86 deg f (30 deg C) after 50 cycles of overload at 150% of rated current
- 0.97 to 1.94 in Dia cord
- 2 in NPT threaded entry
- https://www.youtube.com/watch?v=ued4JEKvrPQ
AH4100P7W Standards
IEC 60309SKU #2413066Part Number #AH4100P7WUNSPSC39121402UPC00040893620848

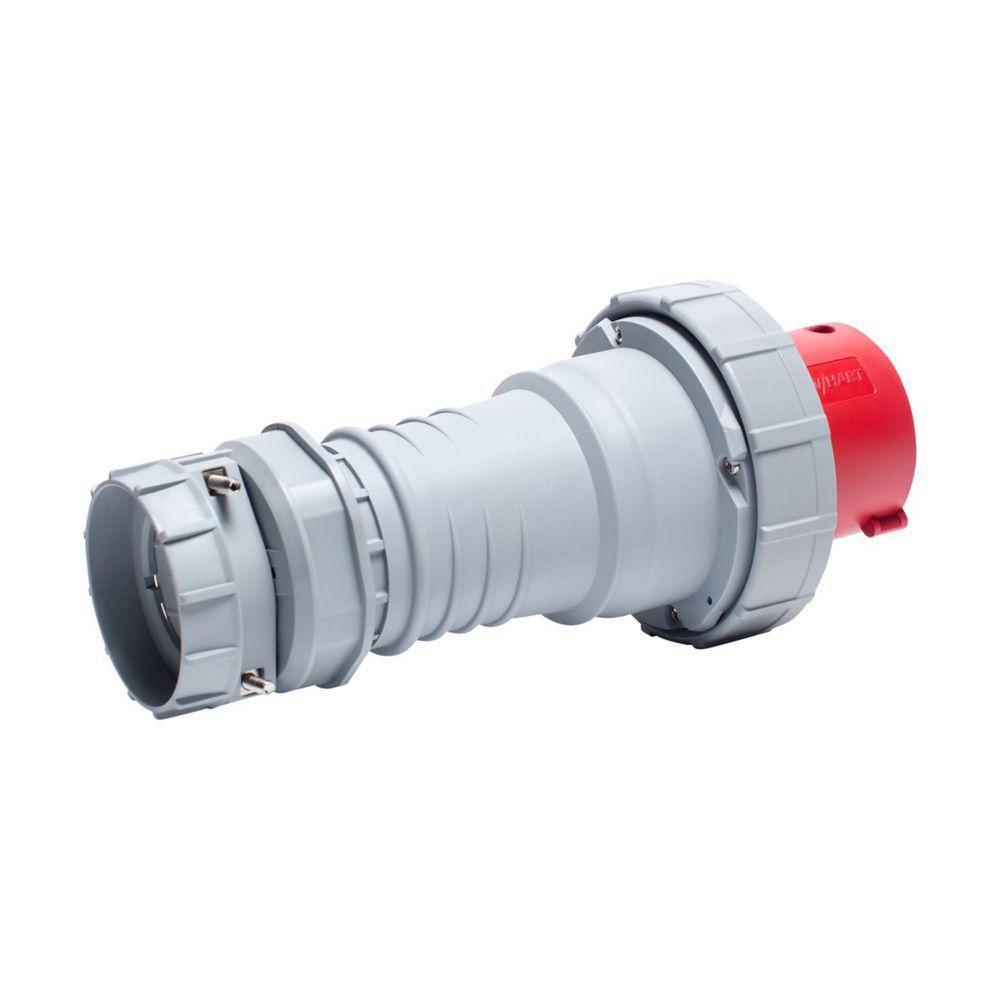

Image provided may only be a representation of final product and may include optional equipment
