Arrowhart AH4100R7W EATON Arrow Hart Pin and Sleeve Receptacle
Part Number # AH4100R7W
SKU # 2413064
AH4100R7W
Arrowhart AH4100R7W EATON Arrow Hart Pin and Sleeve Receptacle
Part Number # AH4100R7W
SKU # 2413064
Arrowhart AH4100R7W Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH4100R7W |
| SKU #: | 2413064 |
| Dimensions: | 5-1/2 in H x 5-1/2 in W |
| Material: | PA66 Nylon |
| UNSPSC: | 39121406 |
| UPC: | 00032664732140 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

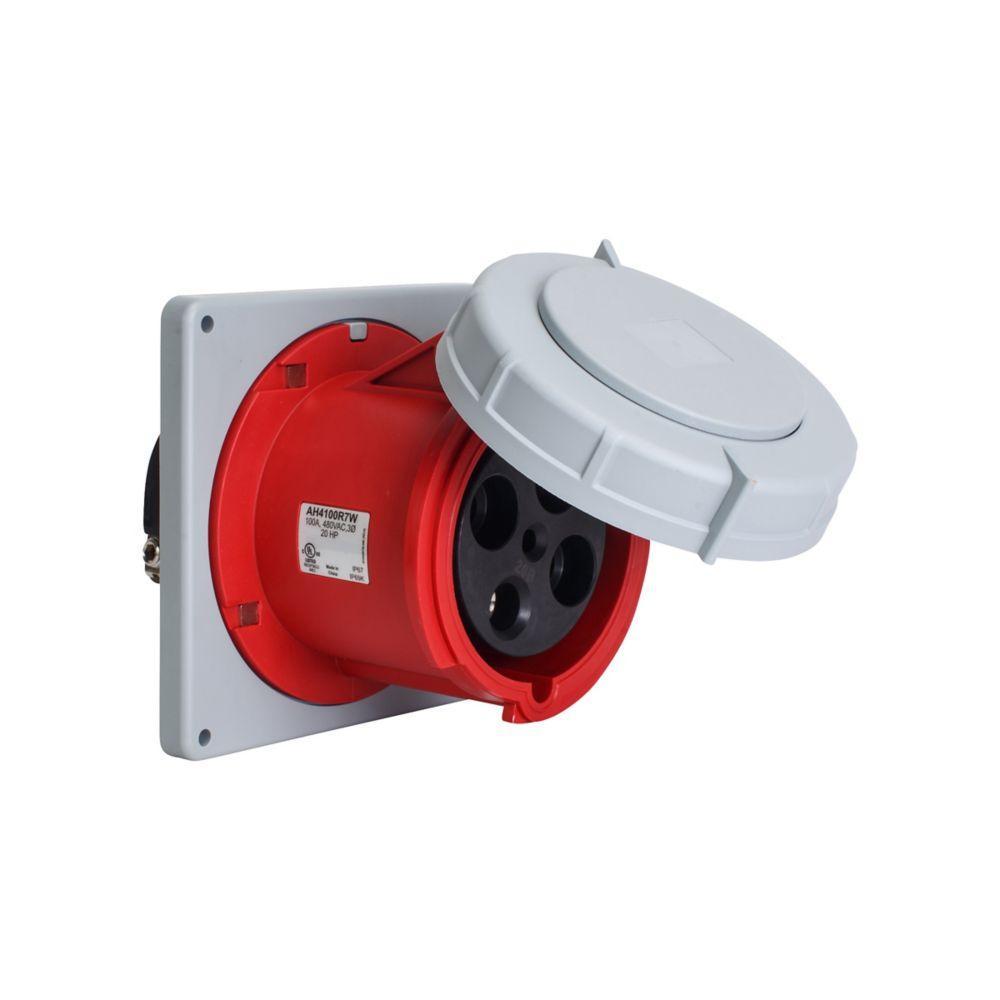

Arrowhart AH4100R7W EATON Arrow Hart Pin and Sleeve Receptacle
Brand: Arrowhart
Part Number: AH4100R7W
Crouse-Hinds Arrow Hart Pin and Sleeve Receptacle, 3-Phase Watertight, 480 VAC, 100 A, 20 hp, 3 Pole, 4 Wires, IP67/IP69K Enclosure, 86 deg F, Screw Terminal, Nylon PA66, Blue/Gray/Red, 7-3/8 x 7-3/8 x 6-1/4 in Dimensions
Additional Description: AHWD-AH4100R7W (N) Recp Pin&Sleeve 100A 480V 3PH 3P4W WT RD NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Arrow Hart pin and sleeve receptacle, IP69K Rated, #4 -1/0 AWG, #12 - #16 AWG (pilot), 100A, 3Ø 480V, Back wire, Red, Nickel plated brass, IP67, Nylon, 3-pole, 4-wire, AHBB100 Back box style, Female, 20 HP, Nylon, 3PH
AH4100R7W Application
IEC Pin and Sleeve Industrial ApplicationsAH4100R7W Item Features
- Spring loaded self-closing cap with silicon gasket protects contacts when not in use
- Rugged materials selected for use in wet locations, provides corrosion resistance
- Standard mounting footprints and blind holes provide interchangeability with major brands
- Individual silicon sealing grommets with cord diameter range makes for faster, easier assembly
- Nickel plated pins and contacts offer long life corrosion protection
- Inlet and receptacle mounting footprint and blind holes provide interchangeability with major brands
- 3000 VAC dielectric voltage
- 600 VAC maximum working voltage
- Nickel plated brass sleeve
- Nickel plated spring steel contacts and cover spring
- Silicon rubber cover and flange gasket
- Nickel plated steel terminal screws
- Stainless steel assembly screws
- Nylon face insulation
- Impact resistant thermoplastic cable
- https://www.youtube.com/watch?v=ued4JEKvrPQ
AH4100R7W Standards
cRUusSKU #2413064Part Number #AH4100R7WUNSPSC39121406UPC00032664732140
Image provided may only be a representation of final product and may include optional equipment
