Part Number # AH430P7W
SKU # 2353495
Image Disclaimers Message
Brand: Arrowhart
AH430P7W

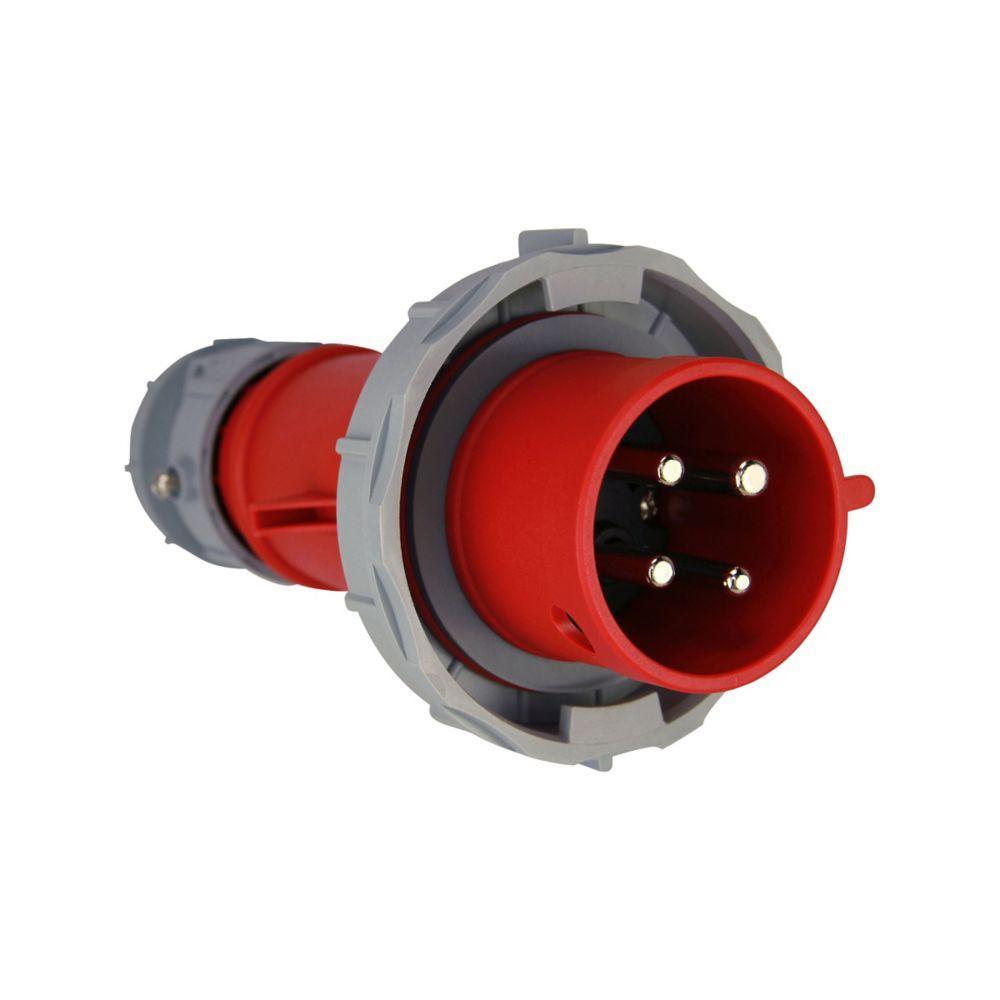

Arrowhart AH430P7W Pin and Sleeve Plug
Part Number # AH430P7W
SKU # 2353495
$4159.20 / 24Each
Arrowhart AH430P7W Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH430P7W |
| SKU #: | 2353495 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 10.375 x 4.75 x 4.813, 2.98 in Dia x 6.08 in L |
| Enclosure: | IP67/IP69K |
| Horsepower: | 10, 10 hp |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Temperature Rating (Degrees F): | 30, 30 deg C, 86 |
| Terminal Type: | Screw |
| Type: | 3-Phase Watertight |
| Color: | Blue/gray, Red |
| Material: | Nylon PA6-GF30, Thermoplastic |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00032664732348 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4159.20 / 24Each
Quantity:
- EATON Arrow Hart Eaton Wiring Devices Arrow Hart Pin and Sleeve Plug, 3-Phase Watertight, 480 V AC, 30 A, 10 hp, 3 Pole, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, 30 deg C, Screw Terminal, Thermoplastic, Red, 2.98 in Dia x 6.08 in L Dimensions
AH430P7W Application
Industrial ApplicationsAH430P7W Item Features
- Mechanical cord clamp with silicone rubber grommet seal and locking screw ensures a positive and watertight strain relief system
- Tri-combo cord grip screws for convenience
- Color coded front housing for easy and accurate identification of voltages
- Oversized grounding pin assures mating only with oversized female grounding sleeve, staggered contact to ensure ground makes first and breaks last
- Provides corrosion-resistance
- Standard mounting footprints and blind holes provide interchangeability with major brands
- Pins fully shrouded for mechanical protection, lockout hole for plugs
- Nylon PA6-GF30 housing, flange, external strain relief clamp and back body
- Nylon PA6 contact carrier
- Nickel plated brass pins
- Silicon rubber cable seal
- Plated steel support washer for cord grip
- Nickel plated steel terminal screw
- Stainless steel assembly screw
- 0.433 to 0.985 in Dia cable
- https://www.youtube.com/watch?v=ued4JEKvrPQ
AH430P7W Standards
cULus Listed|IEC 309SKU #2353495Part Number #AH430P7WUNSPSC39121402UPC00032664732348
