AH430R7W
Arrowhart AH430R7W Pin and Sleeve Receptacle
Part Number # AH430R7W
SKU # 2383196
Arrowhart AH430R7W Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH430R7W |
| SKU #: | 2383196 |
| Temperature Rating (Degrees F): | -30 deg C |
| Material: | Impact-Resistant Thermoplastic |
| UNSPSC: | 39121406 |
| UPC: | 00032664731976 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

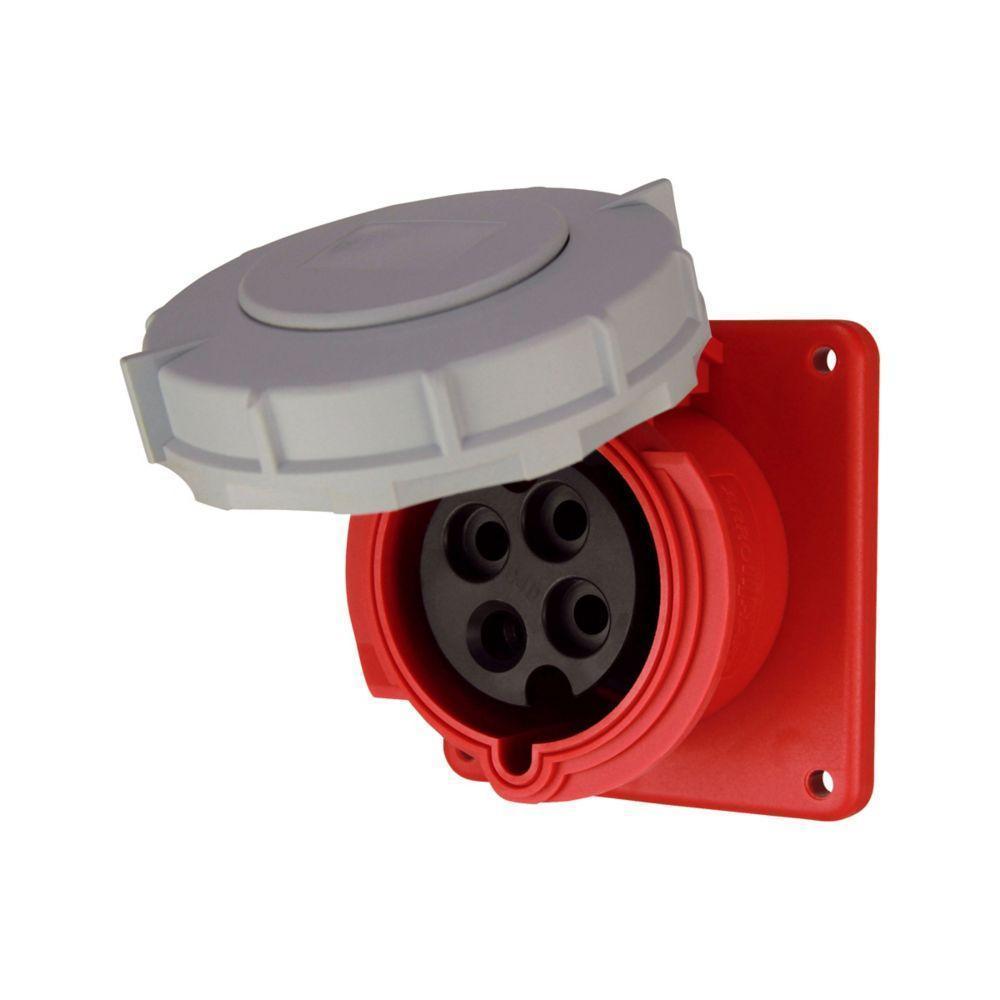

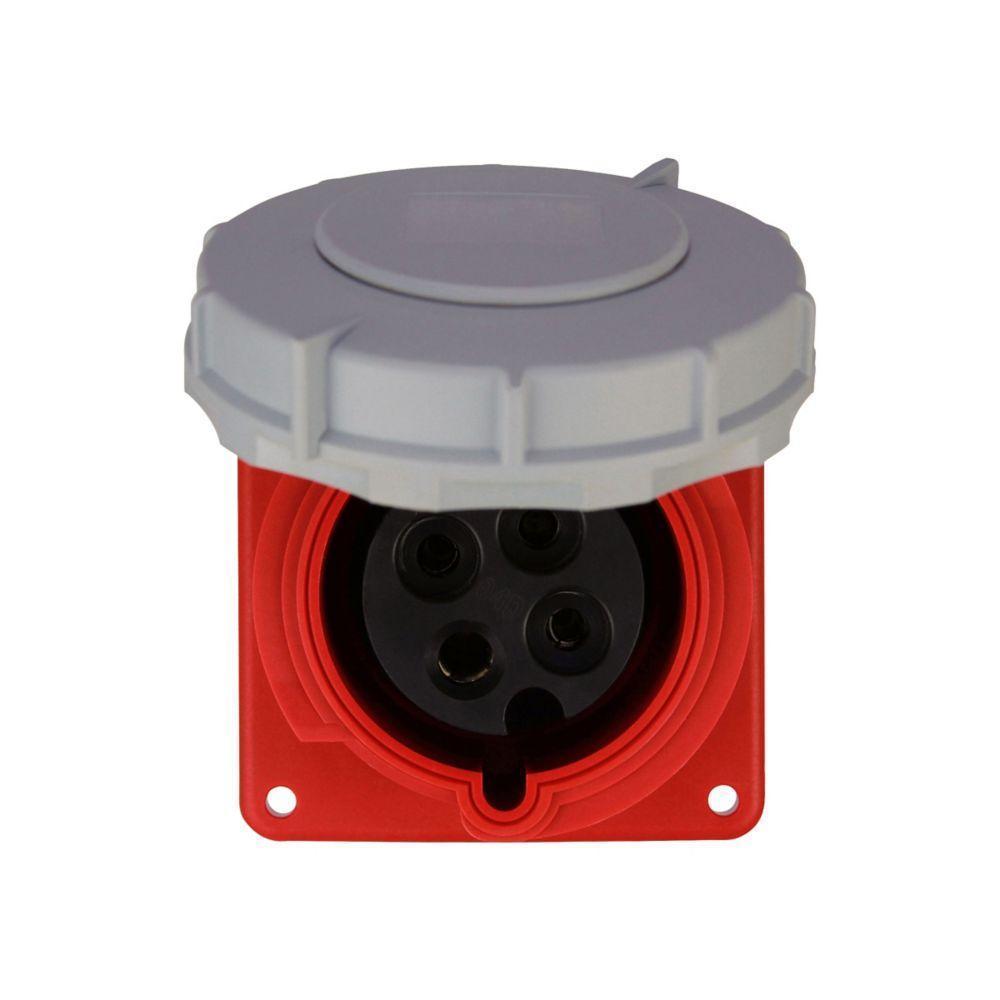

Arrowhart AH430R7W Pin and Sleeve Receptacle
Brand: Arrowhart
Part Number: AH430R7W
EATON Arrow Hart Pin and Sleeve Receptacle, 3-Phase Watertight, 3 kV AC, 30 A, 10 hp, 3 Pole, 4 Wires, Industrial Grade, IP67/IP69K Enclosure, -30 deg C, Screw Terminal, Impact-Resistant Thermoplastic, Red
Additional Description: AHWD-AH430R7W (N) Recp Pin&Sleeve 30A 480V 3PH 3P4W WT RD NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Eaton Arrow Hart pin and sleeve receptacle, IP69K Rated, #10 -#2 AWG, 30A, 3Ø 480V, Back wire, Red, Nickel plated brass, IP67, Nylon, Three-pole, Four-wire, grounding, AHBB30 Back box style, Female, 10 HP, Nylon, Three-phase
AH430R7W Application
Industrial IEC Pin and Sleeve ApplicationsAH430R7W Item Features
- Nickel plated pins and contacts offer long-life corrosion protection
- Spring-loaded self-closing cap with silicone gasket protects contacts when not in-use
- Rugged materials selected for use in wet locations, provides corrosion-resistance
- Standard mounting footprints and blind holes provide interchangeability with major brands
- Individual silicone sealing grommets with cord diameter range makes for faster, easier assembly
- Inlet and receptacle mounting footprint and blind holes provide interchangeability with major brands
- Nylon insulation
- Impact-resistant thermoplastic insulation
- Receptacle mounting
- Maximum 30 deg c (86 deg F) after 50 cycles of overload at 150% of rated current
- https://www.youtube.com/watch?v=ued4JEKvrPQ
AH430R7W Standards
UL Listed|IEC CertifiedSKU #2383196Part Number #AH430R7WUNSPSC39121406UPC00032664731976
Image provided may only be a representation of final product and may include optional equipment
