Part Number # AH460R6WDR
SKU # 2434164
AH460R6WDR

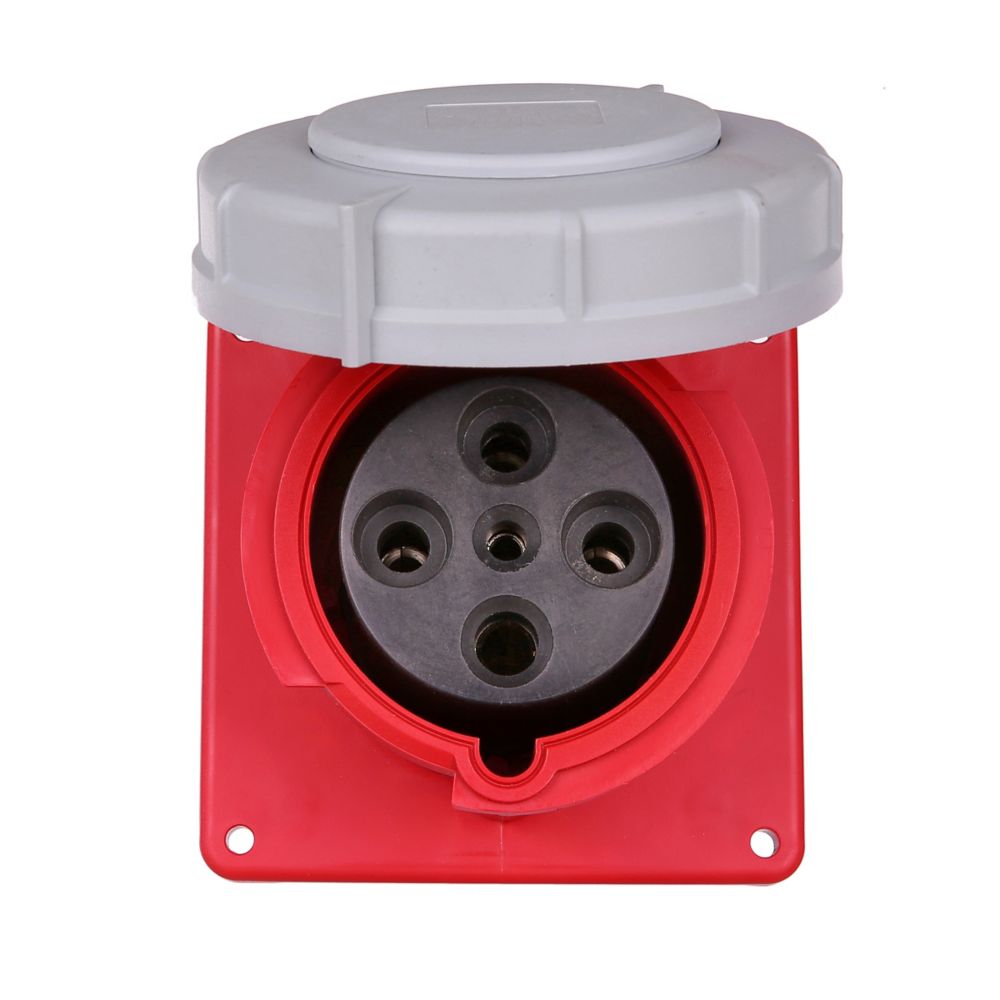

Arrowhart AH460R6WDR Arrow Hart Pin And Sleeve
Part Number # AH460R6WDR
SKU # 2434164
$7702.24 / 16Each
Arrowhart AH460R6WDR Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH460R6WDR |
| SKU #: | 2434164 |
| Amperage Rating: | 60/63 A |
| Dimensions: | 4.5 in H x 4.5 in W x 5.32 in L |
| Enclosure: | IP67/IP69K |
| Number of Poles: | 3 |
| Number of Wires: | 4 |
| Type: | Receptacle |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121404 |
| UPC: | 00032664007033 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7702.24 / 16Each
Quantity:
Arrowhart AH460R6WDR Arrow Hart Pin And Sleeve
Brand: Arrowhart
Part Number: AH460R6WDR
Additional Description: AHWD-AH460R6WDR Rec Pin&Slv 60/63A 3PH 380-415V 3P4W RD
Catalog Description: Eaton Arrow Hart pin and sleeve receptacle, IP69K Rated, 60/63A, 60/63A 3Ø 380-415V, three-pole, #8 - #2 AWG, #10 - #2 AWG (Ground), #12 - #16 AWG (Pilot), nickel plated brass, 4 wire
AH460R6WDR Item Features
- Watertight sealing provides IP69K protection so you can feel confident in even the most severe washdown environments
- Threaded NPT cable entry provides efficient means of attaching flexible conduit or wire mesh grips
- https://www.youtube.com/watch?v=ued4JEKvrPQ
AH460R6WDR Standards
IP69K RatedSKU #2434164Part Number #AH460R6WDRUNSPSC39121404UPC00032664007033
Image provided may only be a representation of final product and may include optional equipment
