Part Number # AH5262B
SKU # 2256725

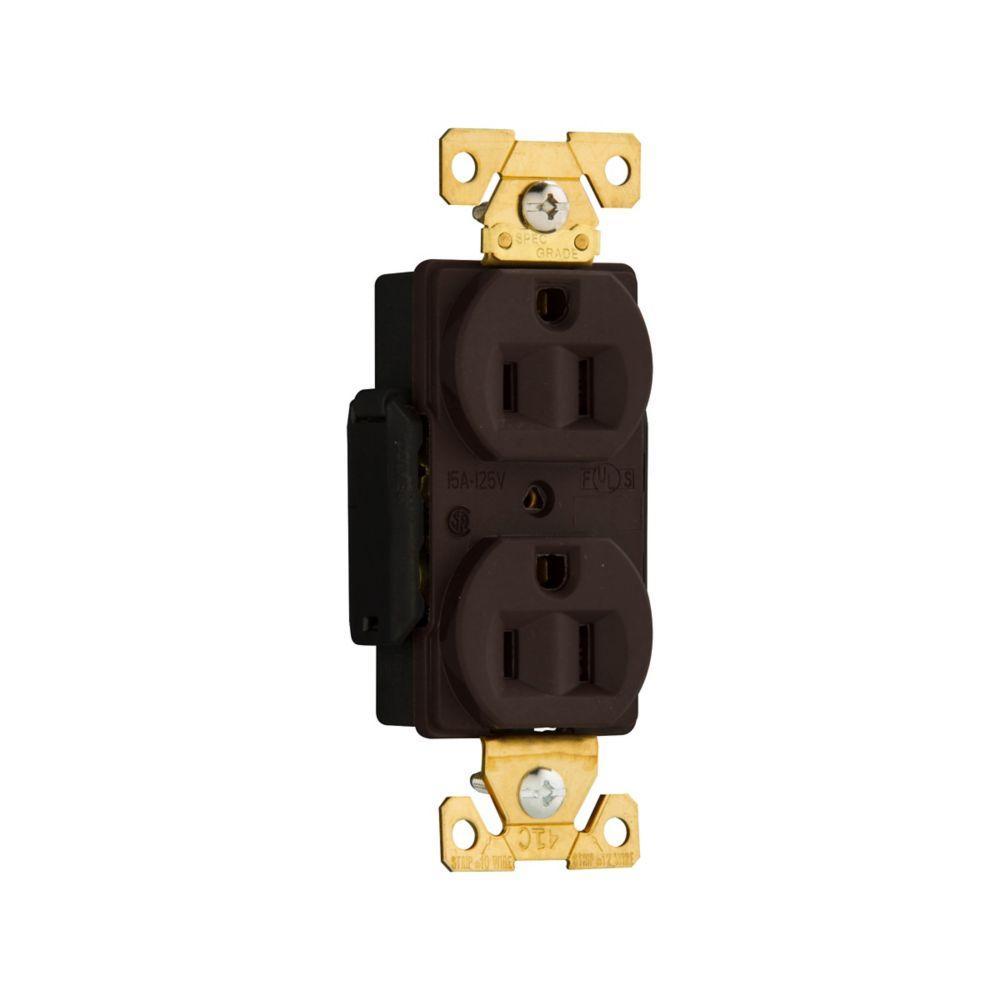

Image provided may only be a representation of
final product and may include optional equipment
AH5262B
Arrowhart AH5262B Devices Straight Blade Receptacle
Part Number # AH5262B
SKU # 2256725
Arrowhart AH5262B Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH5262B |
| SKU #: | 2256725 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 4.19 in H x 1.32 in W x 0.88 in D |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | AH5262 |
| Temperature Rating (Degrees F): | -4 to 158, -4 to 158 deg F |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | Duplex Premium |
| Country of origin: | MX |
| Material: | Glass Filled Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664703607 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart AH5262B Devices Straight Blade Receptacle
Brand: Arrowhart
Part Number: AH5262B
EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Duplex Premium, Series: AH5262, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, -4 to 158 deg F, Screw Terminal, Glass Filled Nylon, Brown, 4.19 in H x 1.32 in W x 0.88 in D Dimensions
Additional Description: AHWD-AH5262B Recp Dup 15A125V 2P3W Brass Strap B&S BR
Catalog Description: Eaton Arrow Hart extra heavy-duty industrial specification grade duplex receptacle, #14-10 AWG, 15A, Industrial, Flush, 125V, Back and side, Brown, Brass, Nylon face, Glass-filled nylon base, 5-15R, Duplex, Screw, Nylon, Core pack
AH5262B Application
Industrial Receptacle ApplicationsAH5262B Item Features
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- All terminal and mounting screws Triple-combination (slot/Phillips/Robertson) head for maximum installer flexibility
- Long, broad mounting strap helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- Exclusive screw terminal guards provide fast, easy insulation from conductive surfaces
- Exclusive 5-leaf solid brass line contacts provides consistent performance and superior plug retention
- Rigid, glass reinforced nylon base lends ultimate strength and superior high heat resistance in contact carrier
- 0.05 in (1.27 mm) solid brass mounting strap with non-riveted, integral 1-piece grounding system for highest durability assures superior ground integrity under heaviest use
- Nylon face, glass filled nylon base
- Flush mounting
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
AH5262B Standards
NOM,UL,Federal Specification Classification W-C-596F,RoHS CompliantSKU #2256725Part Number #AH5262BUNSPSC39121406UPC00032664703607
