Part Number # AH5266
SKU # 2284864
AH5266

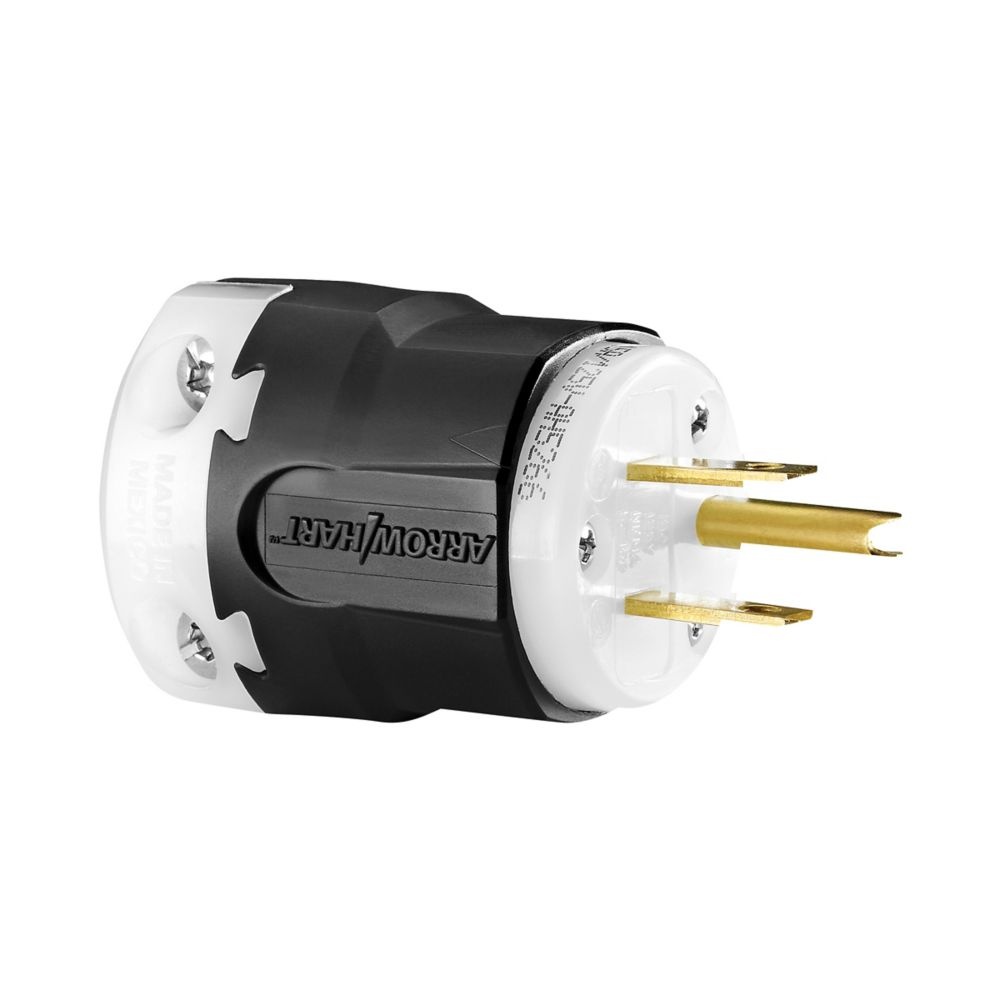

Arrowhart AH5266 Devices Ultra Grip&trade Straight Blade Plug
Part Number # AH5266
SKU # 2284864
Arrowhart AH5266 Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH5266 |
| SKU #: | 2284864 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.33 to 0.66, 0.33 to 0.66 in |
| Dimensions: | 2.59 in L x 1.46 in W |
| NEMA Rating: | NEMA 5-15P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back Wire/Screw, Threaded |
| Type: | Grounding |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00032664737503 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart AH5266 Devices Ultra Grip&trade Straight Blade Plug
Brand: Arrowhart
Part Number: AH5266
EATON Arrow Hart Eaton Wiring Devices Ultra Grip Straight Blade Plug, Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Back Wire/Screw Terminal, Nylon, Black/White, 2.59 in L x 1.46 in W Dimensions
Additional Description: AHWD-AH5266 Plug 15A 125V 2P3W Str BW
Catalog Description: Eaton Arrow Hart ultra grip straight blade plug, #18 - #12 AWG, 15A, Industrial, 125V, Back wire, Black, Brass, Nylon, 5-15P, Two-pole, three-wire, grounding, Screw, 0.33-0.66", Nylon, Core pack
AH5266 Item Features
- Rugged nylon body resists impact and exposure to chemicals
- Dual range cord grip provides positive cord gripping while limiting strain on conductors
- Clear terminal cover allows for easy inspection of conductors and terminations
- High impact-resistant thermoplastic housing with finger grip grooves
- Assembly screws are speed threaded and captive, reducing installation time
- Solid brass plug blades are firmly embedded in body
- Terminals in individual chambers to positively insulate conductors
- Terminal screws are backed-out and ready to wire
- Neoprene gasket seals around cord for added terminal protection from external elements
- Rugged high strength construction
- Unique internal clamp design secures cord during assembly, reducing installation time
- 18 to 10 AWG wire
- Nylon outer shell/interior body, polycarbonate terminal retainer
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
AH5266 Standards
cULus Listed,Federal Specification Classification W-C-596F,NOM,RoHS CompliantSKU #2284864Part Number #AH5266UNSPSC39121402UPC00032664737503
Image provided may only be a representation of final product and may include optional equipment
