Part Number # AH5969Y
SKU # 2231322
AH5969Y

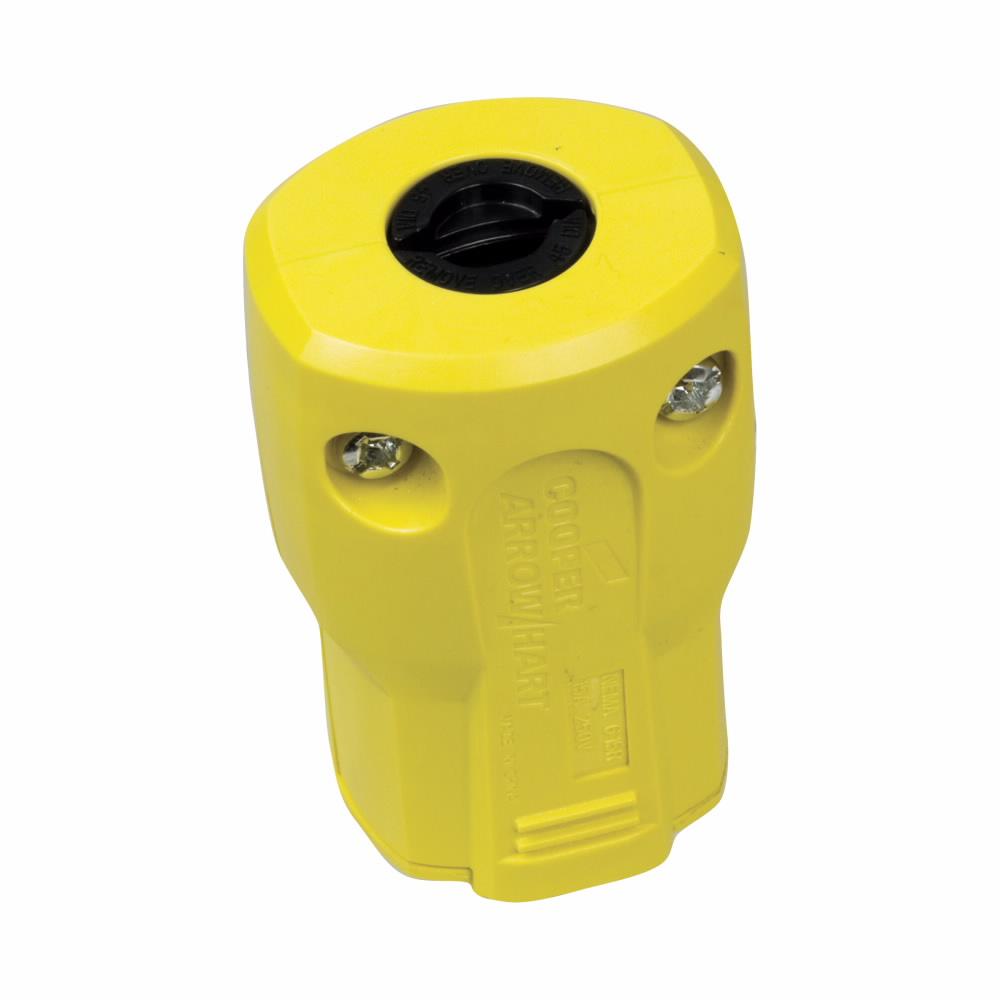

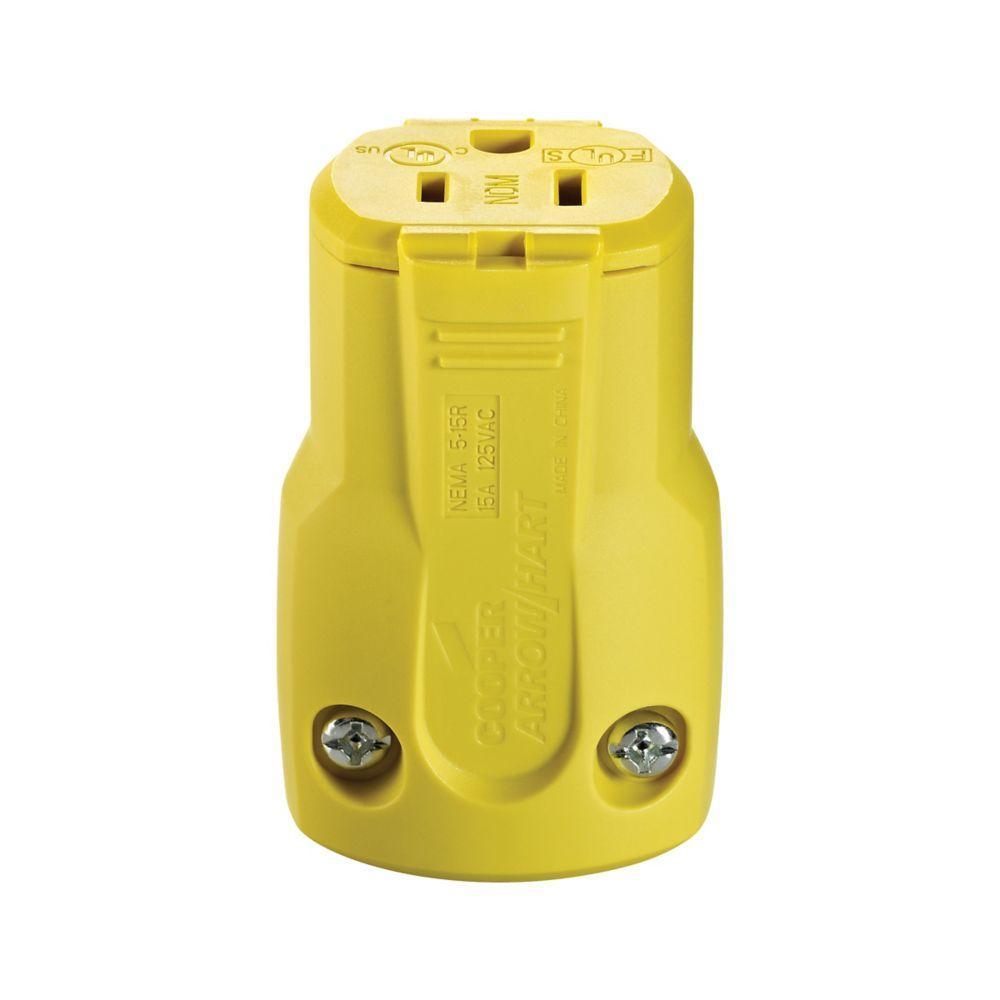

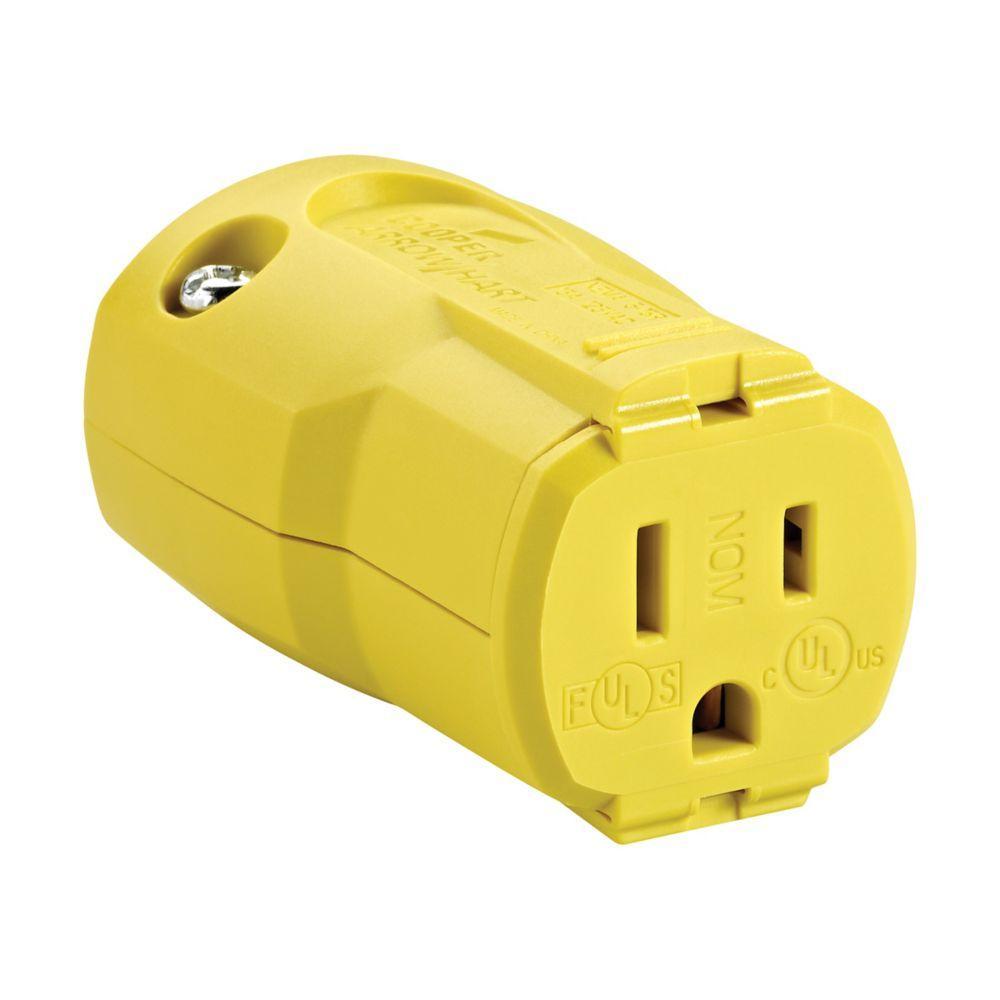

Arrowhart AH5969Y Straight Blade Connector
Part Number # AH5969Y
SKU # 2231322
Arrowhart AH5969Y Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH5969Y |
| SKU #: | 2231322 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.22 to 0.66, 0.22 to 0.66 in, 0.23 to 0.72 |
| Dimensions: | 1.67 in L x 2.59 in W x 1.46 in H, 2.589 in L x 1.46 in W x 1.67 in H |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 |
| Terminal Type: | Back Wired, Screw |
| Type: | Grounding, Grounding Quick Grip |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121402 |
| UPC: | 00032664722851 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart AH5969Y Straight Blade Connector
Brand: Arrowhart
Part Number: AH5969Y
EATON Wiring Devices Arrow Hart Straight Blade Connector, Grounding Quick Grip, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, 0.22 to 0.66 in Diameter Cord, Screw Terminal, Nylon, Yellow, 1.67 in L x 2.59 in W x 1.46 in H Dimensions
Additional Description: AHWD-AH5969Y Conn 15A 125V 2P3W Str QuickGrip YL
Catalog Description: Eaton Arrow Hart quick grip straight blade connector, #18-12 AWG, 15A, Industrial, 125V, Back wire, Yellow, Brass, Nylon, 5-15R, Two-pole, three-wire, grounding, Screw, 0.22-0.66" in diameter, Nylon, Core pack
AH5969Y Item Features
- Single piece hinged body reduces number of assembly screws to speed installation
- Unique terminal configuration places screws in only two directions, reducing installation time
- Clear terminal cover and large funneled wire entry ensures quick and accurate wiring
- Signature exterior design molds to hand with scallop feature for extra grip for insertion and removal
- Superior materials and rugged construction provide abuse resistance and reliable performance
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
AH5969Y Standards
cULus Listed,RoHS CompliantSKU #2231322Part Number #AH5969YUNSPSC39121402UPC00032664722851
Image provided may only be a representation of final product and may include optional equipment
