Brand: Arrowhart

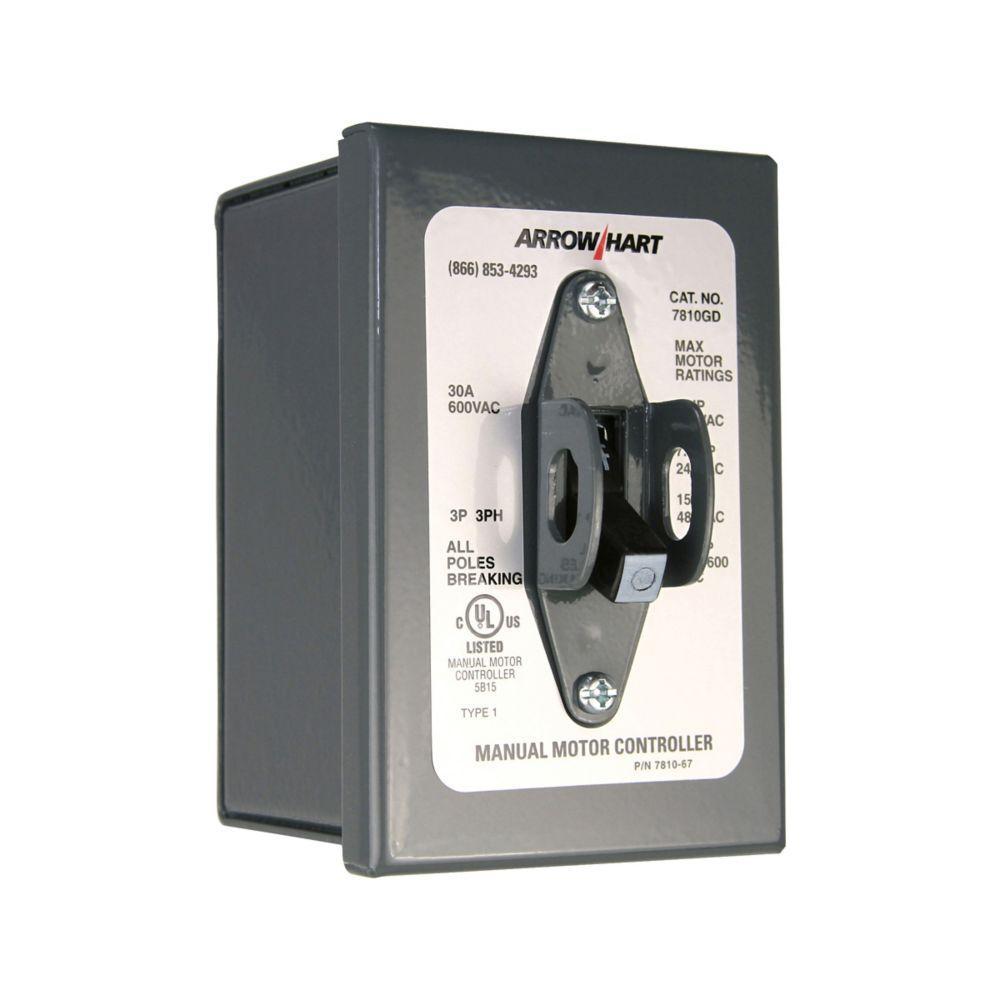

Arrowhart AH7810GD Manual Motor Controller Switch
Part Number # AH7810GD
SKU # 2235109
$240.95 / Each
Arrowhart AH7810GD Key Features
Brand: Arrowhart
Part Number # AH7810GD
SKU #2235109
Actuator: Toggle
Amperage Rating: 30, 30 A
Contact Configuration: 3PST
Dimensions: 4-3/4 in L x 3 in W x 3-1/4 in H
Enclosure: NEMA 1
Environmental Conditions: -4 to 140 deg F Operating Temperature
Mounting: Surface
Number of Poles: 3
Operating Cycles: 30000, 30000 Cycles
Power Rating: 3, 7-1/2, 15, 3, 7-1/2, 15 hp
Series: AH7800
Terminal Type: Front Wire/Screw/Clamp, Front Wired/Screw/Clamp
Type: 3-Phase Industrial Grade
Voltage Rating: 600, 600 VAC
Color: Gray
Country of origin: MX
Material: Glass Filled Nylon
Manufacturer Name: Eaton
UNSPSC: 39122223
UPC: 00040893598604
$240.95 / Each
- EATON Manual Motor Controller Switch, 3-Phase Industrial Grade, Series: AH7800, 600 VAC, 30 A, 3, 7-1/2, 15 hp Power, 3PST Contact Configuration, 3 Pole, Toggle Actuator, NEMA 1 Enclosure, Surface Mounting, Front Wire/Screw/Clamp Terminal, 30000 Cycles Operating Cycles, Glass Filled Nylon, Gray, Environmental Conditions: -4 to 140 deg F Operating Temperature, 4-3/4 in L x 3 in W x 3-1/4 in H Dimensions
AH7810GD Item Features
- Compact design provides extra wiring room, high impact-resistant, glass filled nylon construction
- Easy to read electrical ratings on rugged steel mounting straps
- Highly visible "ON/OFF" markings on large, rugged toggles
- Distinct wire pockets and thick wall arc barriers prevent strands from straying
- Screw and clamp or box lug terminals to meet individual project requirements
- Two sets of contacts per pole distribute load and make/break action for long, reliable duty
- 3 hp at 120 VAC, 7-1/2 hp at 240 VAC, 15 hp at 480 VAC, 15 hp at 600 VAC
AH7810GD Standards
cULus Listed to UL 508, File No. E135083|UL 94-V-0 Flammability Rating|NAFTA CompliantSKU #2235109Part Number #AH7810GDUNSPSC39122223UPC00040893598604
