Part Number # AH7810UD
SKU # 1705

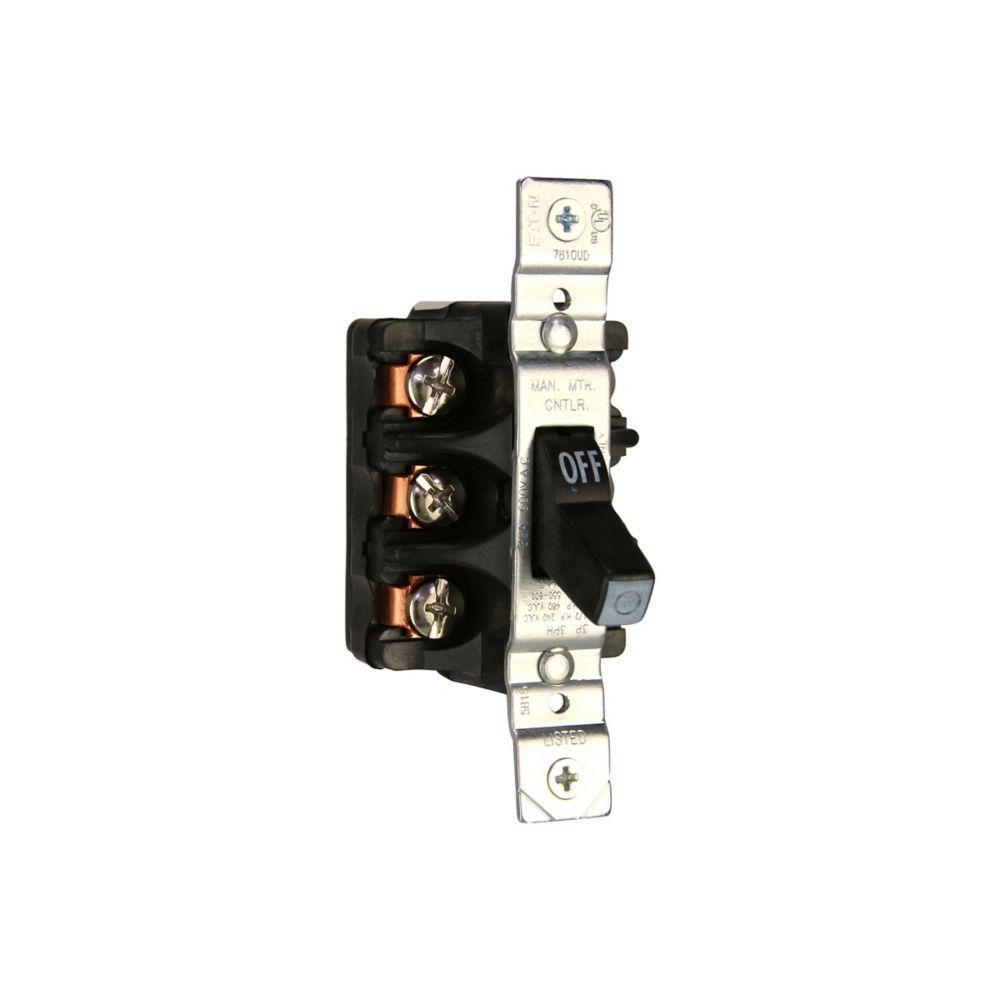

Image provided may only be a representation of
final product and may include optional equipment
AH7810UD
Arrowhart AH7810UD Wiring Devices Manual Motor Control Switch
Part Number # AH7810UD
SKU # 1705
Arrowhart AH7810UD Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AH7810UD |
| SKU #: | 1705 |
| Action: | Maintained |
| Amperage Rating: | 30, 30 A |
| Connection: | Box Lug/Clamp/Front Wired/Screw |
| Contact Configuration: | 3PST, TPST |
| Contact Rating: | 30 A at 600 V AC, 30 A at 600 VAC |
| Dimensions: | 3.81 in L x 1.69 in W x 1.75 in H |
| Enclosure: | NEMA 1/3R |
| Mounting: | Panel |
| Number of Poles: | 3 |
| Type: | 2-Position |
| Country of origin: | MX |
| Material: | Glass Filled Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122223 |
| UPC: | 00040893006048 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart AH7810UD Wiring Devices Manual Motor Control Switch
Brand: Arrowhart
Part Number: AH7810UD
EATON Arrow Hart Eaton Wiring Devices Manual Motor Control Switch, 2-Position, 600 VAC, 30 A, 3 hp, 7.5 hp, 15 hp Power, TPST Contact Configuration, 30 A at 600 VAC Contact, 3 Poles, Maintained, Box Lug/Clamp/Front Wired/Screw Connection, NEMA 1/3R Enclosure, Panel Mounting, Glass Filled Nylon, Black, 3.81 in L x 1.69 in W x 1.75 in H Dimensions
Additional Description: AHWD-AH7810UD Man Cont 30A 600VAC 3P ST FrontWire BK MAN CONT 30A 600VAC 3P ST FRONTWIRE
Catalog Description: Eaton manual motor controller, Switch only, #14-10 AWG, 30A, Industrial, Panel, 600V, Front wired screw and clamp, Maintained contact, Black, Open, Three-pole, Two-position, Three-phase, Toggle switch, Copper-alloy terminal, Single-throw
AH7810UD Application
Industrial ApplicationsAH7810UD Item Features
- Totally enclosed body eliminates exposed contacts
- Enclosures can be padlocked to conform to OSHA lockout requirements
- Cam and roll design provides dependable, trouble-free switch action
- Separate arc quenching chambers isolate each pole
- Front terminals are designed for easy wiring
AH7810UD Standards
cULus Listed,RoHS Compliant,NAFTASKU #1705Part Number #AH7810UDUNSPSC39122223UPC00040893006048
