Arrowhart AHCL1630P Arrow Hart Locking Device Plug
Part Number # AHCL1630P
SKU # 2404157
$752.50 / 10Each
Arrowhart AHCL1630P Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AHCL1630P |
| SKU #: | 2404157 |
| Amperage Rating: | 30 A |
| Cord Diameter: | 0.38 to 1.16 in |
| Dimensions: | 2.82 in H x 2.3 in W x 2.13 in D |
| NEMA Rating: | NEMA L16-30 |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 140 deg F |
| Terminal Type: | Back Wire |
| Type: | 3-Phase Color Coded Ultra Grip |
| Material: | Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121403 |
| UPC: | 00032664755736 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$752.50 / 10Each
Quantity:
Arrowhart AHCL1630P Arrow Hart Locking Device Plug
Brand: Arrowhart
Part Number: AHCL1630P
Additional Description: AHWD-AHCL1630P CCL Plug 30A 480V 3PH 3P4W-RD&BK
Catalog Description: Eaton Arrow Hart Color Coded Locking Plug, #14-8 AWG, 30A, Industrial, 480 V, Back, Red, Black, Ultra grip, Nylon, L16-30, Three-pole, Four-wire, Nylon, 0.38 - 1.16" (9.5 - 29.5mm), -40°C (w/o impact) to 60°C (-40°F to 140°F)
AHCL1630P Item Features
- Built with a contemporary flare and oval ergonomic design for a comfortable yet secure feel, ultra grip plugs and connectors offer excellent reliability and durability
- A dual dovetail design provides superior cord grip retention and the grommet allows usage across a wide range of cord diameters
- Additionally, reversible inserts in the cord grip allow for exceptional clamp force on large diameter cords
- https://www.youtube.com/watch?v=DG80BN8eVi8
AHCL1630P Standards
NOM,cULus Listed,NAFTA,RoHS CompliantSKU #2404157Part Number #AHCL1630PUNSPSC39121403UPC00032664755736

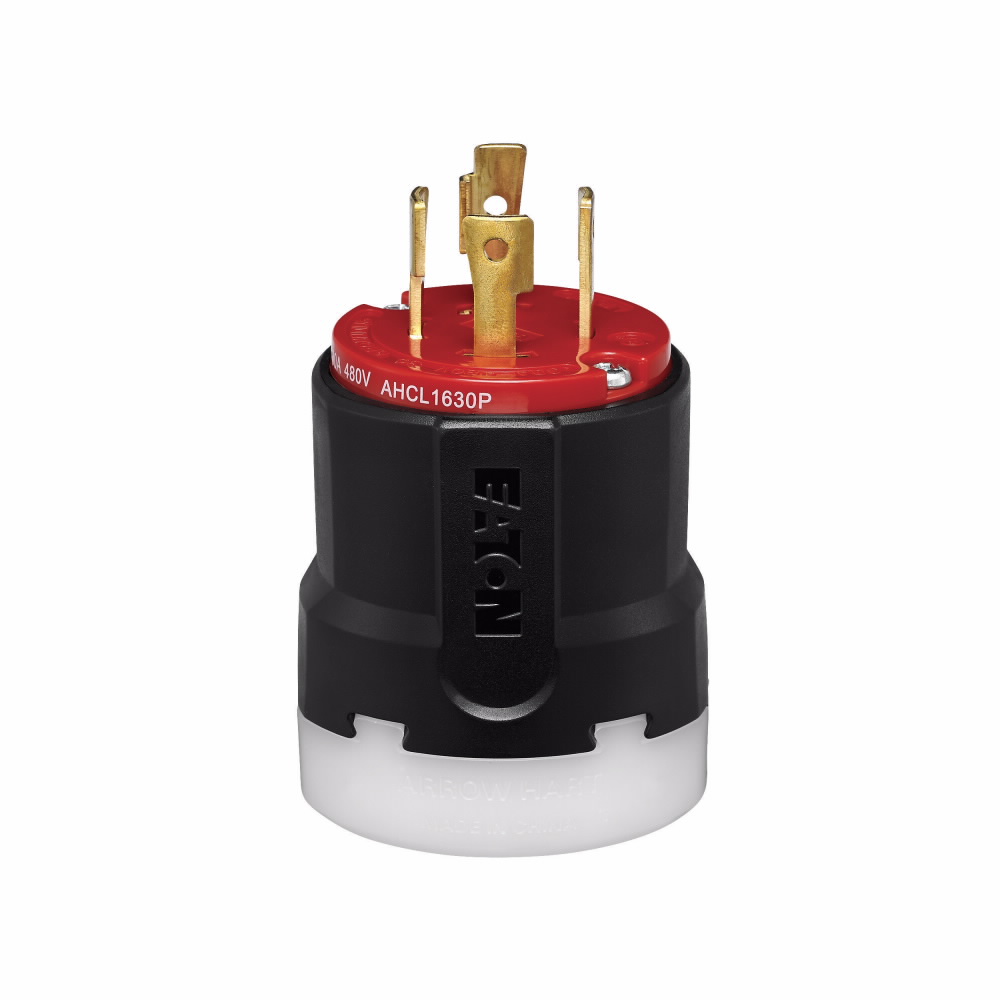

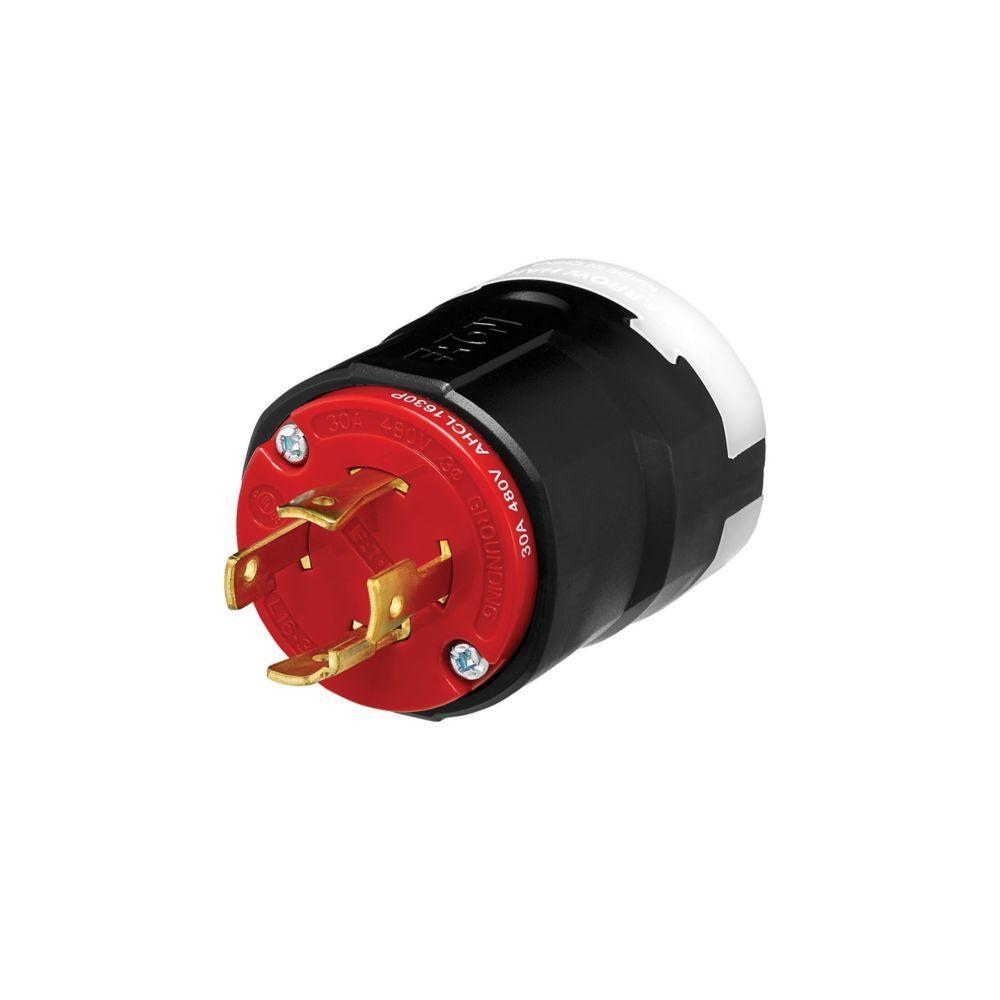

Image provided may only be a representation of final product and may include optional equipment
