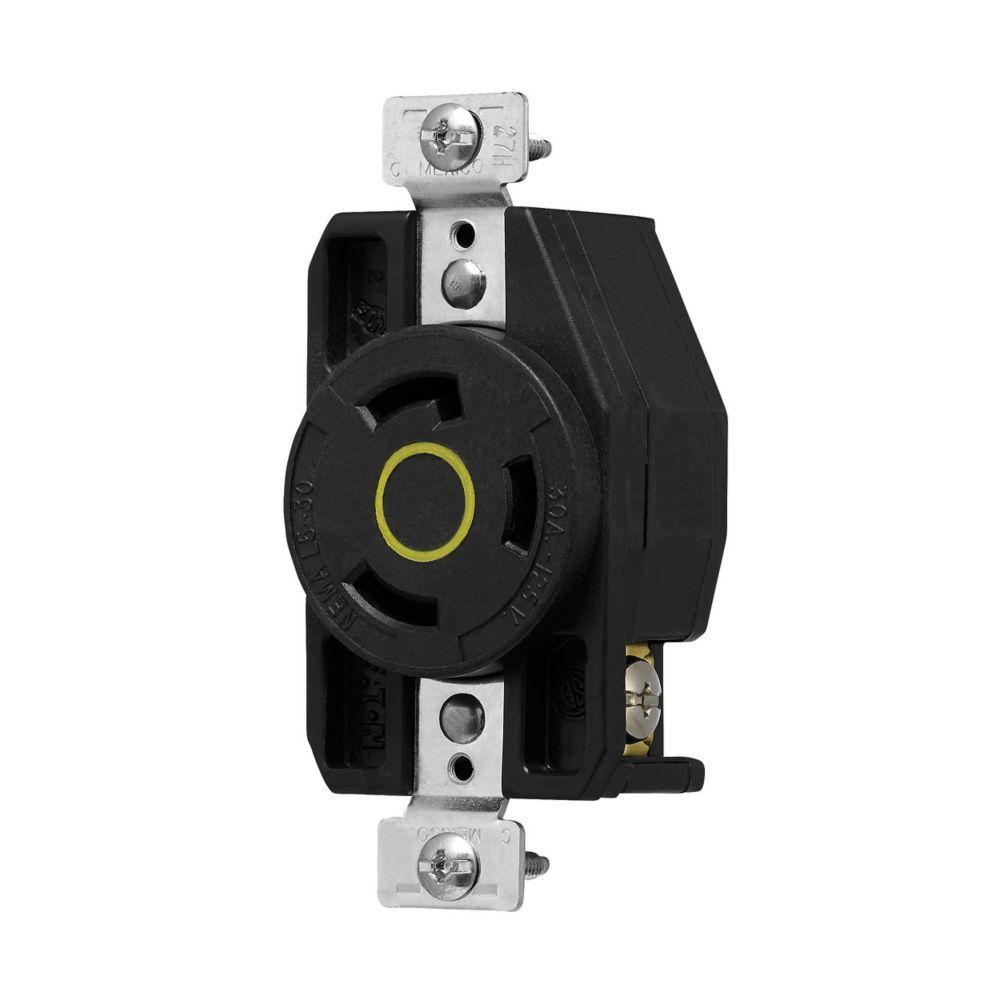

Arrowhart AHCL530R Locking Receptacle
Part Number # AHCL530R
SKU # 2434328
$48.36 / Each
Arrowhart AHCL530R Key Features
Brand: Arrowhart
Part Number # AHCL530R
SKU #2434328
Amperage Rating: 30 A
Cord Diameter: 0.375 to 1.156 in
Dimensions: 1.63 in L x 1.06 in W x 3.64 in H
NEMA Rating: L5-30
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 158 deg F
Terminal Type: Back/Side Wire Clamp
Type: Color Coded Single Ultra Grip
Voltage Rating: 125 VAC
Color: Black/Yellow
Material: Glass Filled Nylon
Manufacturer Name: Eaton
UNSPSC: 39121403
UPC: 00032664758683
$48.36 / Each
Arrowhart AHCL530R Locking Receptacle
Additional Description: AHWD-AHCL530R CCL Recp 30A 125V 2P3W Y&BK
Catalog Description: Eaton Arrow Hart Color Coded Locking Receptacle, #14-8 AWG, 30A, Industrial, 125V, Back and Side, Yellow, Black, Ultra grip, Glass filled Nylon, L5-30, Two-pole, Three-wire, Glass-filled Nylon, -40C (w/o impact) to 70C (-40F to 158F)
AHCL530R Application
Industrial Facilities and FactoriesAHCL530R Item Features
- Voltage color coding
- Rugged glass filled nylon body
- Clearly marked rating, NEMA configuration and approval listings on receptacle face
- 1-piece brass contacts offer superior performance and minimal heat rise
- Back and side wiring terminal clamps for easy, secure wiring
- https://www.youtube.com/watch?v=DG80BN8eVi8
AHCL530R Standards
CSA Certified|Federal Specification Classification 6233 01|NAFTA Certified|NOM Certified|RoHS Compliant|UL ListedSKU #2434328Part Number #AHCL530RUNSPSC39121403UPC00032664758683
