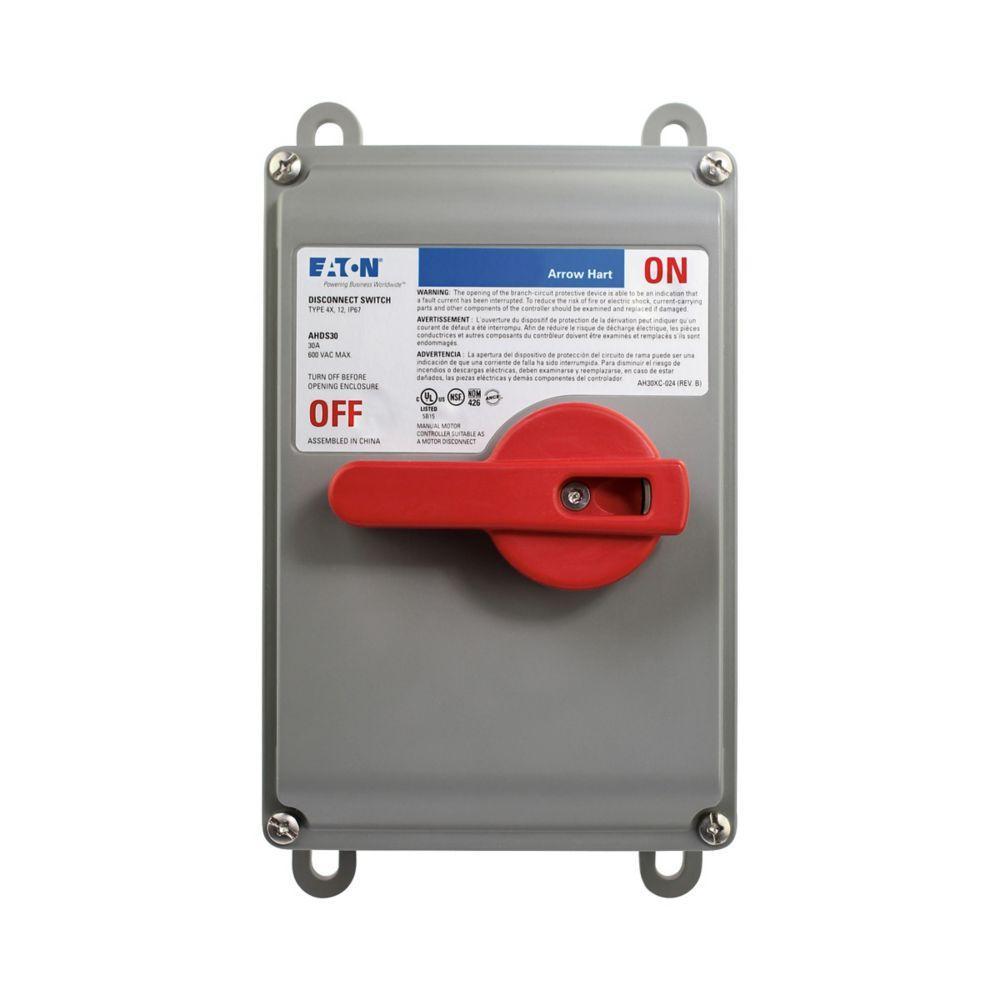

Arrowhart AHDS30 Motor Control Disconnect Switch
Part Number # AHDS30
SKU # 2428854

AHDS30
Arrowhart AHDS30 Motor Control Disconnect Switch
Part Number # AHDS30
SKU # 2428854
Arrowhart AHDS30 Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AHDS30 |
| SKU #: | 2428854 |
| Type: | 3-Pole Industrial |
| UNSPSC: | 39122223 |
| UPC: | 00032664741326 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Arrowhart AHDS30 Motor Control Disconnect Switch
Brand: Arrowhart
Part Number: AHDS30
EATON Arrow Hart Manual Motor Control Disconnect Switch, Non-Fusible, 600 V AC, 30 A, 10 hp, 3 Phase, 3 Poles, NEMA 4/4X/12/IP67, Flush Mount, -58 to 140 deg F, 8.75 in L x 5.68 in W x 5 in H, Thermoplastic
Additional Description: AHWD-AHDS30 30A Disconnect Switch
Catalog Description: Eaton motor control disconnect switch, #14-10 AWG, 30A, Industrial, Mounting feet/DIN rail, flush or 1/4" spacing, 600V, Gray, NEMA 4X, Enclosure: VALOX thermoplastic, Washdown, Three-pole, Three-phase, Rotary switch, Thermoplasti
AHDS30 Application
Industrial ApplicationsAHDS30 Item Features
- Thermoplastic enclosure made from VALOX resin provides high impact strength and excellent corrosion resistance
- Adjustable mounting feet for flexible positioning options
- High visibility red handle can be padlocked to meet OSHA lockout/tagout requirements
- Mounting feet have 2 options - flush mount or 1/4 in offset (for easy washdown behind the enclosure)
- Auxiliary contacts are available for PLC or VFD applications
- 14 to 10 AWG wire
- Heavy duty industrial switches designed for long life
- https://www.youtube.com/watch?v=FlcPJ7l4dyw
AHDS30 Standards
cULus Listed|UL 60947-1/60947-14 File NO E135083|UL94 5VA Flammability RatingSKU #2428854Part Number #AHDS30UNSPSC39122223UPC00032664741326
Image provided may only be a representation of final product and may include optional equipment
