Arrowhart AHDS60SSR Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AHDS60SSR |
| SKU #: | 2461079 |
| Actuator Type: | Red Handle |
| Dimensions: | 6-1/2 in W x 9 in D x 17-1/2 in H |
| Enclosure Type: | NEMA 4X/12/IP69K/IP66 |
| UNSPSC: | 39122233 |
| UPC: | 00032664755316 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart AHDS60SSR
Brand: Arrowhart
Part Number: AHDS60SSR

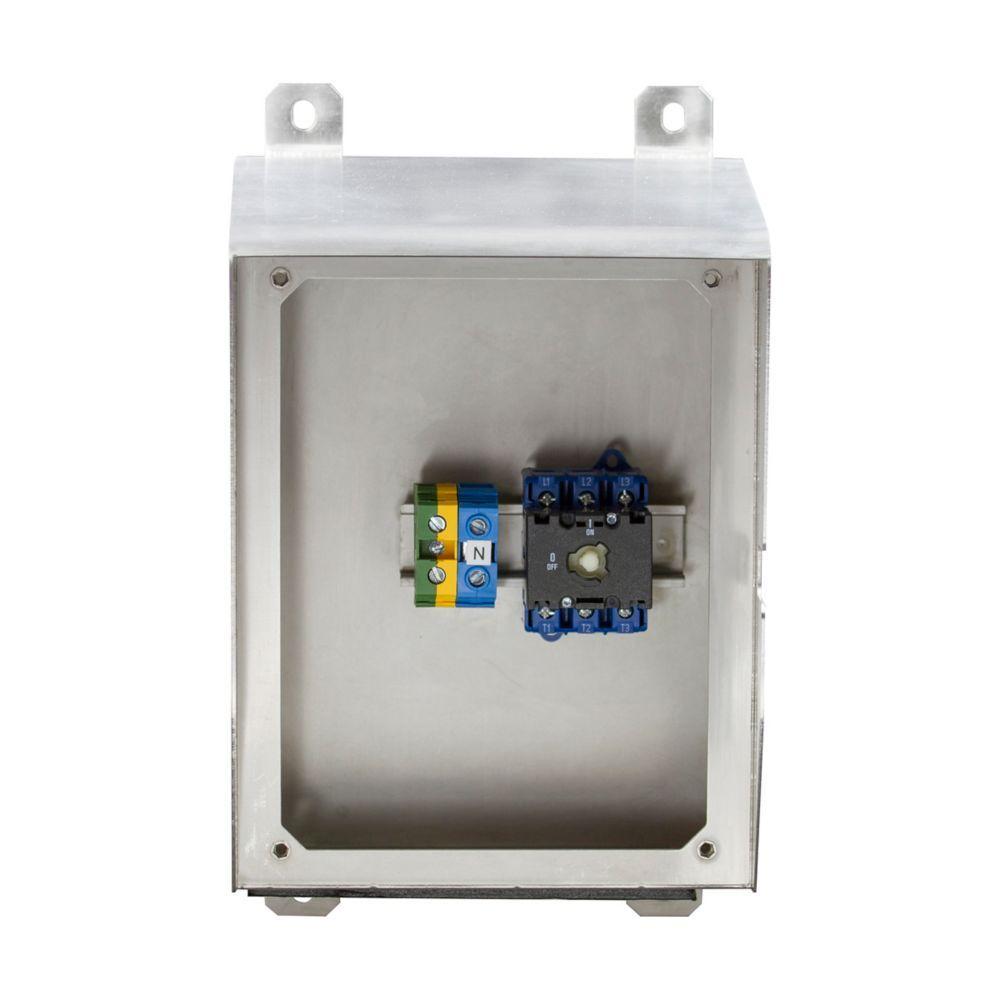

EATON Motor Control Disconnect X-switch, 600 V, 60 A, 40 hp, 3 ph, 3 Pole, 65 kA Short Circuit, Red Handle Actuator, NEMA 4X/12/IP69K/IP66 Enclosure, DIN Rail/Flush Mounting, 6-1/2 in W x 9 in D x 17-1/2 in H Dimensions, Gray
Additional Description: AHWD-AHDS60SSR Disconnect Switch, 60A TYPE 4X, 12, IP66, IP69K
Catalog Description: Eaton motor control disconnect X-switch, IP69K, IP66 Ingress, #14-4 AWG, 60A, Mounting feet/DIN rail, flush or 1/4" spacing, 600V, Gray, NEMA 4X, 12, Enclosure: 316L SS, Washdown, Three-phase, Rotary, NSF certified for food processing
AHDS60SSR Application
IndustrialAHDS60SSR Item Features
- Compact NEMA 4X, NEMA 12, IP66 and IP69K rated, stainless steel enclosure is ideal for washdown environments
- NSF listed for food processing areas
- Sloped enclosure enhances wash down and water run off
- High-visibility red handle can be padlocked to meet OSHA lockout/tagout requirements
- Retained, tri-combo screws for easy access
- Mounting feet provide full 1/4 in clearance from mounting surface
- Expanded silicone gasket for superior ingress protection and easy cleaning
- Heavy duty rotary disconnect switches designed for long life
- Enclosure assembly made of 316L stainless steel for increased corrosion resistance
- Without auxiliary contact
- https://www.youtube.com/watch?v=FlcPJ7l4dyw
AHDS60SSR Standards
NSF ListedSKU #2461079Part Number #AHDS60SSRUNSPSC39122233UPC00032664755316
Image provided may only be a representation of final product and may include optional equipment
