Part Number # AHMC340C
SKU # 2252871
AHMC340C

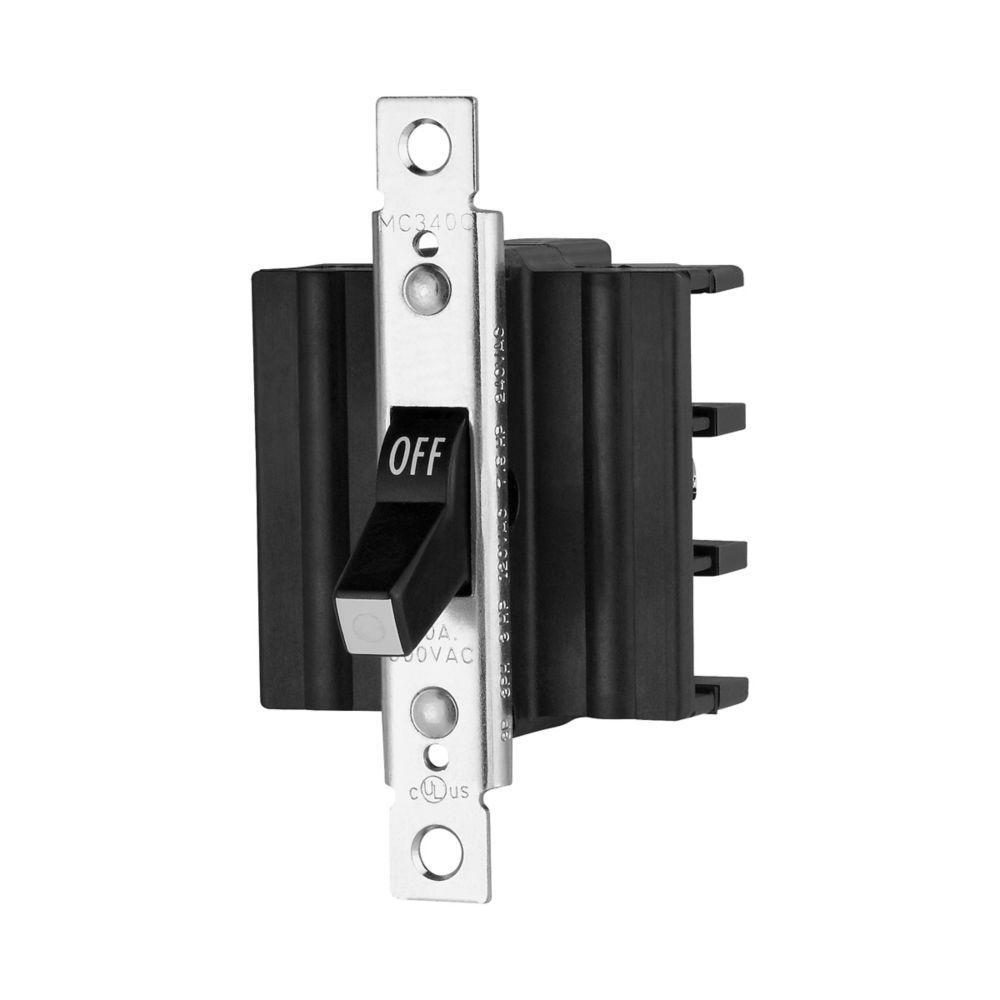

Arrowhart AHMC340C Wiring Devices Manual Motor Control Switch
Part Number # AHMC340C
SKU # 2252871
Arrowhart AHMC340C Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AHMC340C |
| SKU #: | 2252871 |
| Action: | Maintained |
| Connection: | Box Lug/Side Wired/Screw |
| Contact Configuration: | 3PST, TPST |
| Dimensions: | 3.75 in H x 2.23 in W x 1.66 in D |
| UNSPSC: | 39122223 |
| UPC: | 00040893653891 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart AHMC340C Wiring Devices Manual Motor Control Switch
Brand: Arrowhart
Part Number: AHMC340C
EATON Arrow Hart Eaton Wiring Devices Manual Motor Control Switch, 2-Position, 600 VAC, 40 A, 5 hp, 10 hp, 25 hp, 30 hp, TPST, 40 A at 600 VAC Contact, 3 Poles, Maintained, Toggle, Side Wired/Screw/Box Lug, Panel, Glass Filled Nylon, Black, 3.75 in H x 2.23 in W x 1.66 in D
Additional Description: AHWD-AHMC340C Man Cont 2Pos 3PST 40A 600VAC Clamp BK
Catalog Description: Eaton manual motor controller, Switch only, #14-8 AWG, 40A, Industrial, Panel, 600V, Side wired, Maintained contact, Black, Open, Three-pole, Three-phase, Toggle, Copper-alloy terminal, Single-throw, Glass-filled nylon
AHMC340C Application
Industrial ApplicationsAHMC340C Item Features
- Compact design provides extra wiring room
- High impact-resistant, glass filled nylon construction
- Easy-to read electrical ratings on rugged steel mounting straps
- Highly visible ON/OFF markings on large, rugged toggles
- Distinct wire pockets and THK wall arc barriers prevent strands from straying
- 2-sets of contacts per pole distribute load and make/break action for long, reliable duty
- Totally enclosed body eliminates exposed contacts
- Cam and roll design provides dependable, trouble-free switch action
- Double break, silver alloy, butt type contacts provide long life
- Separate arc quenching chambers isolate each pole
- Front terminals are designed for easy wiring
AHMC340C Standards
cULus Listed,RoHS Compliant,NAFTASKU #2252871Part Number #AHMC340CUNSPSC39122223UPC00040893653891
Image provided may only be a representation of final product and may include optional equipment
