Arrowhart AHMC360L-3 Wiring Devices Manual Motor Control Switch
Part Number # AHMC360L-3
SKU # 2343687

AHMC360L-3
Arrowhart AHMC360L-3 Wiring Devices Manual Motor Control Switch
Part Number # AHMC360L-3
SKU # 2343687
Arrowhart AHMC360L-3 Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AHMC360L-3 |
| SKU #: | 2343687 |
| Actuator: | Pistol Handle |
| Connection: | Box Lug/Side Wired |
| Contact Rating: | 60 A at 600 V AC |
| Dimensions: | 6 in L x 7 in W x 9 in H |
| Enclosure: | NEMA 1/3R |
| UNSPSC: | 39122223 |
| UPC: | 00040893654058 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Arrowhart AHMC360L-3 Wiring Devices Manual Motor Control Switch
Brand: Arrowhart
Part Number: AHMC360L-3
EATON Arrow Hart Eaton Wiring Devices Manual Motor Control Switch, 600 V AC, 60 A, 3 hp, 5 hp, 15 hp Power, 3PST Contact Configuration, 60 A at 600 V AC Contact, 3 Pole, Maintained Action, Pistol Handle Actuator, Box Lug/Side Wired Connection, NEMA 1/3R Enclosure, Wall Mounting, Glass Filled Nylon, 6 in L x 7 in W x 9 in H Dimensions
Additional Description: AHWD-AHMC360L-3 AHMC360L Mounted in NEMA 3R Enclosure ENCLOSURE
Catalog Description: Eaton manual motor controller, #4 AWG, 60A, Panel, 600V, Side wired box lug, Maintained contact, Gray, NEMA 3R, Enclosure: Copperless aluminum, Three-pole, Three-phase, Toggle switch, Copper-alloy terminal, Single-throw, Glass-filled nylon
AHMC360L-3 Application
Industrial ApplicationsAHMC360L-3 Item Features
- Compact design provides extra wiring room
- High impact-resistant, glass filled nylon construction
- Easy-to read electrical ratings on rugged steel mounting straps
- Highly visible ON/OFF markings on large, rugged toggles
- Distinct wire pockets and THK wall arc barriers prevent strands from straying
- 2-sets of contacts per pole distribute load and make/break action for long, reliable duty
- Totally enclosed body eliminates exposed contacts
- Cam and roll design provides dependable, trouble-free switch action
- Double break, silver alloy, butt type contacts provide long life
- Separate arc quenching chambers isolate each pole
- Front terminals are designed for easy wiring
AHMC360L-3 Standards
cULus Listed,NAFTASKU #2343687Part Number #AHMC360L-3UNSPSC39122223UPC00040893654058

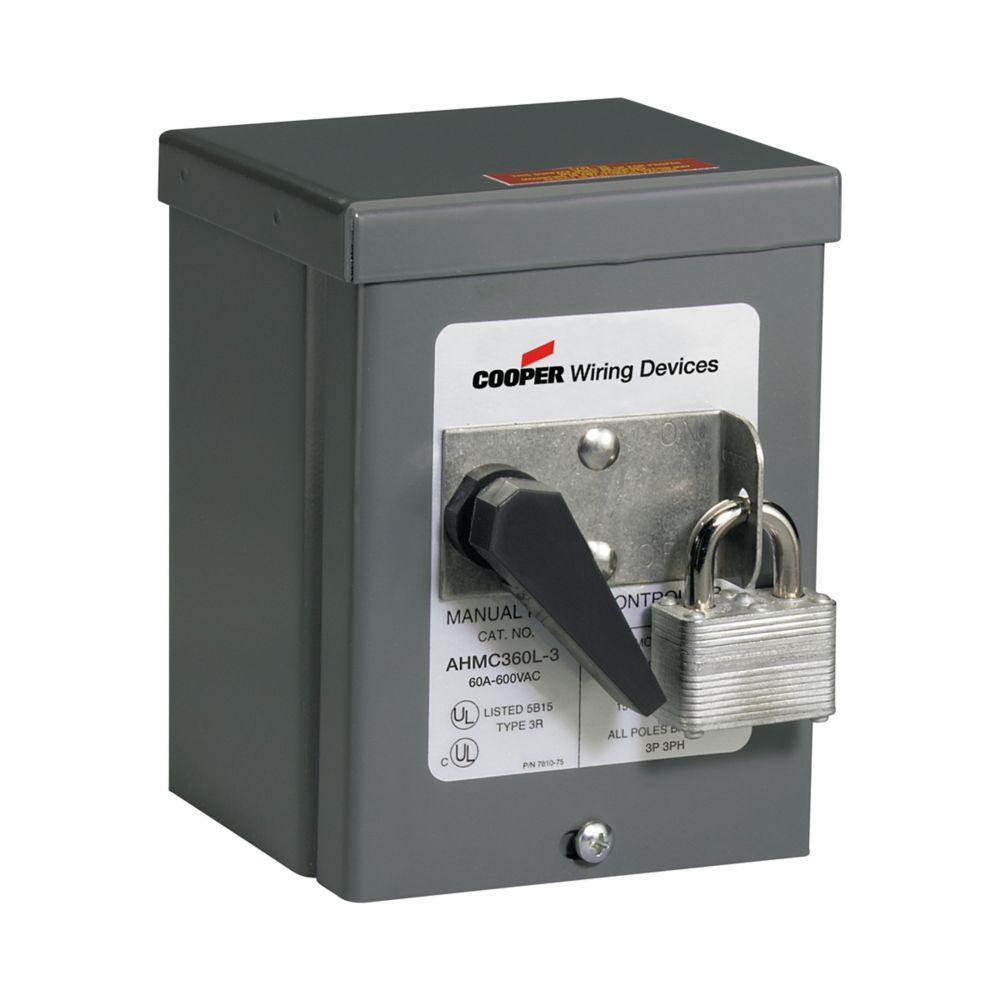

Image provided may only be a representation of final product and may include optional equipment
