Brand: Arrowhart

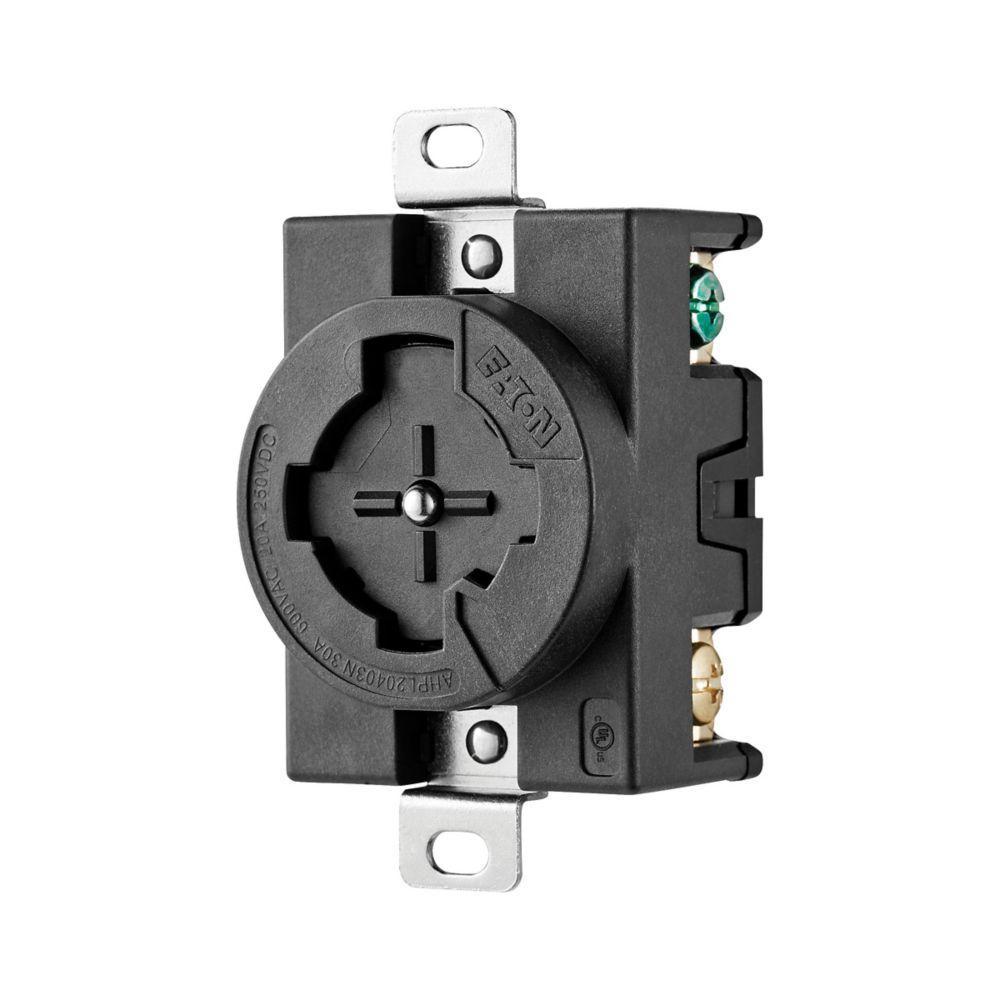

Arrowhart AHPL20403N Power Lock Receptacle
Image Disclaimers Message
Brand: Arrowhart
Arrowhart AHPL20403N Power Lock Receptacle
Brand: Arrowhart
Arrowhart AHPL20403N Power Lock Receptacle
Part #:AHPL20403N
SKU #: 2439261
$158.09/EA
Key Features
Part #:AHPL20403N
SKU #: 2439261
Brand: Arrowhart
Amperage Rating: 30 A
Dimensions: 3.6 in H
NEMA Rating: Non-NEMA
Number of Poles: 3
Number of Wires: 4
$158.09/EA
- Arrow Hart power lock devices are designed for safety by utilizing a spring loaded shutter on connectors and receptacles to completely isolate energized contact
- Spring-loaded safety shutter automatically ejects the plug if it has not been properly locked into the female device (receptacle or connector) which eliminates teasing the contacts and insures long-lasting performance
- Spring-loaded safety shutter helps to contain and extinguish arcs if the devices are accidentally unmated under load, providing a quicker disconnect and higher degree of safety for the user
- Spring-loaded safety shutter prevents the entrance of foreign matter in the female contact chamber and provides an IP30 finger-safe rating
- Amperage/voltage and configuration clearly marked on the device for easy identification of device capabilities
Specifications
Brand: Arrowhart
Amperage Rating: 30 A
Dimensions: 3.6 in H
NEMA Rating: Non-NEMA
Number of Poles: 3
Number of Wires: 4
Temperature Rating (Degrees F): -40 to 221 deg F
Terminal Type: Wiring
Voltage Rating: 600 VAC
Country of origin: CN
Material: Glass-Filled Nylon
Manufacturer Name: Eaton
UNSPSC: 39121403
UPC: 00032664747366
Arrowhart AHPL20403N Power Lock Receptacle
Additional Description: AHWD-AHPL20403N Recp Powerlock 30A/600VAC 20A/250VDC3P4W
Catalog Description: Eaton Arrow Hart locking receptacle, 20A, 30A, Industrial, 600/250V, Black, Brass, Ultra grip, Non-NEMA, Three-pole, Four-wire, Nylon
Item Features
Item FeaturesBAA Compliant|UL Listed
