AHPL20445N
Arrowhart AHPL20445N
Part Number # AHPL20445N
SKU # 2466390
$1874.90 / 10Each
Arrowhart AHPL20445N Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | AHPL20445N |
| SKU #: | 2466390 |
| Cord Diameter: | 0.38 to 1.06 in |
| Dimensions: | 2.65 in W x 4.95 in H |
| NEMA Rating: | Non-NEMA |
| Terminal Type: | Pressure Wire |
| Type: | Ultra Grip |
| Material: | Glass-Filled Nylon |
| UNSPSC: | 39121403 |
| UPC: | 00032664747410 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1874.90 / 10Each
Quantity:
Arrowhart AHPL20445N
Brand: Arrowhart
Part Number: AHPL20445N
PLUG POWERLOCK 30A 480V 3P4W NYLON RD
Additional Description: AHWD-AHPL20445N Plug Powerlock 30A 480V 3P4W Nylon RD
Catalog Description: Eaton Arrow Hart locking plug , #12-4 AWG, 30A, Industrial, 480V, Back wiring, Red, white, Brass, Ultra grip, Non-NEMA, Three-pole, Four-wire, Nylon
AHPL20445N Item Features
- Arrow Hart power lock devices are designed for safety by utilizing a spring loaded shutter on connectors and receptacles to completely isolate energized contact
- Spring-loaded safety shutter automatically ejects the plug if it has not been properly locked into the female device (receptacle or connector) which eliminates teasing the contacts and insures long-lasting performance
- Spring-loaded safety shutter helps to contain and extinguish arcs if the devices are accidentally unmated under load, providing a quicker disconnect and higher degree of safety for the user
- Spring-loaded safety shutter prevents the entrance of foreign matter in the female contact chamber and provides an IP30 finger-safe rating
- Amperage/voltage and configuration clearly marked on the device for easy identification of device capabilities
AHPL20445N Standards
cULus ListedSKU #2466390Part Number #AHPL20445NUNSPSC39121403UPC00032664747410

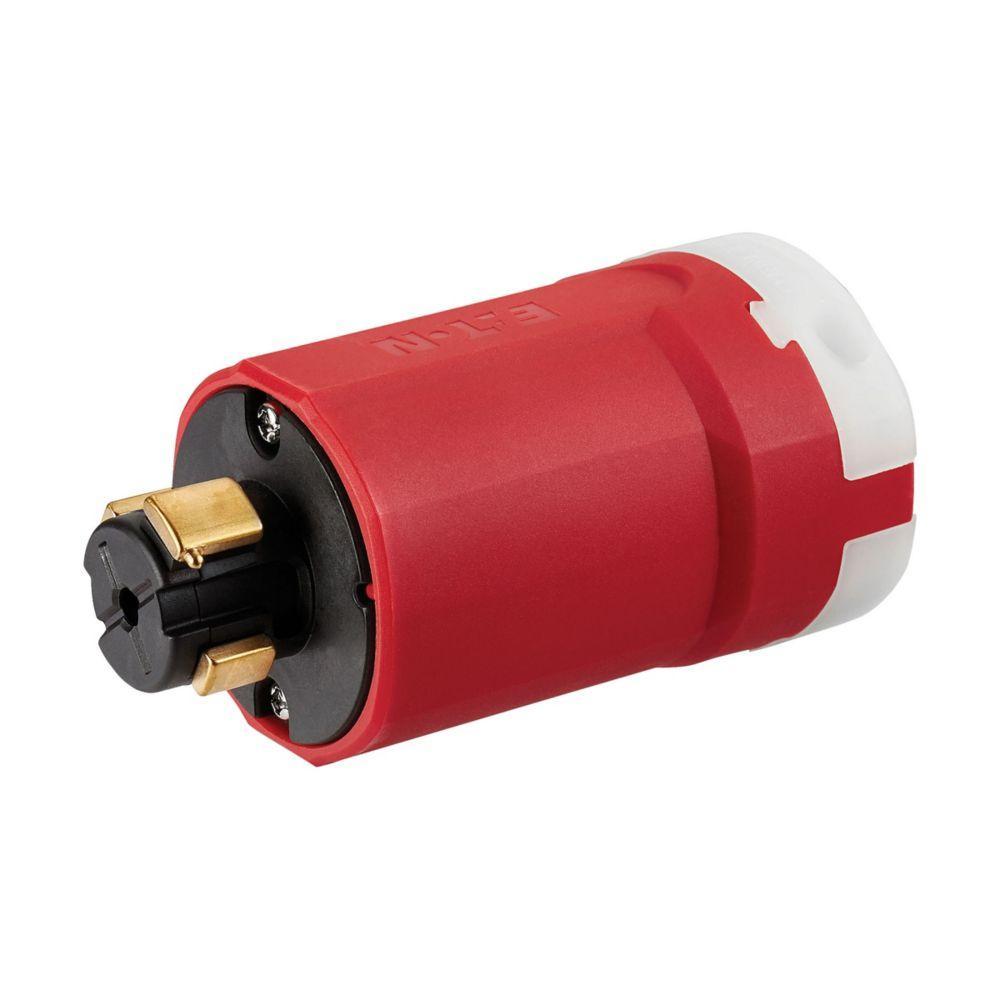

Image provided may only be a representation of final product and may include optional equipment
