Part Number # BR15LA
SKU # 2203744
BR15LA
Arrowhart BR15LA Cooper Wiring Straight Blade Receptacle
Part Number # BR15LA
SKU # 2203744
Arrowhart BR15LA Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | BR15LA |
| SKU #: | 2203744 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 4.19 in H x 0.82 in D |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -20 to 70, -20 to 70 deg C |
| Terminal Type: | Back/Side Wire, Back/Side Wired |
| Type: | Auto Grounding Duplex |
| Country of origin: | US |
| Material: | Nylon/PVC |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664583131 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart BR15LA Cooper Wiring Straight Blade Receptacle
Brand: Arrowhart
Part Number: BR15LA
Eaton Wiring Devices Arrow Hart Cooper Wiring Devices Straight Blade Receptacle, Auto Grounding Duplex, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -20 to 70 deg C, Back/Side Wire Terminal, Nylon/PVC, Light Almond, 4.19 in H x 0.82 in D Dimensions
Additional Description: AHWD-BR15LA Recp Duplex 15A 125V 2P3W B/Swire Str LA STR LA STR LA
Catalog Description: Eaton commercial specification grade duplex receptacle, #14 to 10 AWG, 15A, Commercial, Flush, 125V, Back and side, Light almond, Brass, High-impact nylon, PVC, 5-15R, Duplex, Screw, PVC, Core pack
BR15LA Application
Commercial ApplicationsBR15LA Item Features
- Galvanized steel wrap around yoke mounting strap for superior assembly security, extra length/width helps reach large panel cutouts for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper used
- Screw catch feature on device speeds mounting of wallplates
- Tamper resistant receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 and 20 A, 125 VAC receptacles installed in dwelling units must be tamper resistant
- Flush mounting
- Indoor environmental conditions
- Nylon face, PVC base
- https://www.youtube.com/watch?v=wVyZtLMLREA
BR15LA Standards
Federal Specification Classification 6233 01,NOM,ULSKU #2203744Part Number #BR15LAUNSPSC39121406UPC00032664583131

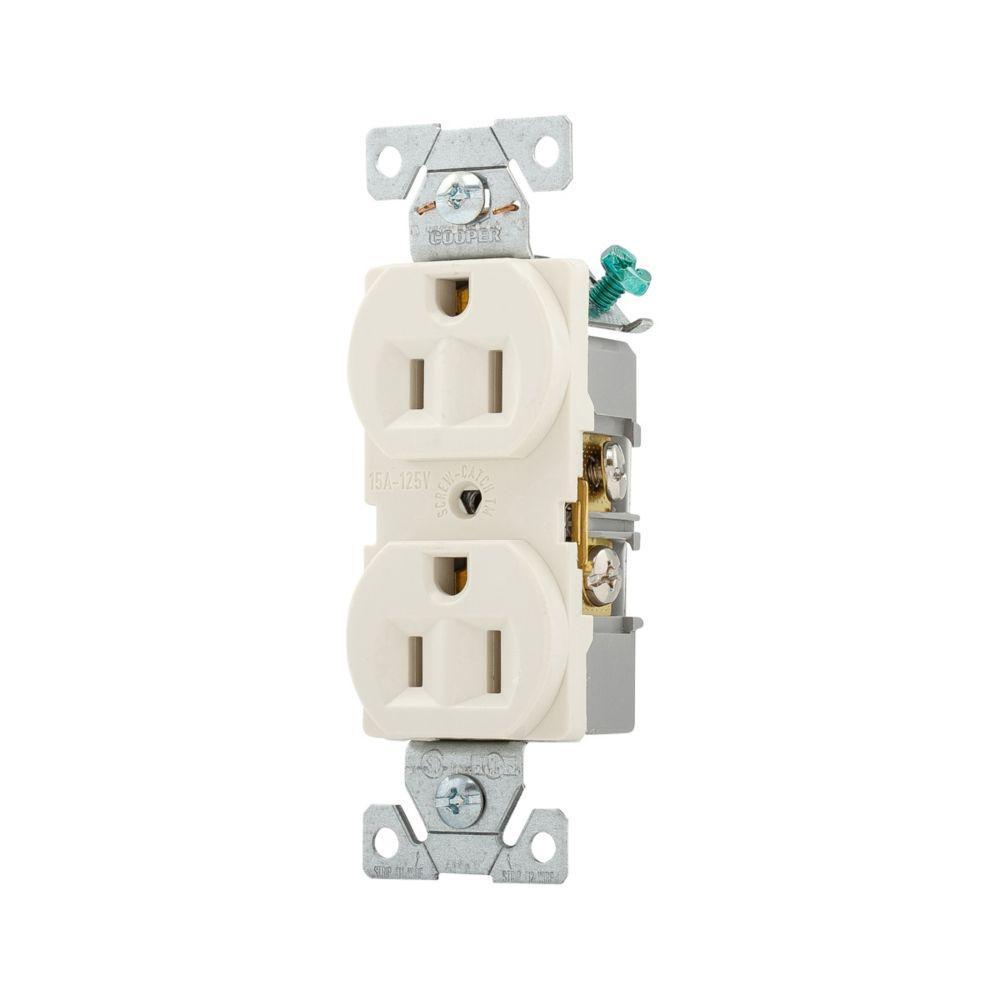

Image provided may only be a representation of final product and may include optional equipment
