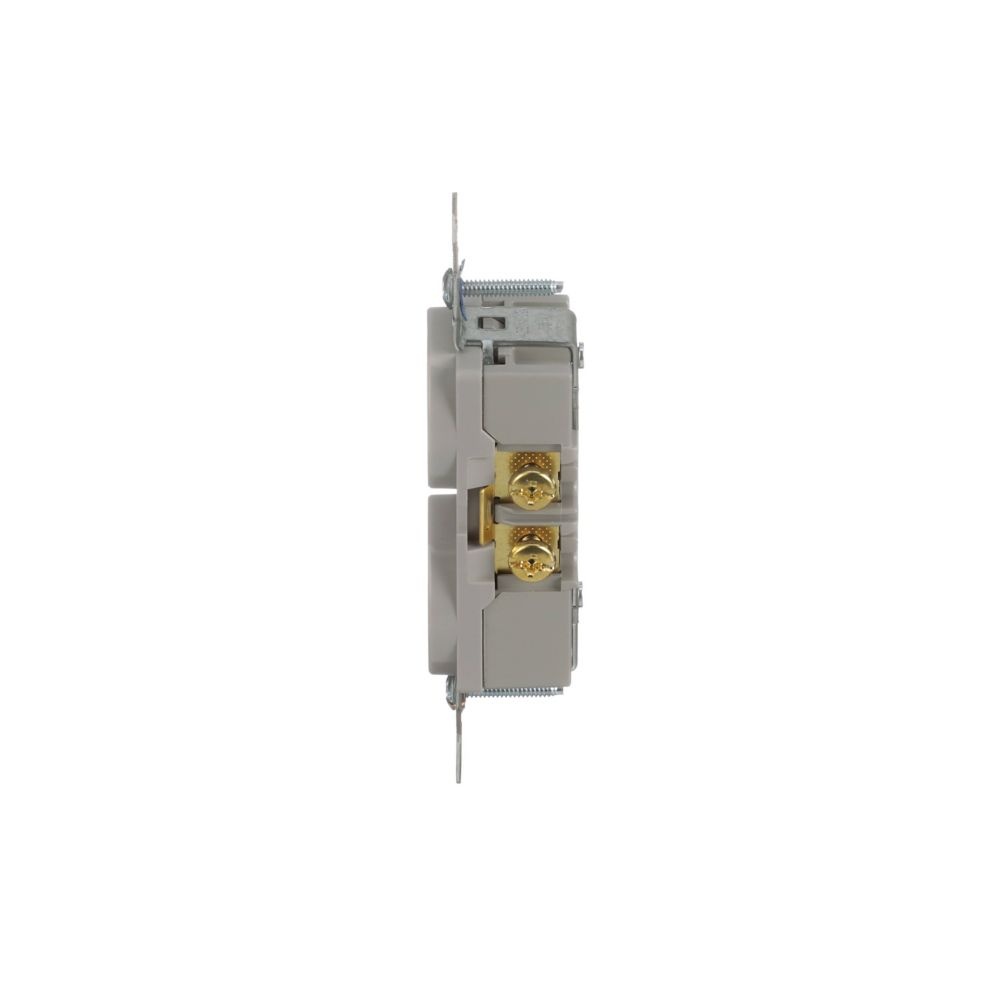

Arrowhart BR20GY Devices Straight Blade Receptacle
Part Number # BR20GY
SKU # 70900
$7.16 / Each
Arrowhart BR20GY Key Features
Brand: Arrowhart
Part Number # BR20GY
SKU #70900
Amperage Rating: 20, 20 A
Dimensions: 4.19 in H x 1.3 in W x 0.82 in D
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Series: BR20
Temperature Rating (Degrees F): -4 to 158, -4 to 158 deg F
Terminal Type: Back/Side Wired Screw, Screw
Type: Duplex Tamper-Resistant
Voltage Rating: 125, 125 VAC
Color: Gray
Country of origin: US
Material: Nylon/PVC
Manufacturer Name: Eaton
UNSPSC: 39121406
UPC: 00032664515118
$7.16 / Each
Arrowhart BR20GY Devices Straight Blade Receptacle
EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Duplex Tamper-Resistant, Series: BR20, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -4 to 158 deg F, Screw Terminal, Nylon/PVC, Gray, 4.19 in H x 1.3 in W x 0.82 in D Dimensions
Additional Description: AHWD-BR20GY Recp Duplex 20A 125V 2P3W Str B/Swire GY B/SWIRE GY B/SWIRE GY
Catalog Description: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Back and side, Gray, Brass, High-impact nylon, PVC, 5-20R, Duplex, Screw, PVC, Core pack
BR20GY Application
Indoor and Non-Residential ApplicationsBR20GY Item Features
- Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- Tamper-resistant receptacles provide compliance with 2014 NEC Article 406.12 that states that all 15 A and 20 A, 125 VAC receptacles installed in dwelling units must be tamper-resistant
- 2000 VAC dielectric strength
- Nylon face, PVC base
- Flush mounting
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
BR20GY Standards
cULus Listed|UL 498|UL File No. E15058|CSA C22.2 File No. 42|CSA File No. 6914|CSA File No. 6233 01|Federal Specification W-C-596G|NOM Certified|UL 94 V-2 Flammability RatedSKU #70900Part Number #BR20GYUNSPSC39121406UPC00032664515118
