Part Number # CR15B
SKU # 2309160
Image Disclaimers Message
Brand: Arrowhart
CR15B

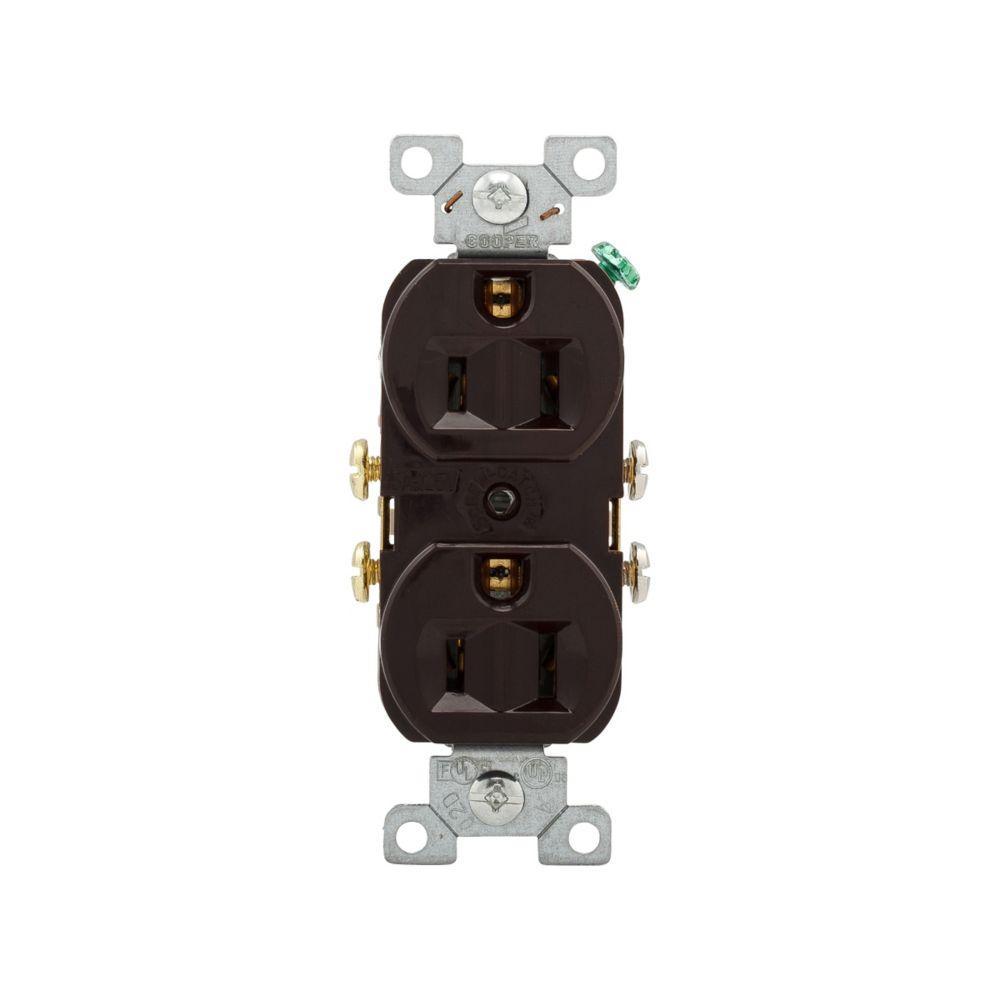

Arrowhart CR15B Devices Straight Blade Receptacle
Part Number # CR15B
SKU # 2309160
$527.00 / 100Each
Arrowhart CR15B Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | CR15B |
| SKU #: | 2309160 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 4.19 in H x 1.3 in W x 0.82 in D |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | CR15 |
| Temperature Rating (Degrees F): | -4 to 158, -4 to 158 deg F |
| Terminal Type: | Screw/Side Wired, Side Wire/Screw |
| Type: | Duplex, Duplex Tamper-Resistant |
| Color: | Brown |
| Material: | PVC |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664488900 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$527.00 / 100Each
Quantity:
- EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Duplex, Series: CR15, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -4 to 158 deg F, Side Wire/Screw Terminal, PVC, Brown, 4.19 in H x 1.3 in W x 0.82 in D Dimensions
CR15B Application
Non-Residential ApplicationsCR15B Item Features
- Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- Flush mounting
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
CR15B Standards
cULus Listed|UL 498|UL File No. E15058|Federal Specification W-C-596G|NOM 426 Certified|UL 94 V-2 Flammability RatedSKU #2309160Part Number #CR15BUNSPSC39121406UPC00032664488900
