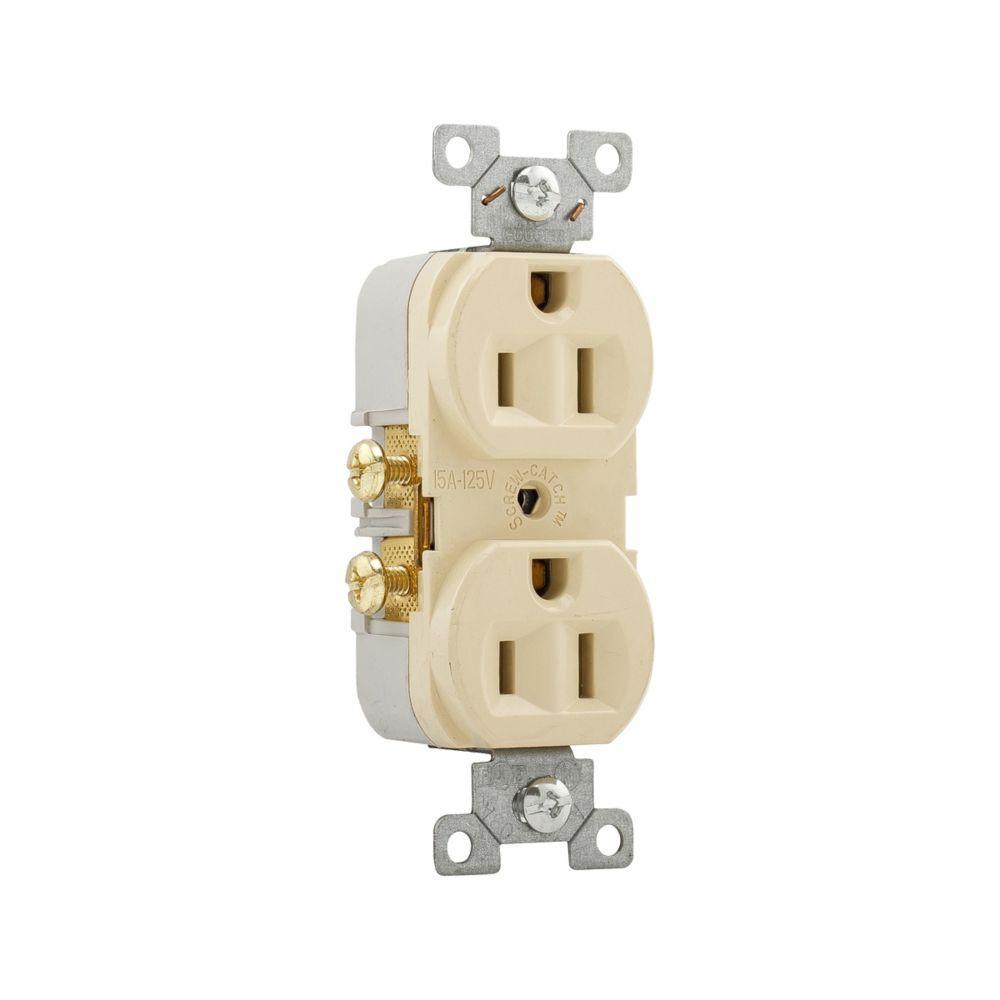

Arrowhart CR15V Devices Straight Blade Receptacle
Part Number # CR15V
SKU # 1735
$4.59 / Each
Arrowhart CR15V Key Features
Brand: Arrowhart
Part Number # CR15V
SKU #1735
Amperage Rating: 15, 15 A
Dimensions: 4.19 in H x 1.3 in W x 0.82 in D
NEMA Rating: NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Series: CR15
Temperature Rating (Degrees F): -4 to 158, -4 to 158 deg F
Terminal Type: Screw/Side Wired, Side Wire/Screw
Type: Duplex, Duplex Tamper-Resistant
Voltage Rating: 125, 125 VAC
Color: Ivory
Country of origin: US
Material: PVC
Manufacturer Name: Eaton
UNSPSC: 39121406
UPC: 00032664488986
$4.59 / Each
Arrowhart CR15V Devices Straight Blade Receptacle
EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Duplex, Series: CR15, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial Grade, -4 to 158 deg F, Side Wire/Screw Terminal, PVC, Ivory, 4.19 in H x 1.3 in W x 0.82 in D Dimensions
Additional Description: AHWD-CR15V Recp Duplex 15A 125V 2P3W Swire Str IV
Catalog Description: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 15A, Commercial, Flush, 125V, Side wire, Ivory, Brass, High-impact nylon, PVC, 5-15R, Duplex, Screw, PVC, Core pack
CR15V Application
Non-Residential ApplicationsCR15V Item Features
- Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- Flush mounting
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
CR15V Standards
cULus Listed|UL 498|UL File No. E15058|Federal Specification W-C-596G|NOM 426 Certified|UL 94 V-2 Flammability RatedSKU #1735Part Number #CR15VUNSPSC39121406UPC00032664488986
