Part Number # CR20B
SKU # 2287316

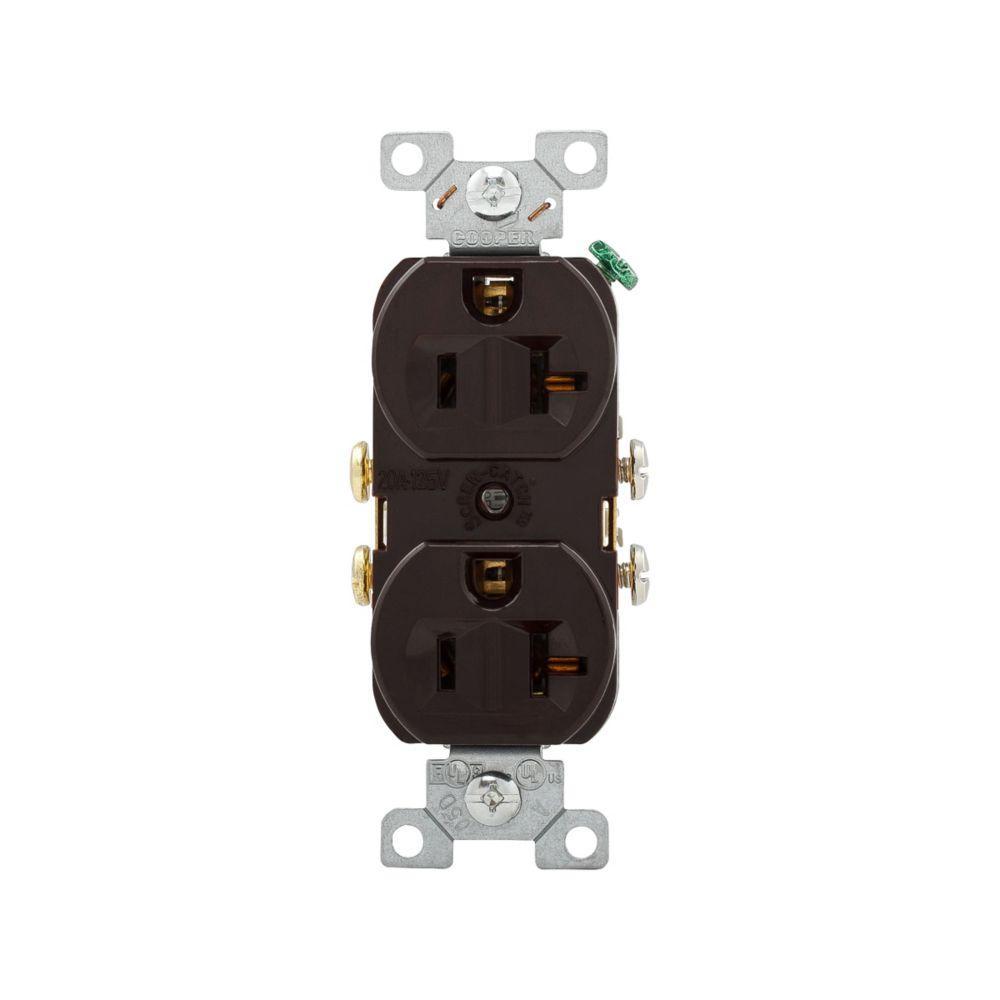

Image provided may only be a representation of
final product and may include optional equipment
CR20B
Arrowhart CR20B Devices Straight Blade Receptacle
Part Number # CR20B
SKU # 2287316
Arrowhart CR20B Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | CR20B |
| SKU #: | 2287316 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 4.19 in H x 1.3 in W x 0.82 in D |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | CR20 |
| Temperature Rating (Degrees F): | -4 to 158, -4 to 158 deg F |
| Terminal Type: | Screw/Side Wired, Side Wire/Screw |
| Type: | Duplex, Duplex Tamper-Resistant |
| Material: | PVC |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121406 |
| UPC: | 00032664489105 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart CR20B Devices Straight Blade Receptacle
Brand: Arrowhart
Part Number: CR20B
EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Duplex, Series: CR20, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -4 to 158 deg F, Side Wire/Screw Terminal, PVC, Brown, 4.19 in H x 1.3 in W x 0.82 in D Dimensions
Additional Description: AHWD-CR20B Recp Duplex 20A 125V 2P3W Str Swire BR
Catalog Description: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, Brown, Brass, High-impact nylon, PVC, 5-20R, Duplex, Screw, PVC, Core pack
CR20B Application
Non-Residential ApplicationsCR20B Item Features
- Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- Flush mounting
- 14 to 10 AWG wire terminal
- https://www.youtube.com/watch?v=wVyZtLMLREA
CR20B Standards
Federal Specification Classification 6233 01,cULus Listed,NOM,RoHS CompliantSKU #2287316Part Number #CR20BUNSPSC39121406UPC00032664489105
