Part Number # CR20W
SKU # 2287974
CR20W

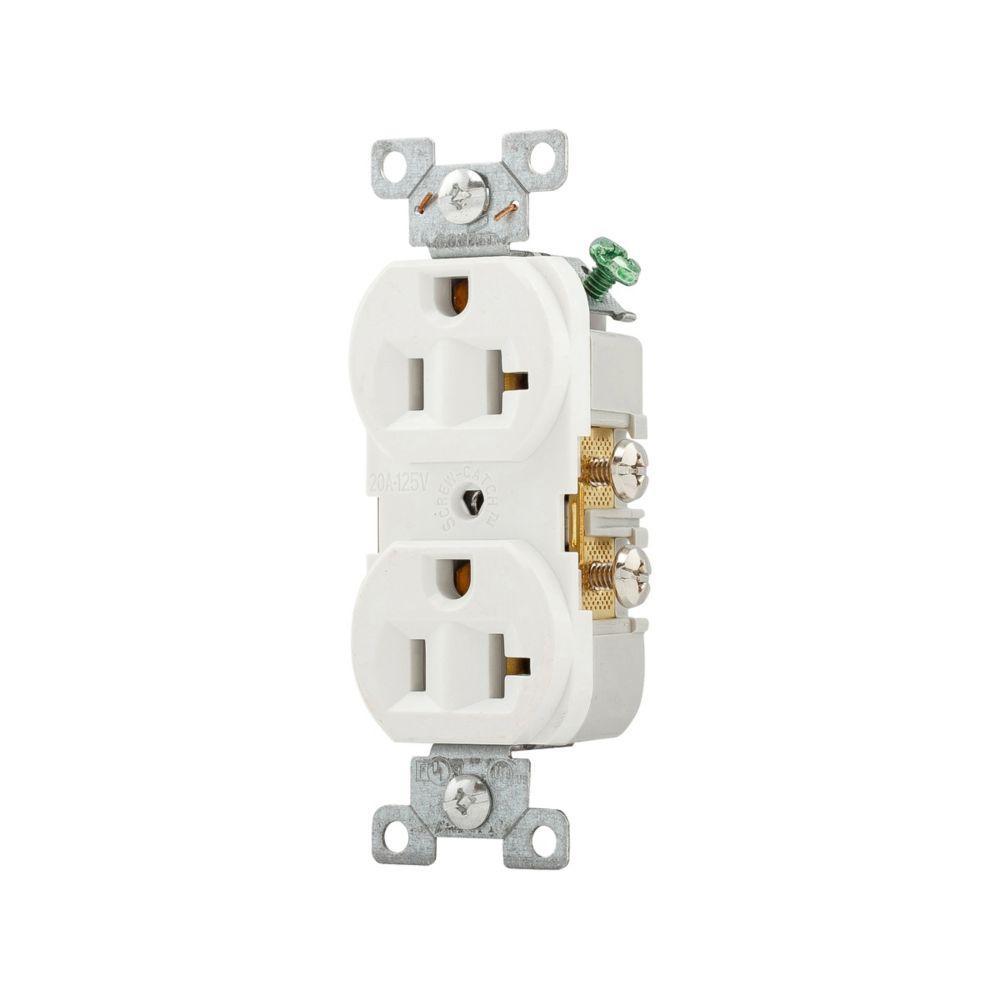

Arrowhart CR20W Devices Straight Blade Receptacle
Part Number # CR20W
SKU # 2287974
Arrowhart CR20W Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | CR20W |
| SKU #: | 2287974 |
| Dimensions: | 4.19 in H x 0.82 in D |
| UNSPSC: | 39121406 |
| UPC: | 00032664489235 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart CR20W Devices Straight Blade Receptacle
Brand: Arrowhart
Part Number: CR20W
EATON Arrow Hart Eaton Wiring Devices Straight Blade Receptacle, Duplex, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -20 to 70 deg C, Side Wire/Screw Terminal, PVC, White, 4.19 in H x 0.82 in D Dimensions
Additional Description: AHWD-CR20W Recp Duplex 20A 125V 2P3W Str Swire WH
Catalog Description: Eaton commercial specification grade duplex receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, White, Brass, High-impact nylon, PVC, 5-20R, Duplex, Screw, PVC, Core pack
CR20W Application
Non-Residential ApplicationsCR20W Item Features
- Galvanized steel, wraparound yoke mounting strap for superior assembly security, extra length/width helps reach large panel cut-outs for code compliance
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Screw catch feature on duplex devices speeds mounting of wallplates
- https://www.youtube.com/watch?v=wVyZtLMLREA
CR20W Standards
cULus Listed,Federal Specification Classification 6233 01,NOM,RoHS CompliantSKU #2287974Part Number #CR20WUNSPSC39121406UPC00032664489235
Image provided may only be a representation of final product and may include optional equipment
