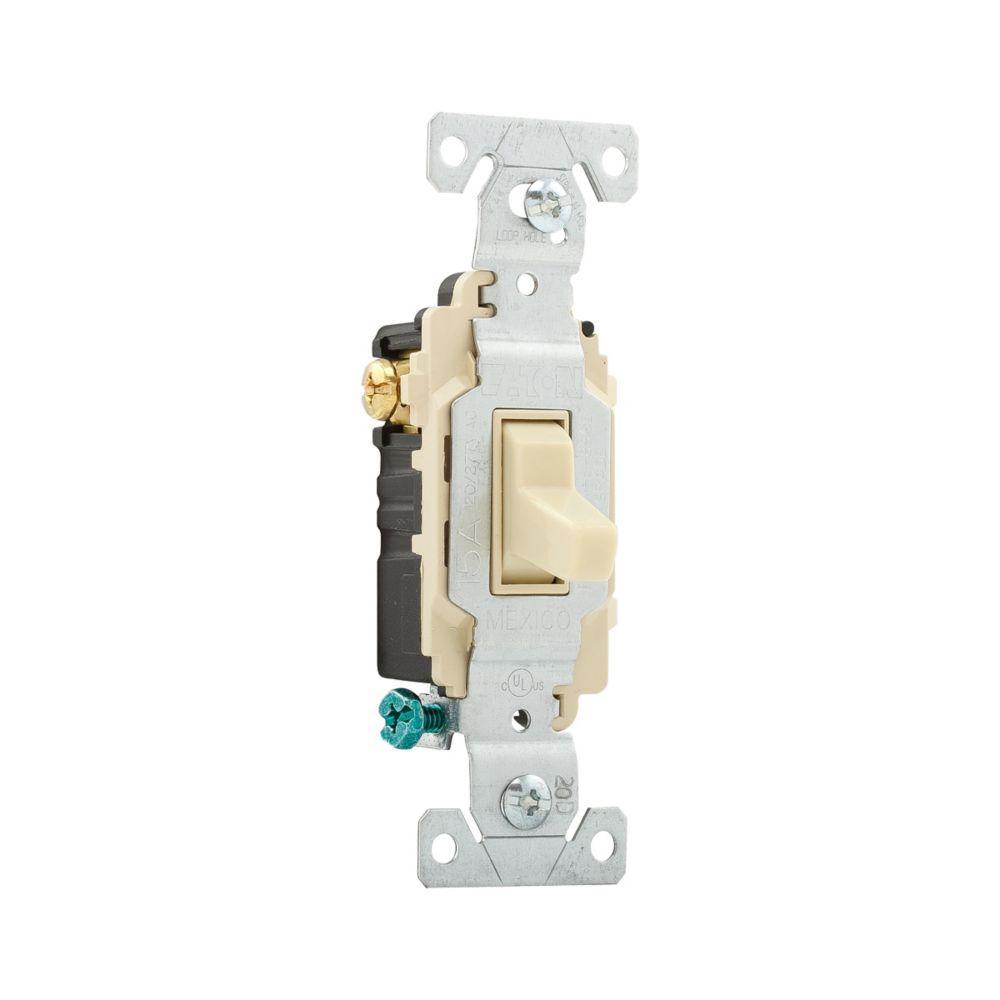

Arrowhart CSB315V Devices AC Toggle Switch
Part Number # CSB315V
SKU # 1335385
$545.46 / 50Each
Arrowhart CSB315V Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | CSB315V |
| SKU #: | 1335385 |
| Actuator: | Toggle |
| Amperage Rating: | 15, 15 A |
| Contact Rating: | 15 A at 120/277 V AC, 15 A at 120/277 VAC |
| Dimensions: | 1.31 in W x 1.05 in D |
| Environmental Conditions: | -20 to 60 deg C Operating Temperature |
| Mounting: | Wall |
| Number of Poles: | 1 |
| Operating Cycles: | 50000, 50000 cycles |
| Series: | CS Series |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | 3-Way Specification Grade |
| Color: | Ivory |
| Material: | PVC |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39122211 |
| UPC: | 00032664558979 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$545.46 / 50Each
Quantity:
- EATON Arrow Hart Toggle Switch, 3-Way Specification Grade, Series: CS Series, 120/277 V, 15 A, 1/2 hp, 2 hp Power, 15 A at 120/277 V AC Contact, 1 Pole, Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, PVC, Ivory, Environmental Conditions: -20 to 60 deg C Operating Temperature, 1.31 in W x 1.05 in D Dimensions
CSB315V Application
Commercial, Institutional Buildings, Structures - Fluorescent Lighting Fixtures, Commercial and Non-Residential ApplicationsCSB315V Item Features
- Patent pending spring cup toggle design for robust actuation
- Terminals accept up to 10 AWG solid or stranded wire
- 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications
- Terminal screws are backed out and ready to wire
- Tri-combo head mounting and terminal screws ease installation
- 14 to 10 AWG terminal accommodation
- Tapered lead-in slots on back wiring holes assist in gathering stranded wires for faster, more secure connections
- 2.38 in L screw to screw
- Nylon toggle
CSB315V Standards
NOM,cULus Listed,Federal Specification Classification 6241 05SKU #1335385Part Number #CSB315VUNSPSC39122211UPC00032664558979
