Part Number # CWL1220R
SKU # 2206251
CWL1220R

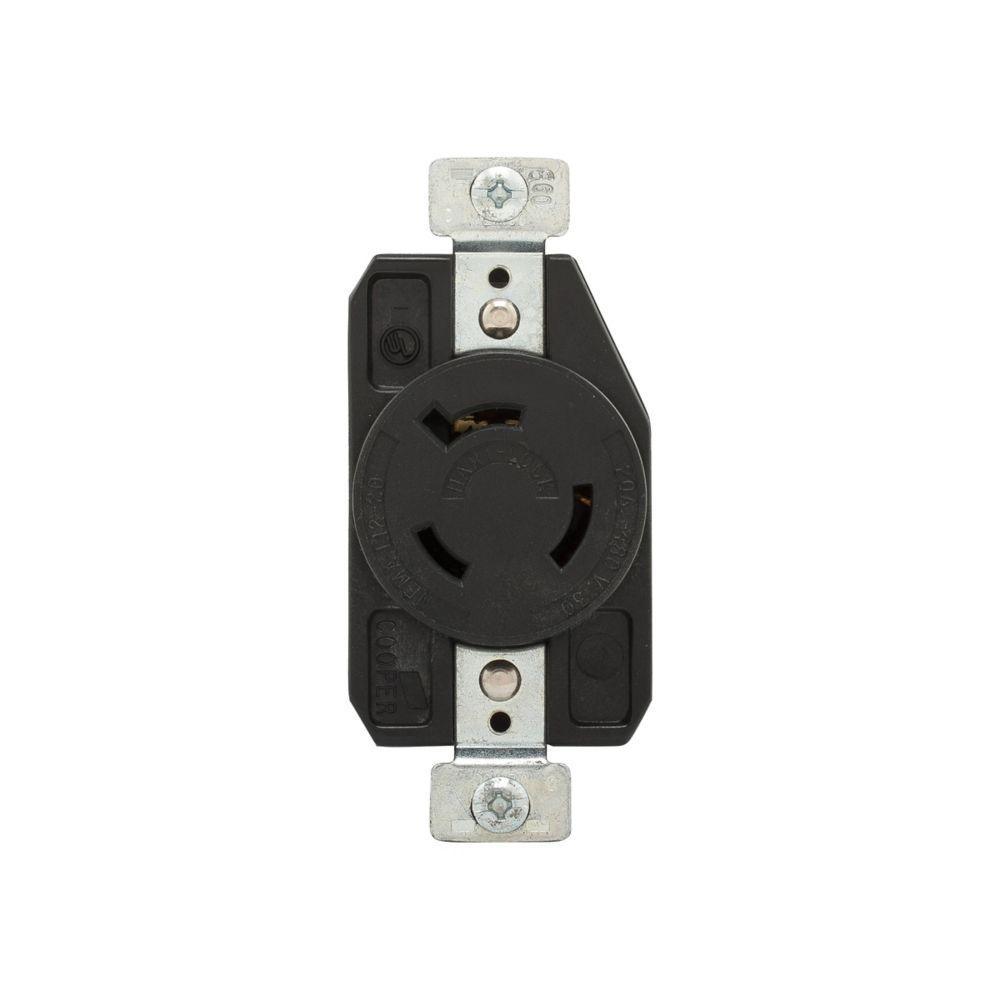

Arrowhart CWL1220R Devices Locking Receptacle
Part Number # CWL1220R
SKU # 2206251
Arrowhart CWL1220R Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | CWL1220R |
| SKU #: | 2206251 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 1.56 in L x 1.06 in W x 3.64 in H |
| NEMA Rating: | NEMA L12-20 |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60, -40 to 60 deg C |
| Terminal Type: | Back/Side Wire/Screw, Back/Side Wired Screw |
| Type: | 3-Phase Auto-Grip Single, 3-Phase Single |
| Material: | Glass Filled Nylon |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121403 |
| UPC: | 00040893677316 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart CWL1220R Devices Locking Receptacle
Brand: Arrowhart
Part Number: CWL1220R
EATON Locking Receptacle, 3-Phase Auto-Grip Single, 480 VAC, 20 A, 3 Pole, 3 Wires, NEMA L12-20 NEMA Rating, Industrial Grade, -40 to 60 deg C, Back/Side Wire/Screw Terminal, Glass Filled Nylon, Black, 1.56 in L x 1.06 in W x 3.64 in H Dimensions
Additional Description: AHWD-CWL1220R Recp Sgl 20A 480V 3PH 3P3W H/L BK
Catalog Description: Eaton auto grip locking receptacle, #14-8 AWG, 20A, Industrial, 480V, Back and side wiring, Black, Single, L12-20, Three-pole, Three-wire, Glass-filled nylon, -40° to 60°C
CWL1220R Application
For locking device applicationsCWL1220R Item Features
- 14 to 8 AWG wire
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
CWL1220R Standards
UL Listed,NAFTA,RoHS CompliantSKU #2206251Part Number #CWL1220RUNSPSC39121403UPC00040893677316
Image provided may only be a representation of final product and may include optional equipment
