Part Number # CWL515FI
SKU # 2252665

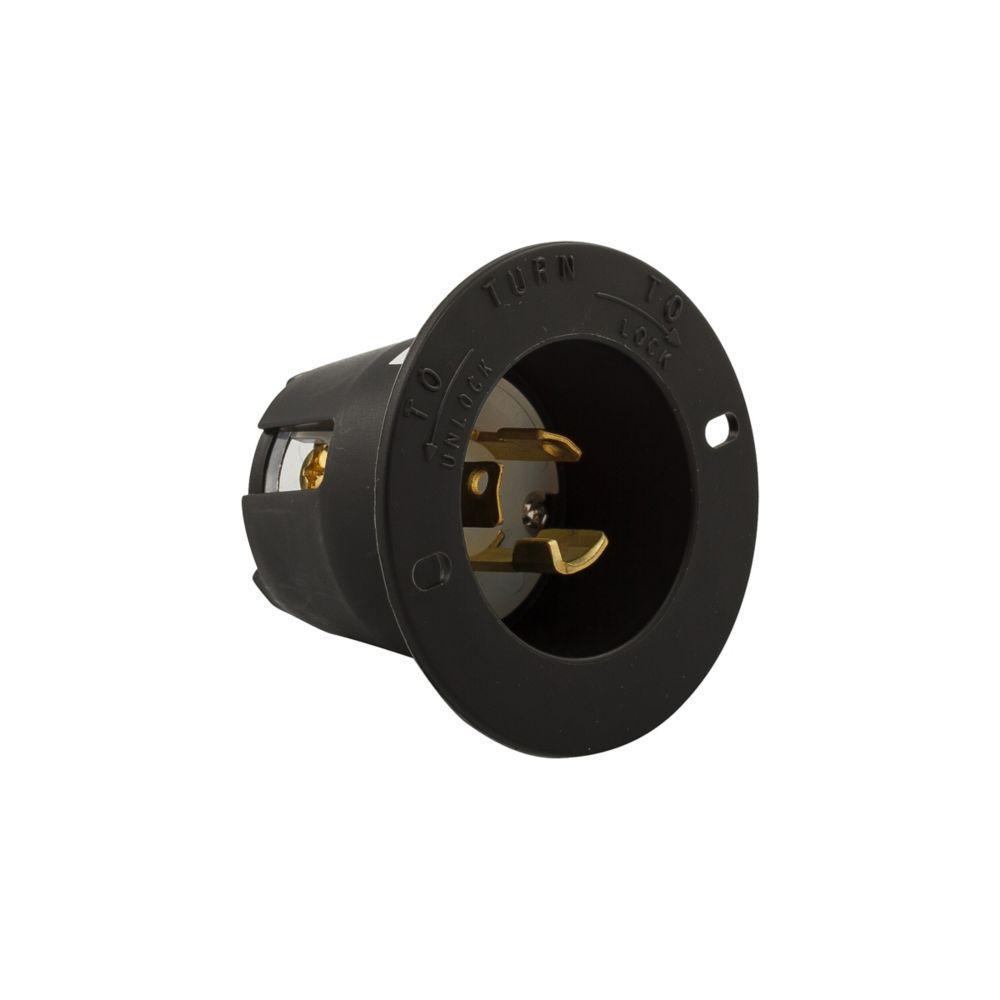

Image provided may only be a representation of
final product and may include optional equipment
CWL515FI
Arrowhart CWL515FI Devices Locking Flanged Inlet
Part Number # CWL515FI
SKU # 2252665
Arrowhart CWL515FI Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | CWL515FI |
| SKU #: | 2252665 |
| Amperage Rating: | 15, 15 A |
| Cord Diameter: | 0.33 to 0.66, 0.33 to 0.66 in |
| Dimensions: | 2.56 in Dia x 1.84 in H |
| NEMA Rating: | NEMA L5-15 |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back Wire/Screw, Back/Side Wired/Screw |
| Type: | Grounding |
| Material: | Nylon/Polycarbonate |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121403 |
| UPC: | 00040893680361 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart CWL515FI Devices Locking Flanged Inlet
Brand: Arrowhart
Part Number: CWL515FI
EATON Arrow Hart Safety Grip Eaton Wiring Devices Locking Flanged Inlet, Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15 NEMA Rating, Industrial Grade, 0.33 to 0.66 in Diameter Cord, -40 to 75 deg C, Back Wire/Screw Terminal, Nylon/Polycarbonate, Black/White, 2.56 in Dia x 1.84 in H Dimensions
Additional Description: AHWD-CWL515FI Flanged Inlet 15A 125V 2P3W H/L BW BW
Catalog Description: Eaton safety grip locking flanged inlet, #14-8 AWG, 15A, Industrial, 125V, Back wiring, Black, white, L5-15, Two-pole, Three-wire, Nylon, -40° to 75°C
CWL515FI Application
For locking device applicationsCWL515FI Item Features
- Mounting holes interchangeable with competitive units
- Back wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Nylon outer shell/interior body, polycarbonate terminal retainer
- 14 to 8 AWG wire
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
CWL515FI Standards
cULus Listed,CSA certified,Federal Specification Classification W-C-596F,RoHS CompliantSKU #2252665Part Number #CWL515FIUNSPSC39121403UPC00040893680361
