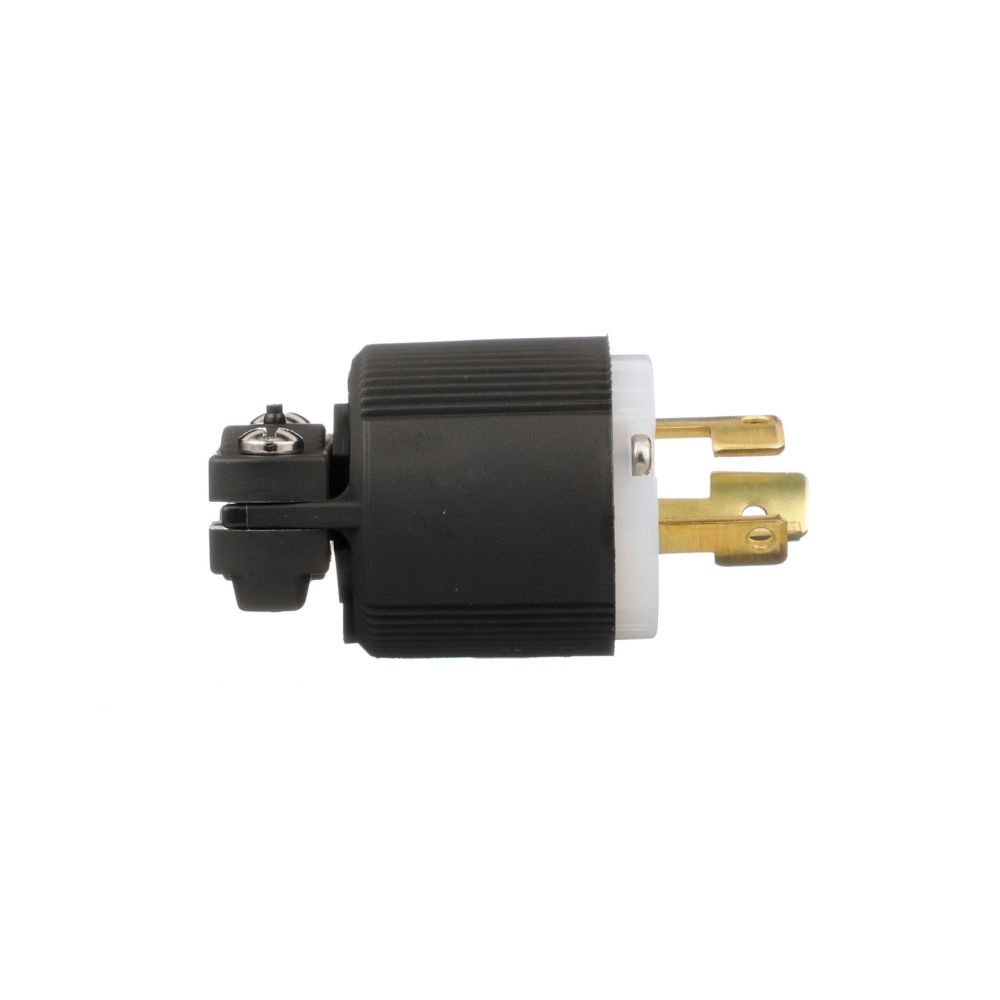

Arrowhart CWL515P Devices Locking Plug
Part Number # CWL515P
SKU # 1566
$28.49 / Each
Arrowhart CWL515P Key Features
Brand: Arrowhart
Part Number # CWL515P
SKU #1566
Amperage Rating: 15, 15 A
Cord Diameter: 0.25 to 0.656, 0.33 to 0.66, 0.33 to 0.66 in
Dimensions: 1-1/2 in Dia, 1.5 in Dia x 2.06 in L
NEMA Rating: NEMA L5-15, NEMA L5-15P
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 60, -40 to 60 deg C, -40 to 75
Terminal Type: Back/Side Wire/Screw, Clamp, Screw/Side Wired
Type: Grounding, Straight
Voltage Rating: 125, 125 VAC
Color: Black/White
Country of origin: MX
Material: Nylon
Manufacturer Name: Eaton
UNSPSC: 39121403
UPC: 00040893677989
$28.49 / Each
- EATON Arrow Hart Eaton Wiring Devices Hart-Lock Safety Grip Locking Plug, Straight, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA L5-15 NEMA Rating, Industrial Grade, 0.33 to 0.66 in Diameter Cord, -40 to 60 deg C, Back/Side Wire/Screw Terminal, Nylon, Black/White, 1.5 in Dia x 2.06 in L Dimensions
CWL515P Application
For locking device applicationsCWL515P Item Features
- EPDM gasket seals cord hole from dust and debris
- Back wire terminal clamps for easy secure wiring
- Individual wiring compartments with tapered channel for easy insertion of wires
- Clear cover over wiring compartments allow easy inspection of wiring terminations
- Nylon outer shell/interior body, polycarbonate terminal retainer
- Dual range cord grip for solid cord clamping
- 16 to 12 AWG wire
- https://www.youtube.com/watch?v=KpgaUWB9c-8&list=PL8XobqCtN9Z_vk5RB13E_5jFtJ4XSQDoP
CWL515P Standards
cULus Listed|NAFTA CompliantSKU #1566Part Number #CWL515PUNSPSC39121403UPC00040893677989
