Part Number # L1020CW
SKU # 2231044
Image Disclaimers Message
L1020CW

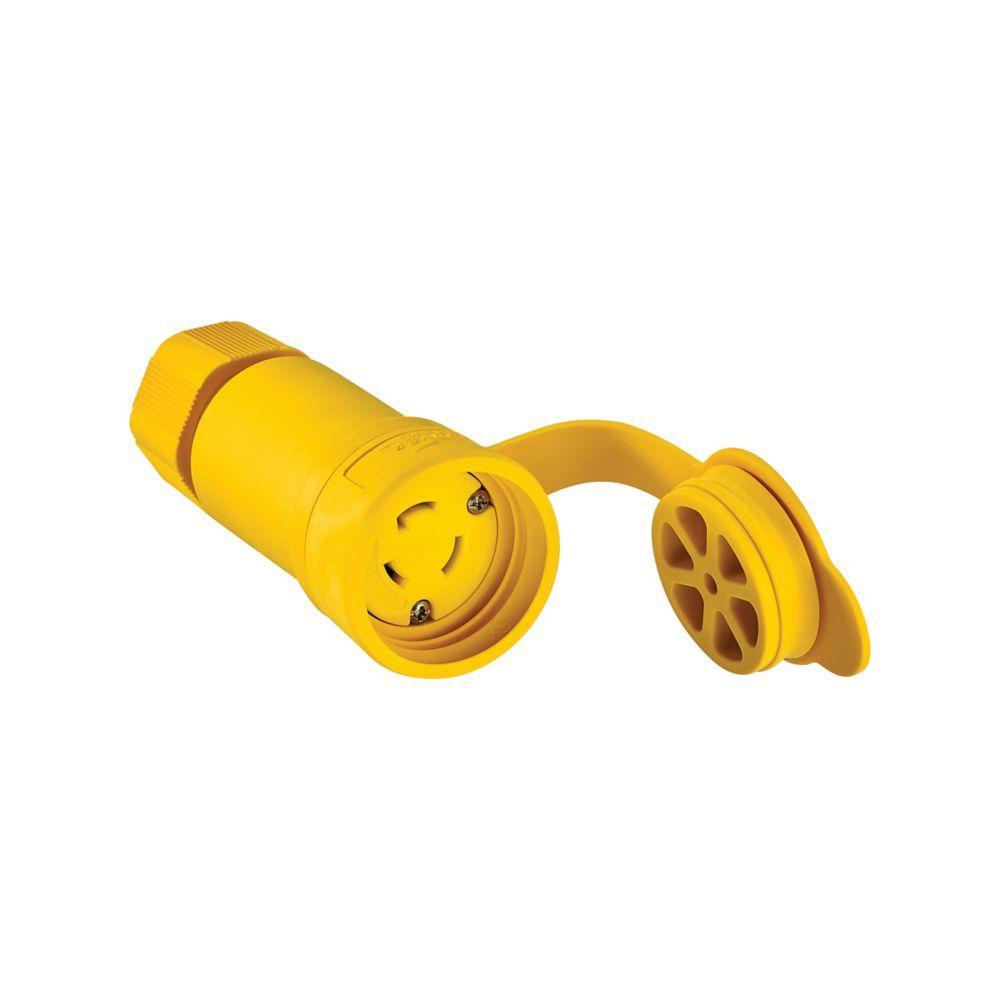

Arrowhart L1020CW Connector
Part Number # L1020CW
SKU # 2231044
Arrowhart L1020CW Key Features
| Brand: | Arrowhart |
|---|---|
| Part Number # : | L1020CW |
| SKU #: | 2231044 |
| Amperage Rating: | 20, 20 A |
| Cord Diameter: | 0.43 to 1.15, 0.43 to 1.15 in |
| Dimensions: | 0.85 in L x 4.37 in W x 3.86 in H |
| NEMA Rating: | L10 to 20 |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Terminal Type: | Back Wire, Back Wired |
| Type: | Locking |
| Color: | Yellow |
| Material: | Santoprene Thermoplastic Elastomeric |
| Manufacturer Name: | Eaton |
| UNSPSC: | 39121403 |
| UPC: | 00040893641935 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Arrowhart L1020CW Connector
Brand: Arrowhart
Part Number: L1020CW
EATON Arrow Hart Hart-Lock Connector, Locking, 125/250 V, 20 A, 3 Pole, 3 Wires, L10 to 20 NEMA Rating, Industrial Grade, 0.43 to 1.15 in Diameter Cord, Back Wire Terminal, Santoprene Thermoplastic Elastomeric, Yellow, 0.85 in L x 4.37 in W x 3.86 in H Dimensions
Additional Description: AHWD-L1020CW Conn WT 20A 125/250V 3P3W H/L YL
Catalog Description: Eaton Arrow Hart watertight locking connector, #18-10 AWG, 20A, Industrial, 125/250V, Back wiring, Yellow, Steel, Watertight, L10-20, Three-pole, Three-wire, non-grounding, Santoprene thermoplastic elastomeric, 0.43 to 1.15 in, IP67
L1020CW Application
Industrial ApplicationsL1020CW Item Features
- Santoprene thermoplastic elastomeric over polypropylene outer shell, nylon interior body
- Steel contact
- 18 to 10 AWG wire
- https://www.youtube.com/watch?v=excGsJitwBc
L1020CW Standards
cULus Listed|NAFTA CompliantSKU #2231044Part Number #L1020CWUNSPSC39121403UPC00040893641935
